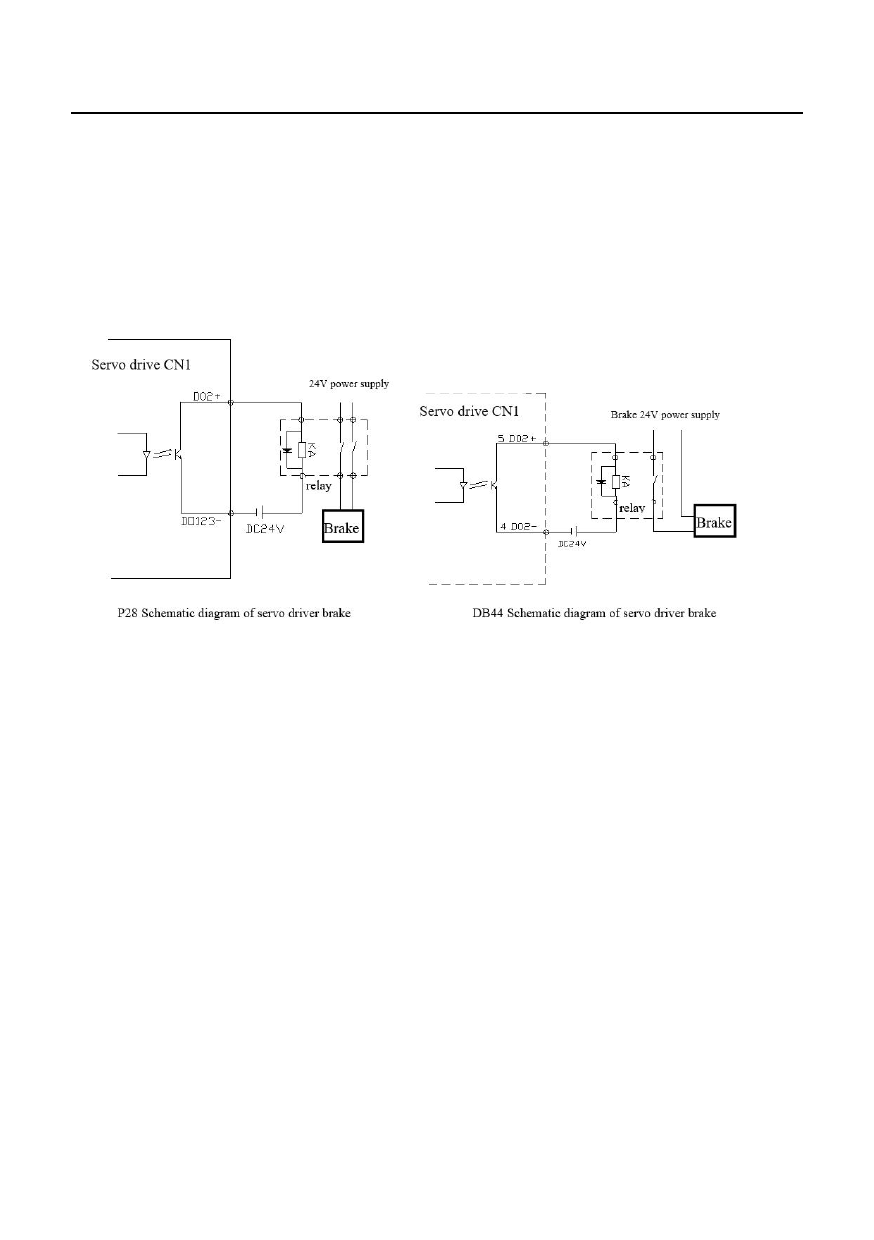

3.2. 5 Schematic diagram of control connection of band
brake
Note: 1. DO 2+/D123-in CN1 controls the relay coil for the factory contracting brake function of P28 driver,
and the relay switch controls the contracting brake coil.
2. DB44 driver factory contracting brake function is controlled byDO2(pin 5 and pin 4) in CN1, and
relay switch controls contracting brake coil.
3. It is recommended that the contracting brake coil be powered by a separate power supply.
