3.1.2JAND-DB44 Series Drive Port Distribution

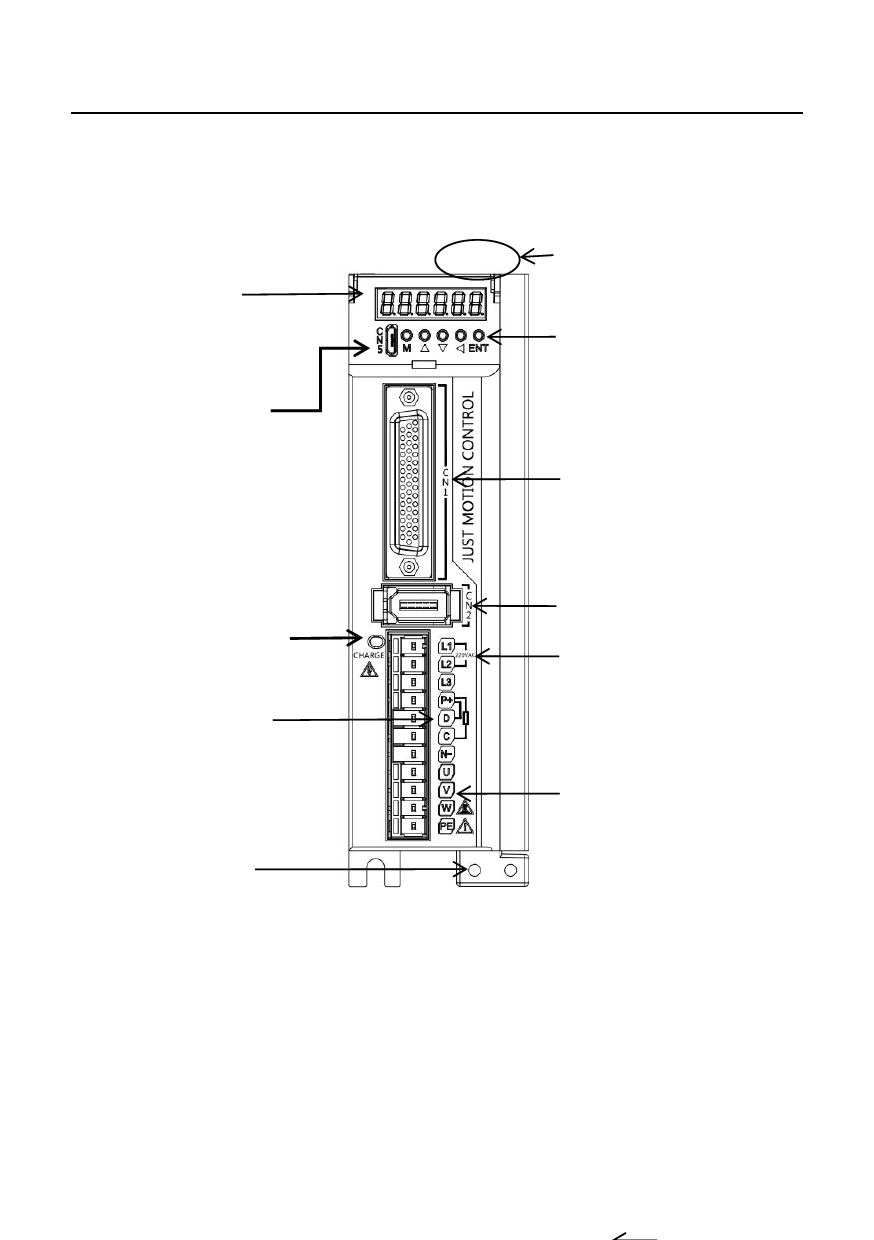

Panel LED display
Display servo driver status,
alarm number, parameters, etc.
PC debug port (CN5)
RS232 communication
CHARGEindicator
If the indicator light is
on, there is high voltage
inside the drive. Do not touch
the inside of the drive
Regenerative resistor
connection port
When an external resistor is
used, the external resistor
P, C
Earth protection screw
To prevent electric shock, be
sure to connect
485 communication port
(CN3/4)
Panel operation button
Set Parameter Usage
Output signal terminal
(CN1)
Encoder connection
terminal (CN2)
Main circuit and control
power supply port (L1,L2)
Single phase 220VAC power
input
Power line port
According to power line U, V, W,
PE mark
