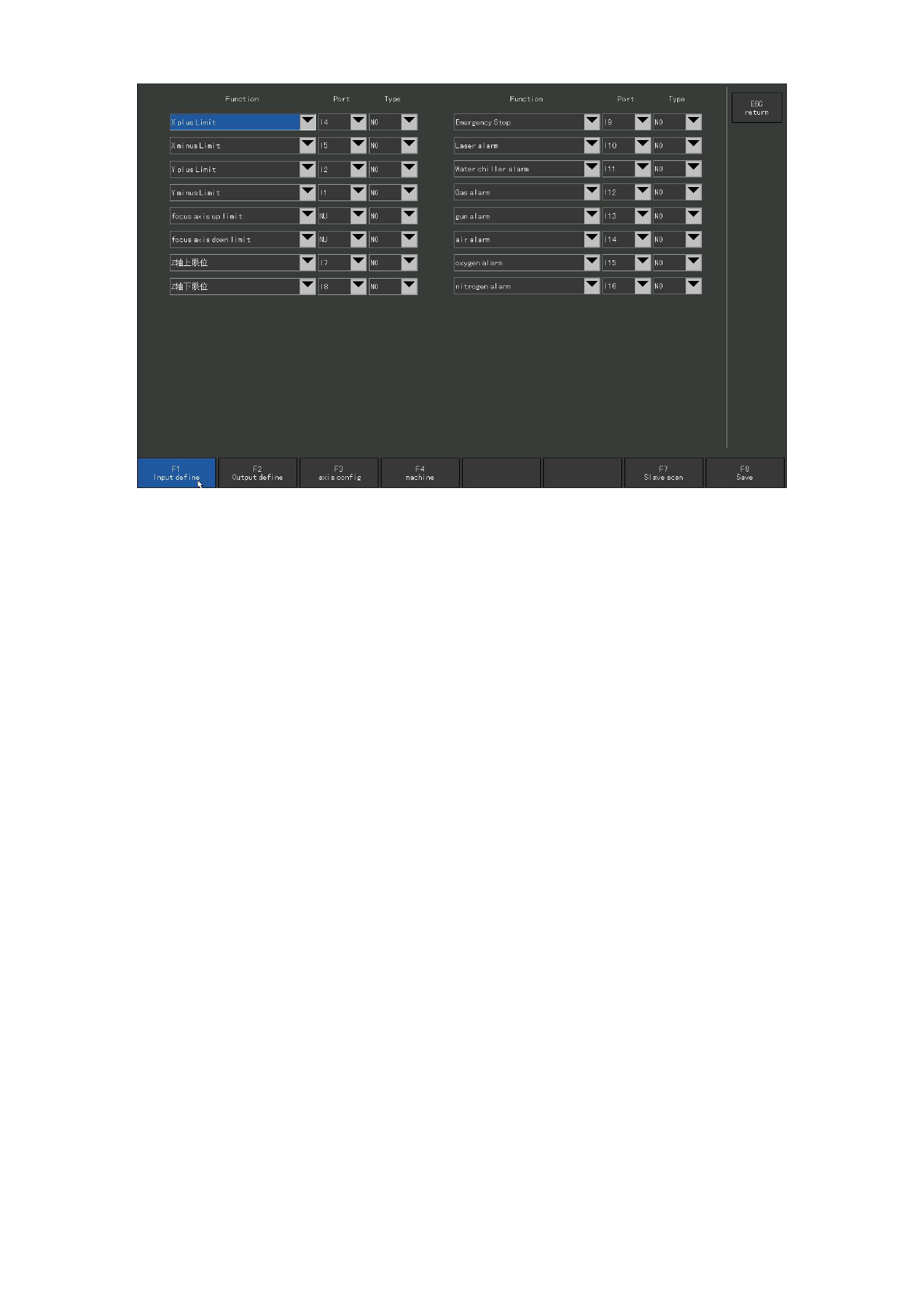

Figure 11.1 Input port definition
11.2 Definition of the output port
The controller can change the definition of the output IO port according to the
needs of the user, including changing the serial number of the changed IO port on the
output terminal and the NO or NC type of the output port. As shown in Figure 8.15.
Under this interface, press [↑], [↓], [←] and [→] on the operation panel to move
the cursor to the place to change, position the cursor to the option to change, and press
[Enter] to open the tab of the drop-down box where the cursor is located. Move the cursor
[↑], [↓] and press [Enter] to set the selected parameters again.
The output port type is the triode leakage output type.
Type is NO, indicating that the output signal is normally open (the output effective
level is low level). Type is NC, indicating that the output signal is normally closed
(the output effective level is the high level).
