Maximum pressure of proportional valve: set the maximum output
pressure value of proportional valve.
DA voltage range: 0~5V and 0~10V can be set according to the analog
volume range of the proportional valve used.
DA output of proportional valve: set the output port number of the
solenoid for control air.
Pressure correction: correct the gas with DA output.
DA gas correction can be performed only with the gas with DA output port. Click
the [Gas Correction] button, and the interface shown in the figure below will pop
up. Set different DA output voltages, measure the actual air pressure of the output
in turn, and fill in the measured results in the table. During the cutting process,
the corresponding DA voltage will be output according to the required air pressure
value. If the required air pressure is not in the table, it will be obtained according
to the linear relationship.
11 . 4.4 Speed planning and configuration
Reasonable setting of parameters in the speed planning configuration can
effectively improve the cutting
accuracy.

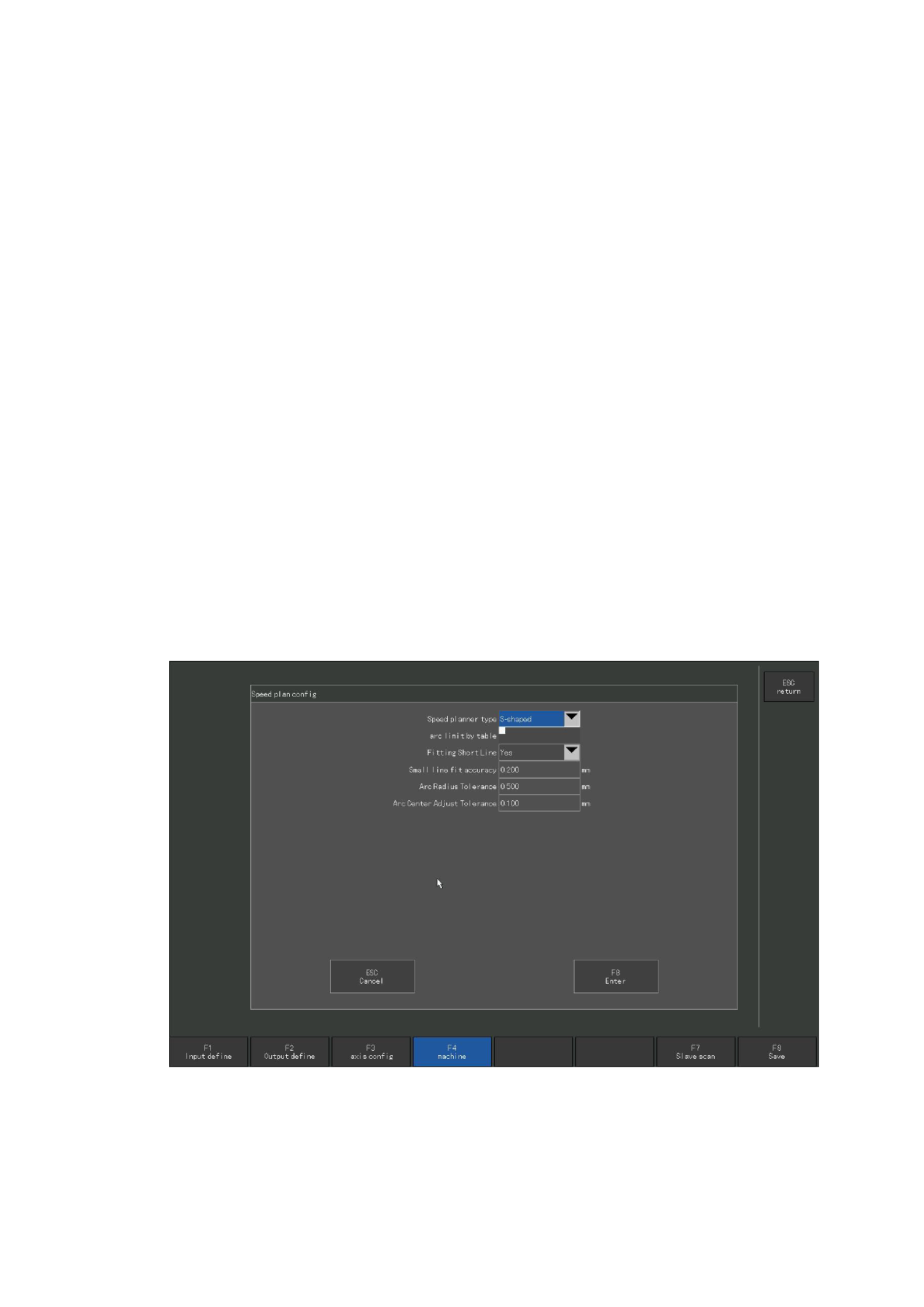

Figure 11.8 Speed Planning and Distribution
