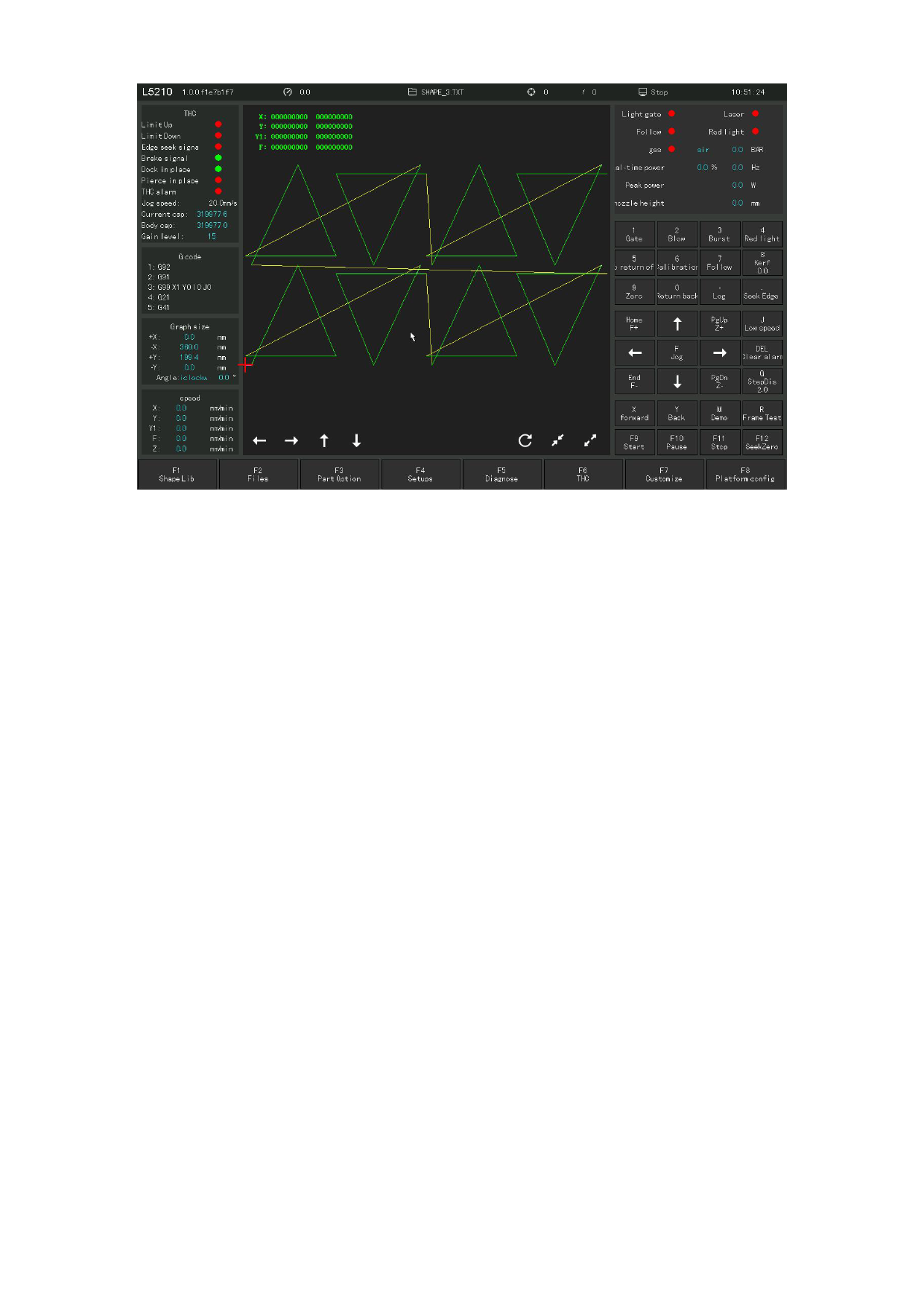

Figure 4.1 2 Vertical arrangement effect
Note: stagger array is mainly used in figures suitable for inter-arrangement, such
as triangle, trapezoid, etc. The stagger array is first to rotate the current figure
in the center 180 degrees, and then the original figure and the rotated figure,
inserted arrangement, combined into a new figure. Then put the new graph combined
after the matrix arrangement.
parameter declaration:
Number of rows: two graphs are combined into a graph in a centrosymmetric
way, the number of rows of combined graphic to be arranged.
Number of columns: two graphs are combined into a graph in a centrosymmetric
way, the number of columns of combined graphic to be arranged..
Line spacing: Two graphs are combined into a graph in a centrosymmetric way,
the space of line array of the combined graphic.
Column spacing: Two graphs are combined into a graph in a centrosymmetric way,
the space of column array of the combined graphic.
Line nest: the distance between the center Y direction in a centrosymmetric
manner. This parameter can be of negative values.
