Chapter 1 Introduction of Type L5210H
control system
1.1 Introduction to the system
L5210H Type CNC system is in the company to absorb the advantages of many
domestic and foreign CNC system developed by a more powerful, more convenient
operation, more cost-effective products. The product uses three axis digital position control
mode, is suitable for laser plane cutting machine.
The control system is light and portable, easy to operate, easy to use, all
operations with menu or graphic prompts. All the key switch humanized design,
comfortable and convenient.
The L5210H controller adopts high-performance ARM chip and super-large scale
programmable device FPGA to run the multi-task real-time operating system, and adopts
the combination of software interpolation and hardware interpolation, so as to make the
high-speed operation more stable, reliable and rapid response.
The CNC system style is as follows:

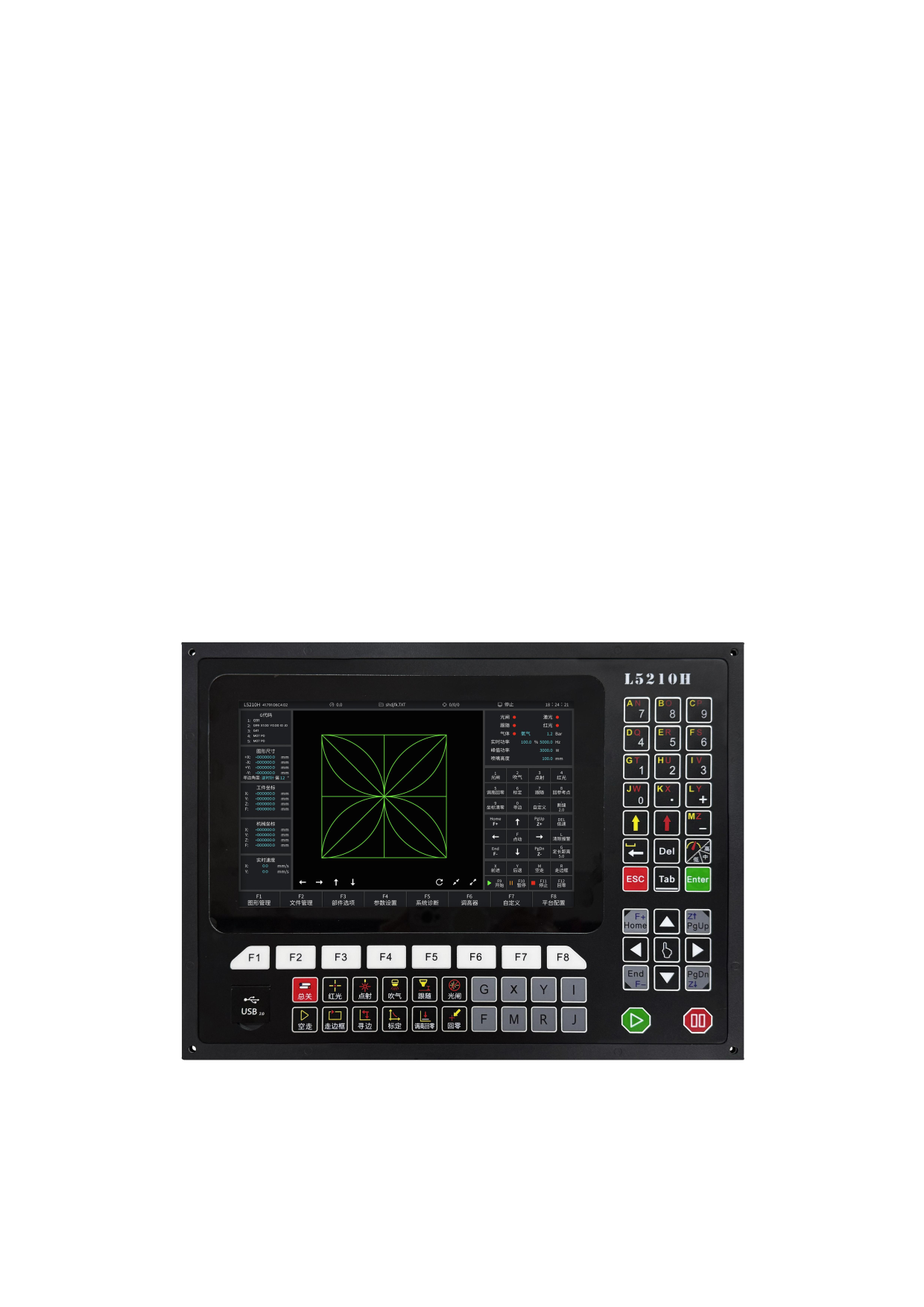

Figure 1.1 L5210H front face
