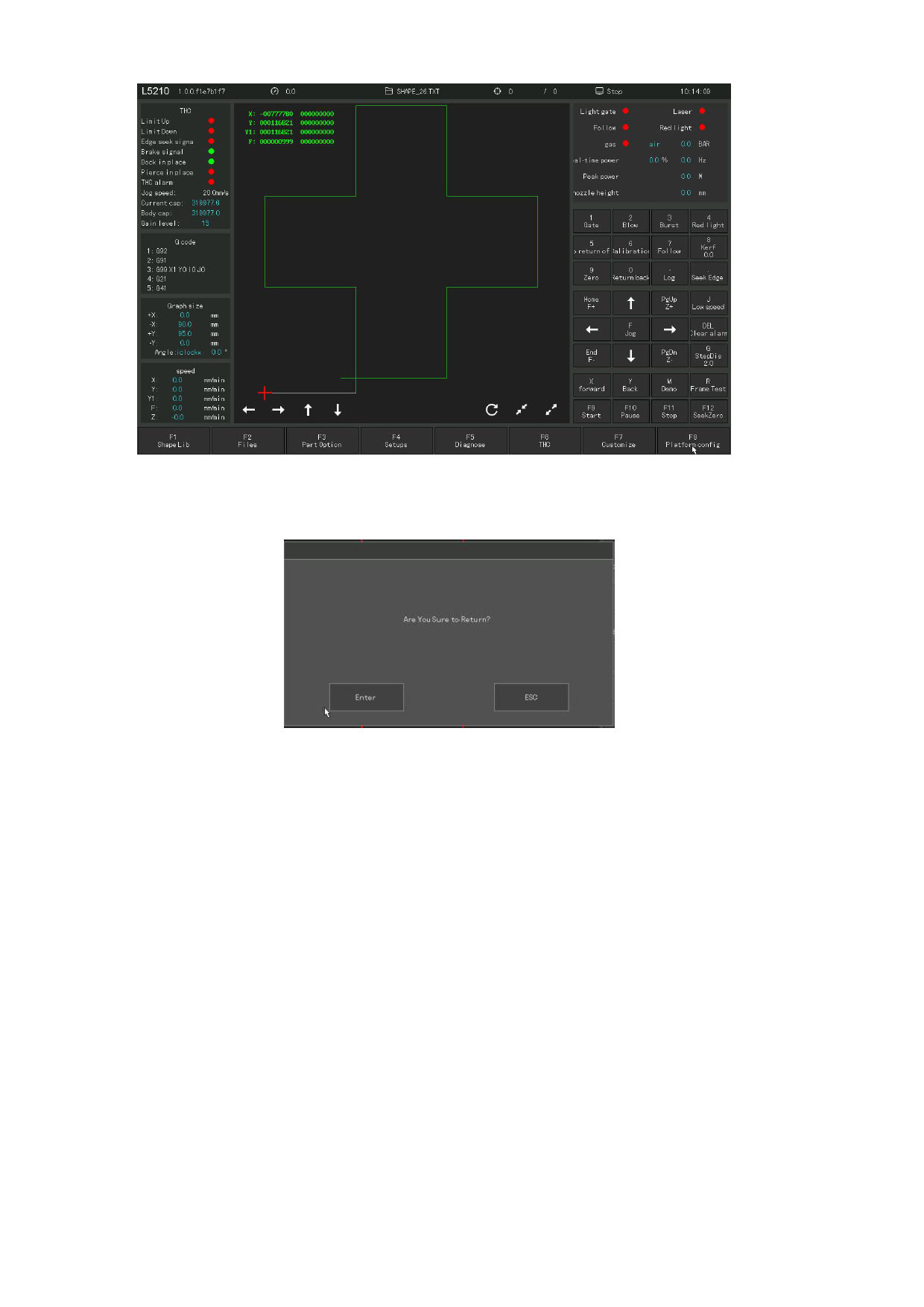

Figure 3. 5 Walk through the border
Figure 3. 6 returns to the reference point
By pressing ENTER, the system automatically returns to the starting point of the
part machining. If ESC is pressed, the system stops at the current point.
During walk frame, you can also press STOP to pause and press START to continue.
Pressing 0 again will go back to the starting point.
3.9 Seek edge
In the actual laser cutting process, it is inevitable that there will be some angle
after the plate is placed on the workbench, which makes the workpiece coordinates
does not match with the machine tool coordinate system. At this time, if start cutting
directly, it will cause a lot of waste of the plate. The edge-finding function can
help users to automatically calculate the tilting Angle of the plate, so that the
workpiece coordinate system can match with the coordinate system of the machine tool,
and increase the utilization rate of the plate.
110
