After both settings are completed, the controller is power off to restart. If the
communication is normal, the controller will connect with the elevation ator.
16.3 Connect to the iR 15 31 remote control
This controller is equipped with an optional company iR 15 31 remote controller.
The CNC system is connected to the iR 15 31 remote control via the USB interface.
Connect the USB connection well later. Remote control operation can be performed.
USB interface of the receiving end (USB socket of the access system host), the
remote control distance can reach 30M, can be directly used by hot plug, support 6
custom function buttons, frequency modulation communication, strong
anti-interference ability.

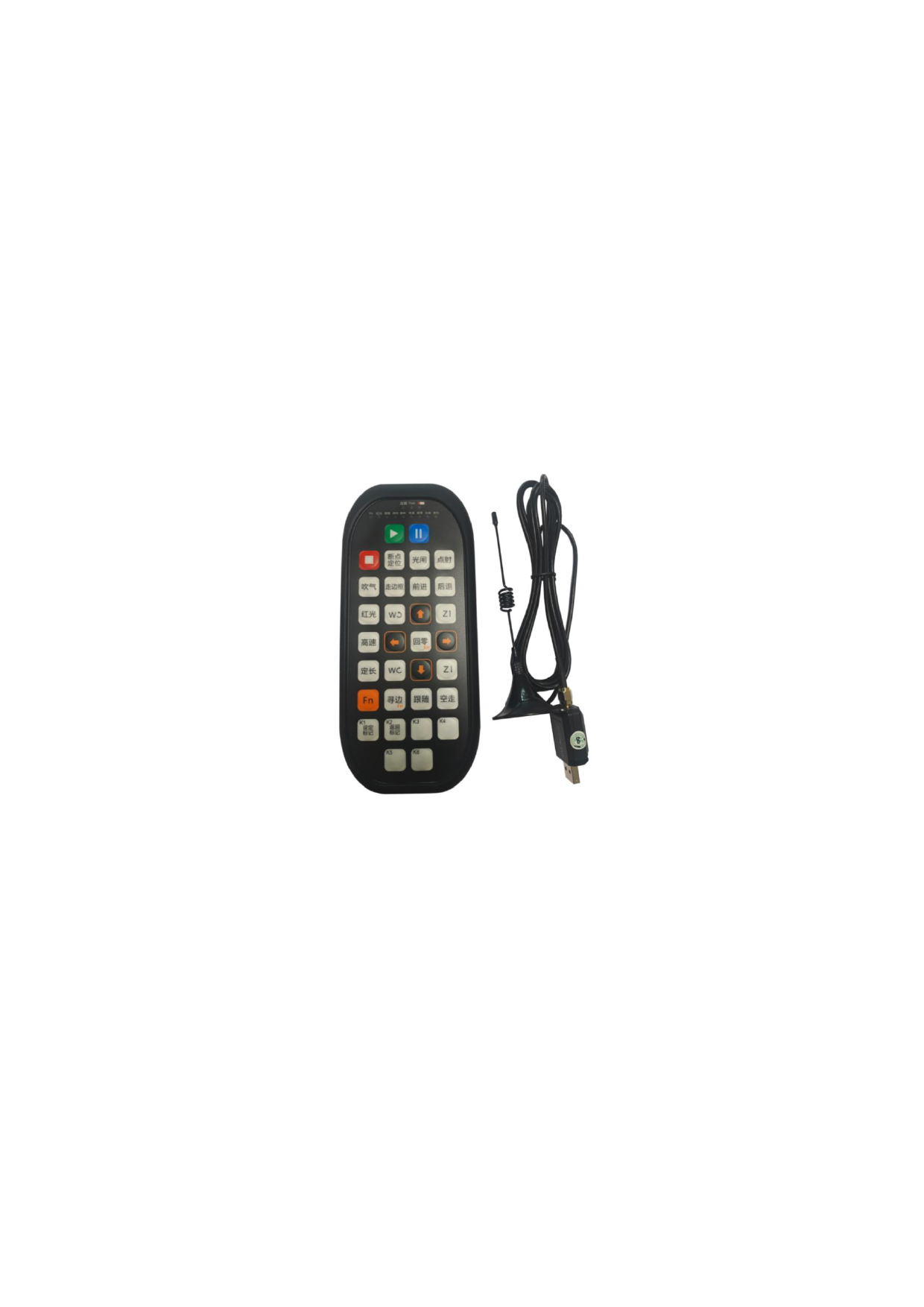

Figure 16.2 iR1531 Remote control
16.4 Connect the laser
Select the corresponding option according to the laser generator used. If the laser
generator model used is not included in the option, select the other option, support
universal DA controls the peak power of the laser generator, PWM sets the real-time
power of the laser generator, and the output port controls the light switch signal
of the laser generator.
