will close all outputs, but in some cases, the signal can be output during the
emergency stop, so this option for customers to choose
Breakpoint recovery enable: whether to open the breakpoint recovery function.
Laser process enabling: after checking, the laser process parameters take effect.
Force zero: Not allow to start working with out zero, and the function will take
effect after checking.
P2P startup: Whether to pop up offset prompt when enable P2P control mode.
7. 6 Parameter import
Press [F6] under the parameter setting interface can realize the batch import of
parameters from the U disk or the native hard disk. As shown in Figure Figure 7. 8.
Import from the U disk: first to insert the U disk into the system USB interface,
and the U disk internal has the corresponding parameter file, the parameter file
can only be the parameter file exported from the same system as the system model.
Then select the parameter file that needs to be imported in the U disk, and click
Enter.
Import from the hard disk, the first thing to determine that the local hard disk
has saved parameter files. Click Enter to select the parameter file saved in the local
hard disk, and click Enter.

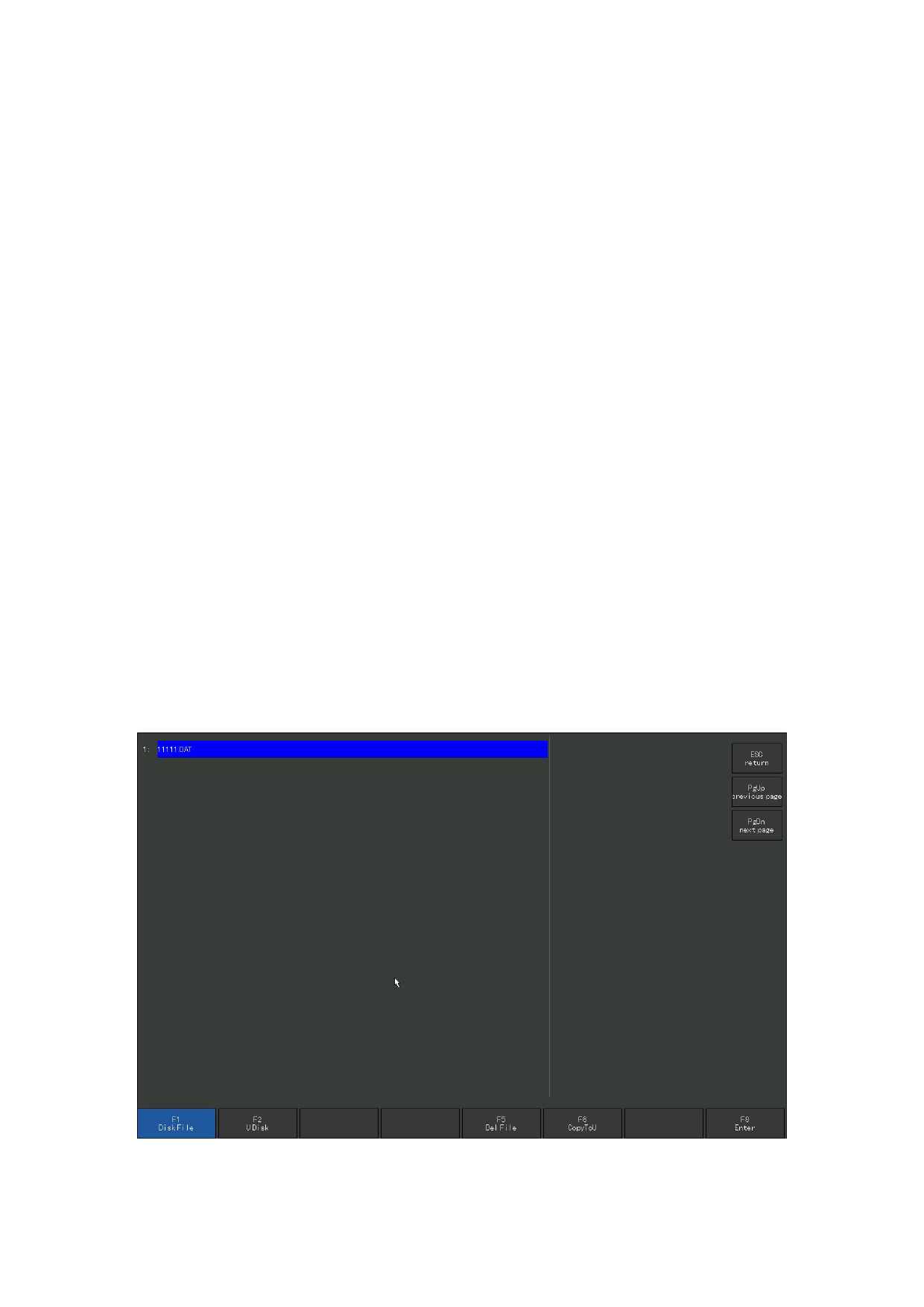

Figure 7. 8 Parameter Import
110
