Figure 16.3 iR1531 Remote control
1) Site configuration:

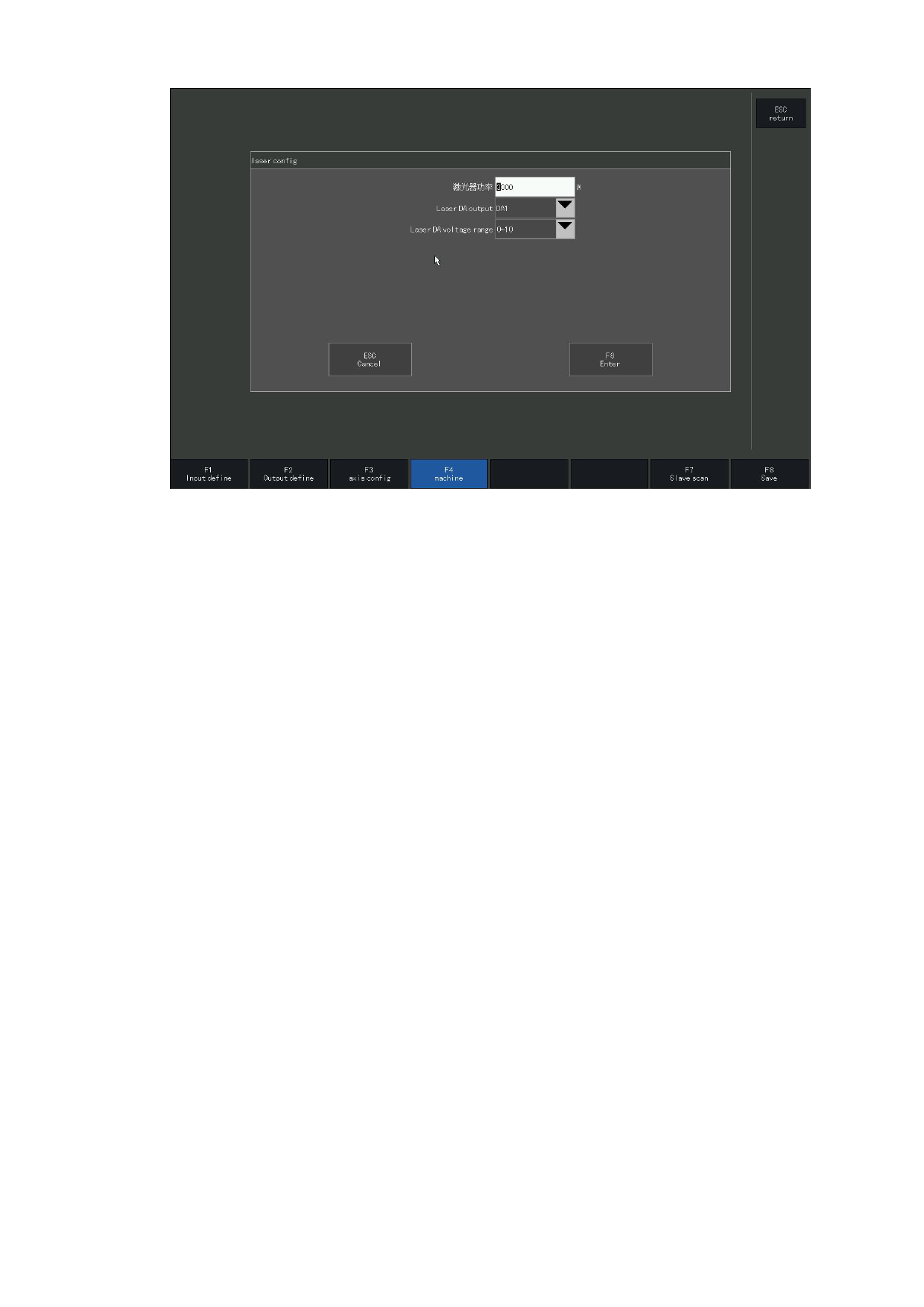

Under the [F 8 platform configuration] -> [F 4 machine tool] -> [laser] interface,
under the "laser configuration" option box, input the laser power used by the current
machine tool, input the DA port of the laser and the DA voltage range of the laser.
After the communication line is normal and the parameters are set correctly, you can
communicate with the laser.
136
    "
