formula of the British system and the metric
system is: 1-inch ≈ 25.4mm.
4.G00 empty movement
This code indicates that the torch moves quickly to the specified position,
and the system moves quickly from the starting point to the specified position
at the speed of "empty moving speed * rate".
form:
G00 X/Un Y/Vn[Fn]
Parameter meaning:
The Fn empty-range speed limit.
Un - The displacement of the end point X
coordinate relative to the starting point of the
current segment
Vn - The displacement of the end point Y
coordinate relative to the starting point of the
current segment
(In the relative coordinate system)
Xn - The displacement of the end point X coordinate
relative to the starting point of the workpiece
Yn - The displacement of the end point Y coordinate
relative to the starting point of the workpiece
example:
▲
G92 X0 Y0 / / Reference point (0,0)
G91 / / relative coordinates
G00 X100 Y100 / / Quick move to (1
00,100) M02
(100,100)

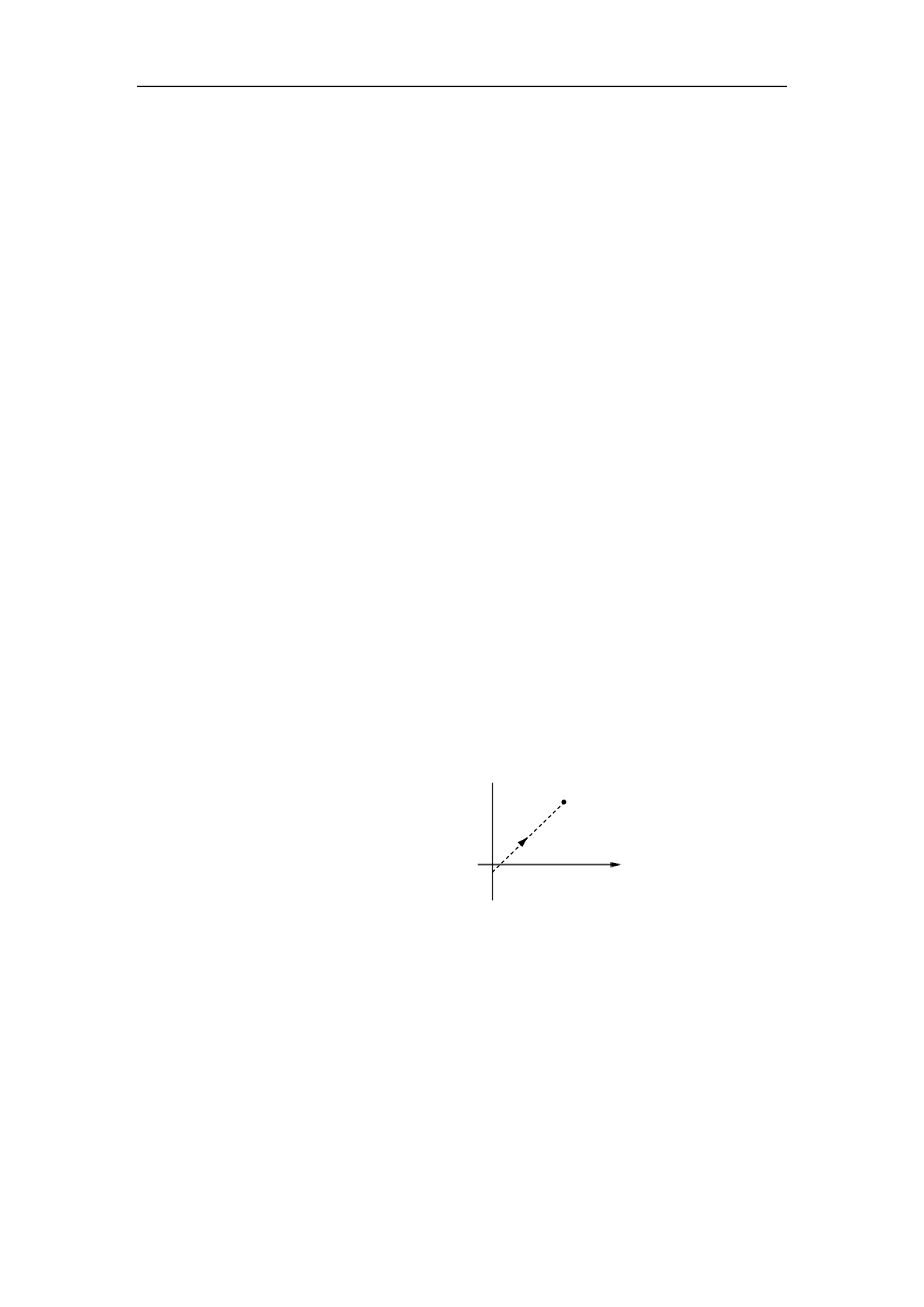

Figure 1 3.4 G00 usage
5. G01 straight-line cutting
This code indicates straightly cut to the specified position, and the system
cuts from the starting point of the current segment to the specified position at
the speed of "cutting speed * rate".
form:
G01 X/Un Y/Vn[Fn]
Parameter meaning:
113
