Only return: If [Y] is pressed, the system only quickly returns to the pause point
before the offset, and then stops. In the cutting process, if found that the cutting
torch was defective, or any other problems, need to move the cutting torch out of
the cutting area for maintenance, when the maintenance needs to return to the pause
point can press this key. After returning to the pause point, press the "Start" button
again, and the system automatically starts cutting along the original track.
3. 4 Return to reference point
When the processing stops, if [0] is pressed, the system will automatically return
to the starting point of the processing workpiece. During the return process, the
user can also press the "stop" key to stop, and can continue to press [0] to return
to the reference process, or press the start key to cut again. Return references and
stops are not limited by the number of times.
3. 5 Select the perforation points
Before starting cutting or after cutting stop, you can select the perforation
number in the F3 part options.

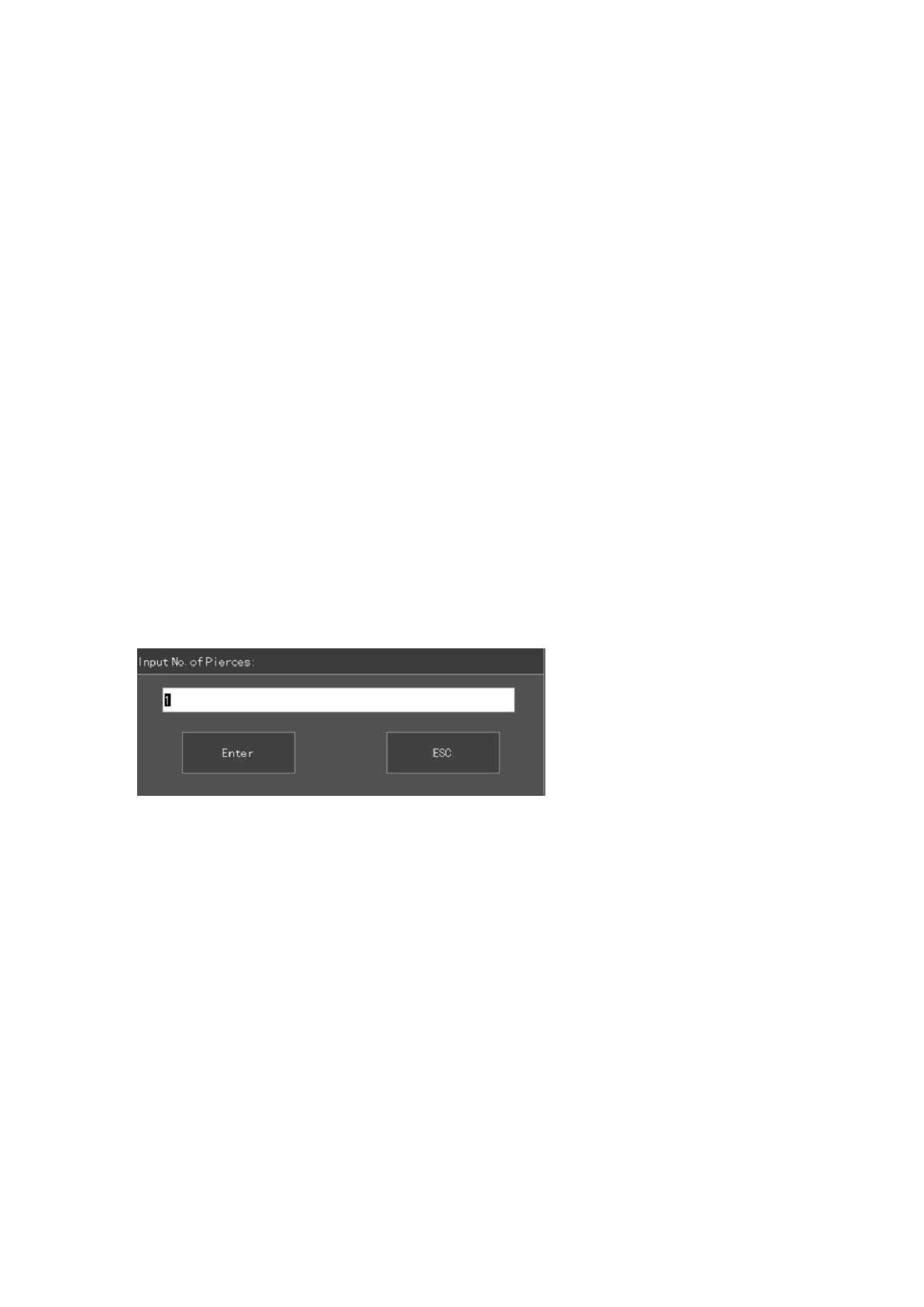

Figure 3. 3 Note of perforation
The position of the perforation point can be entered manually. You can also press
ESC to exit, without manually entering the perforation point position, and then press
the left and right arrow keys to select the perforation point.
3. 6 Dynamic magnification
After the processing begins, the graphic amplification and reduction button of
the cutting interface can be enlarged and reduced at will to "dynamically enlarge".
110
