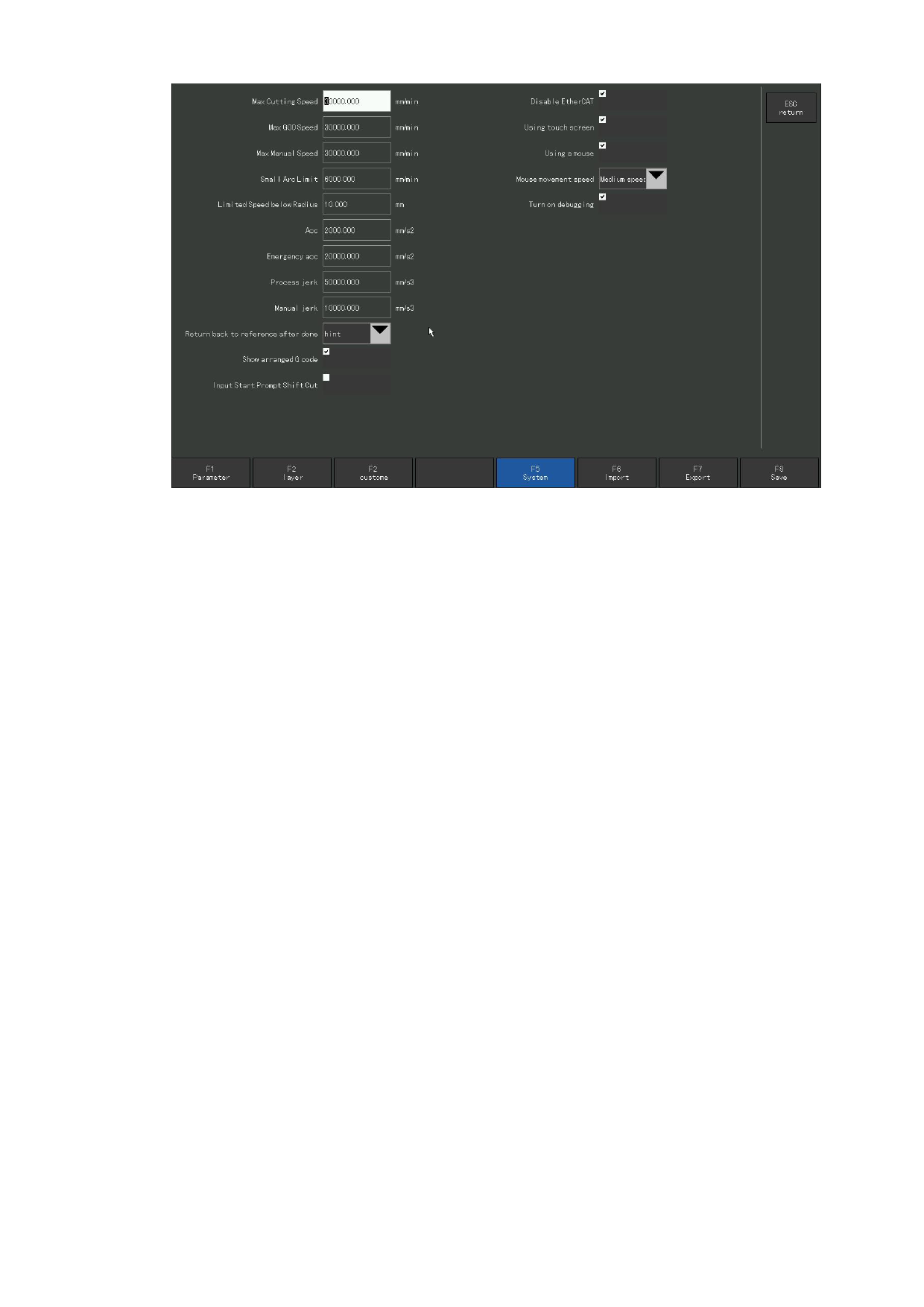

Figure 7. 7 System Parameters
System parameters, with the interface as shown in Figure Figure7.7.
Max cutting speed: Max cutting speed of process.
Max G00 Speed: Max empty walk speed.
Max manual speed: Max manual speed.
Small arcSpeed limit: the system will automatically slow down when cutting small
circles and arcs.
Small arc speed limit radius: arc radius value of limited small circular.
ACC: the maximum acceleration of each axis, work together with the cutting speed.
Emergency ACC: The maximum acceleration of each axis when the machine meets
emergency stop.
Plate Angle memory: When enabled, the plate correction angle will be saved for
next plate, the next plate still has a correction Angle. If not enabled, the
next plate needs to be corrected again.
Manual Angle for plate correction: When enabled, the manual input Angle is also
used as the Angle of plate correction. This Angle will be displayed in the main
interface. If the plate Angle memory function is turned on, the Angle will be
added to the plate correction Angle and be saved.
Allow output when emergency stop: whether the system is allowed to output signal
during emergency stop enabling. In a normal emergency stop, the security system
110
    "
