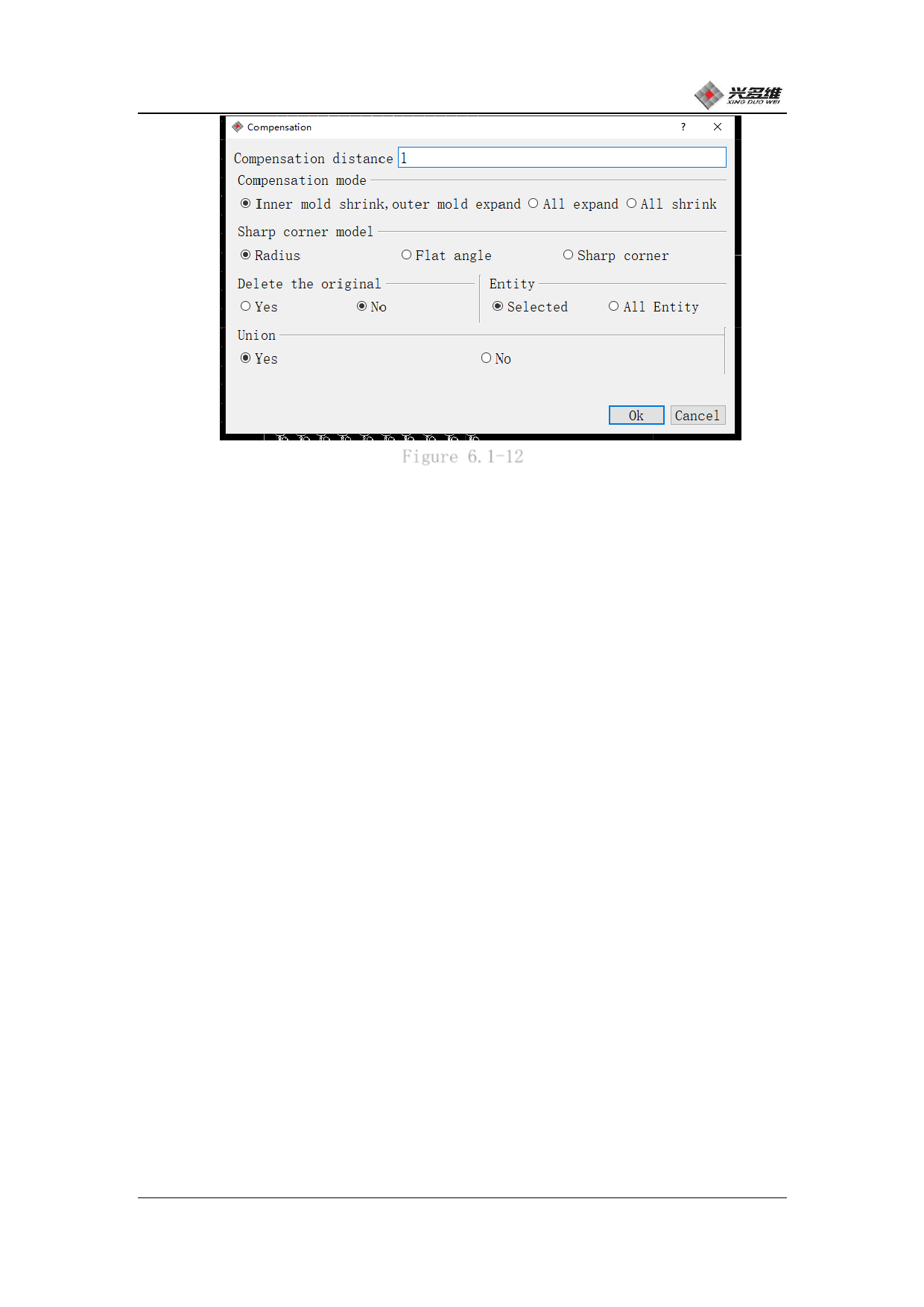

Figure 6.1-12
The offset distance indicates the distance between the graphic
and the original graphic after the expansion and contraction; the
expansion in the offset mode indicates that the original graphic is
expanded to the outside, and the indentation indicates that the
original graphic is reduced to the inside; when the graphic is
scaled, if the graphic is With focus, the graphics angle is the same
as the original. If there is no focus, the sharp angle mode of the
graphic after processing can be specified according to the selection
of the user's sharp corner mode; the user can select whether to
delete the original image according to the demand by whether to
delete the original file tab.
Users choose whether to check the compensation fusion according
to their needs. The fusion is very large in the actual use of the
user. The gap between the graphics drawn by the user may be less than
twice the diameter of the tool. In this case, if the expansion
without fusion is used, the processing road will overlap. The product
will be destroyed during processing. Therefore, in this case, the
fusion function should be enabled.
