3.2 Software interface
成都兴多维科技有限公司
Chengdu multidimensional robotization technology company
The CNC-Couter software consists of a title bar, a menu bar, a
status bar, a function selection bar, a drawing toolbar, a display
area, a file information area, a display area, and a machine control
bar. As shown in Figure 3.2-1:

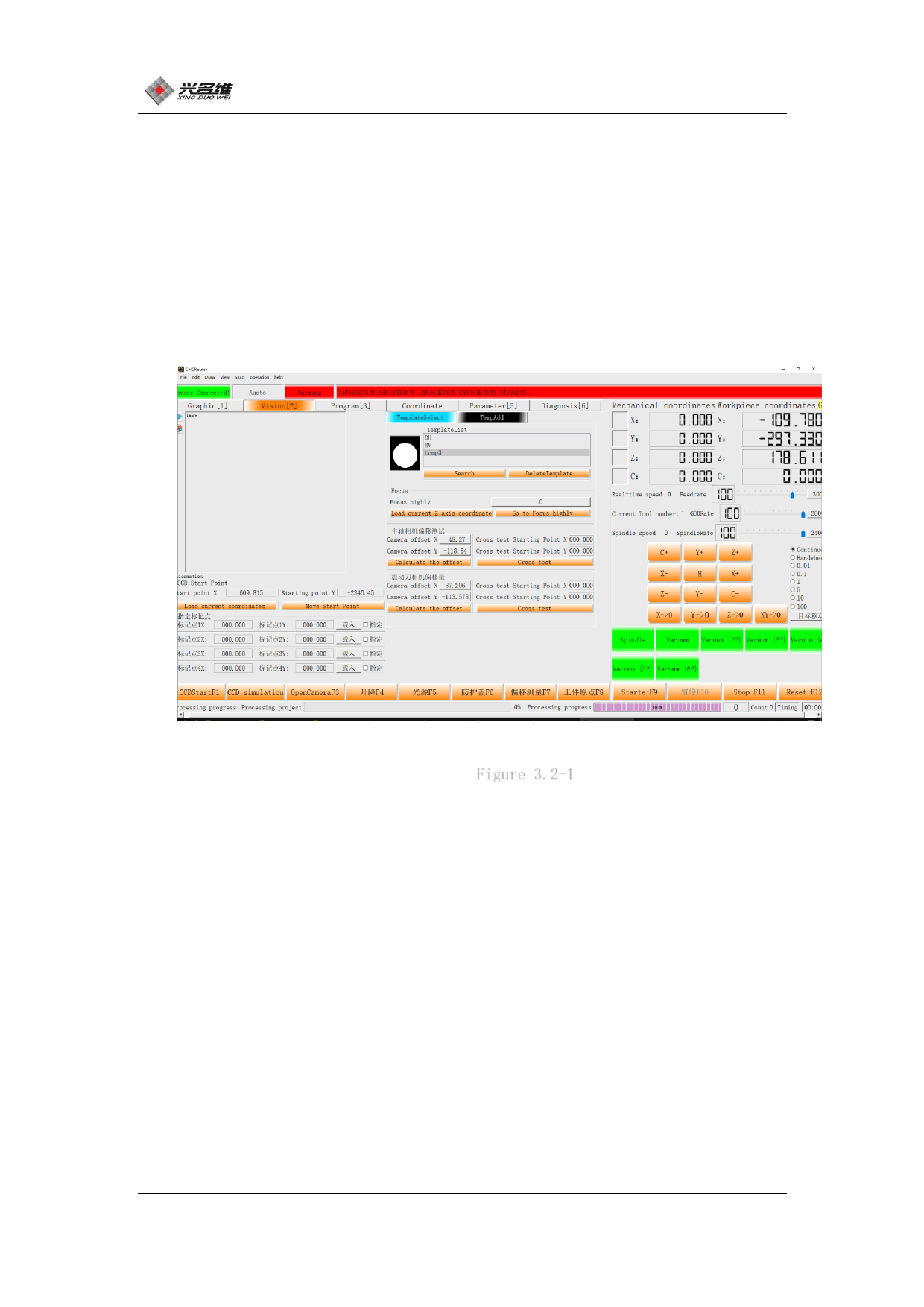

Figure 3.2-1
Menu bar: including file, edit, draw, view, capture, action, help
options to accomplish different tasks.
Status bar: used to display the current status of the machine,
including network connection status, machining status.
Window selection: Contains graphical display, vision, program,
offset, parameter, diagnostic, automatic, manual, reference point
function interface selection. Choose different windows depending on
the operation.
