One or more public offsets can be used during machining, as shown
in Figure 23.1-3. If three workpieces are installed on the workbench,
each workpiece has a workpiece origin corresponding to the workpiece
coordinate system G code. Drill a line on each of the three
workpieces on the way, the machine selection depth is Z-5, the
programming example is as follows:

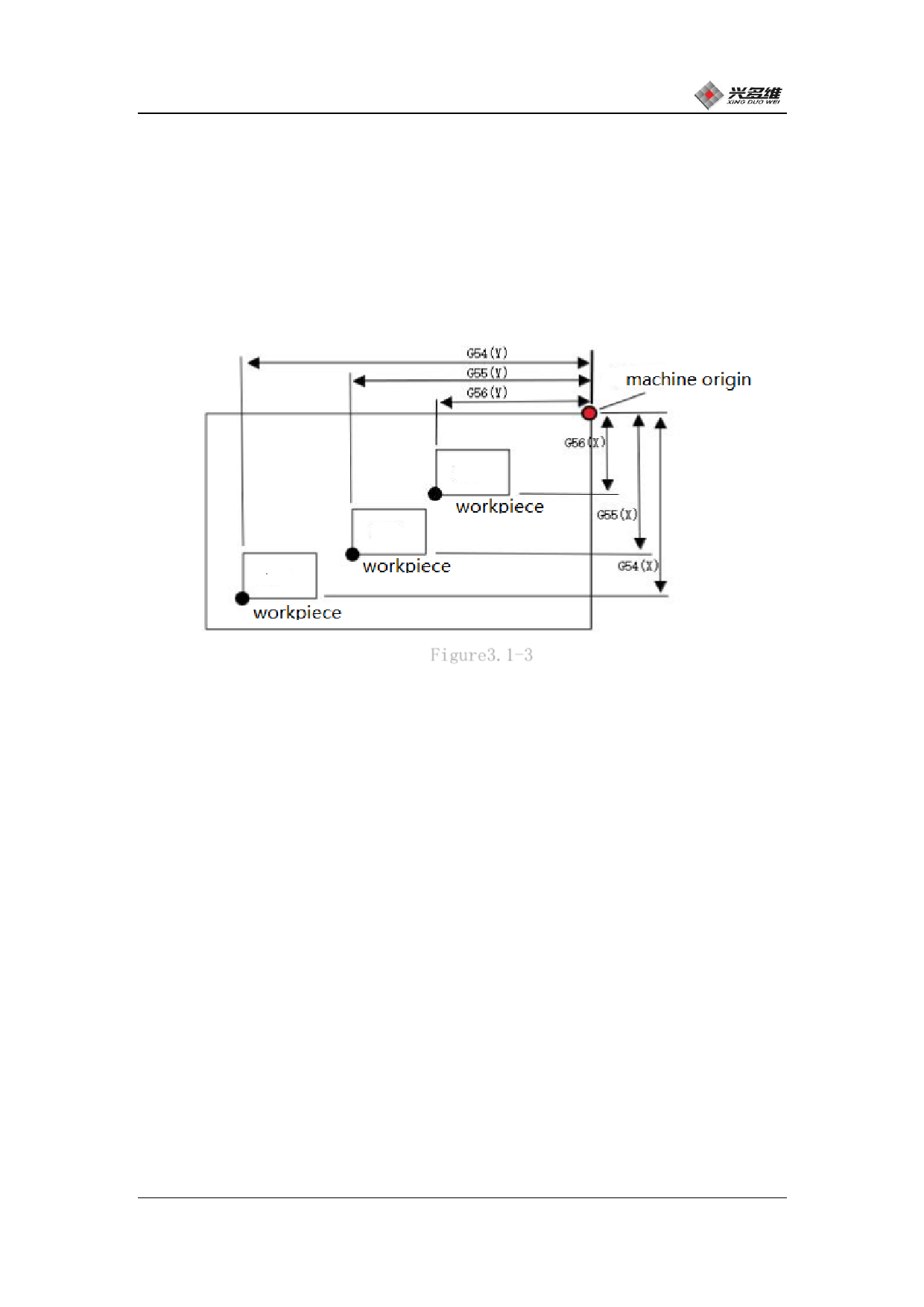

Figure3.1-3
The block N3~N8 is related to the first workpiece in the G54
workpiece coordinate system; the block N9~N15 will drill the straight
line of the second workpiece in the same batch installation in the
G55 workpiece coordinate system, the block N16~22 will Drill the
third straight line in the same batch installation in the G56
workpiece coordinate system. The common offset is used to adjust the
workpiece origin of the XYZ axis for all coordinate systems. This
value does not change the offset value of G54~G59.
