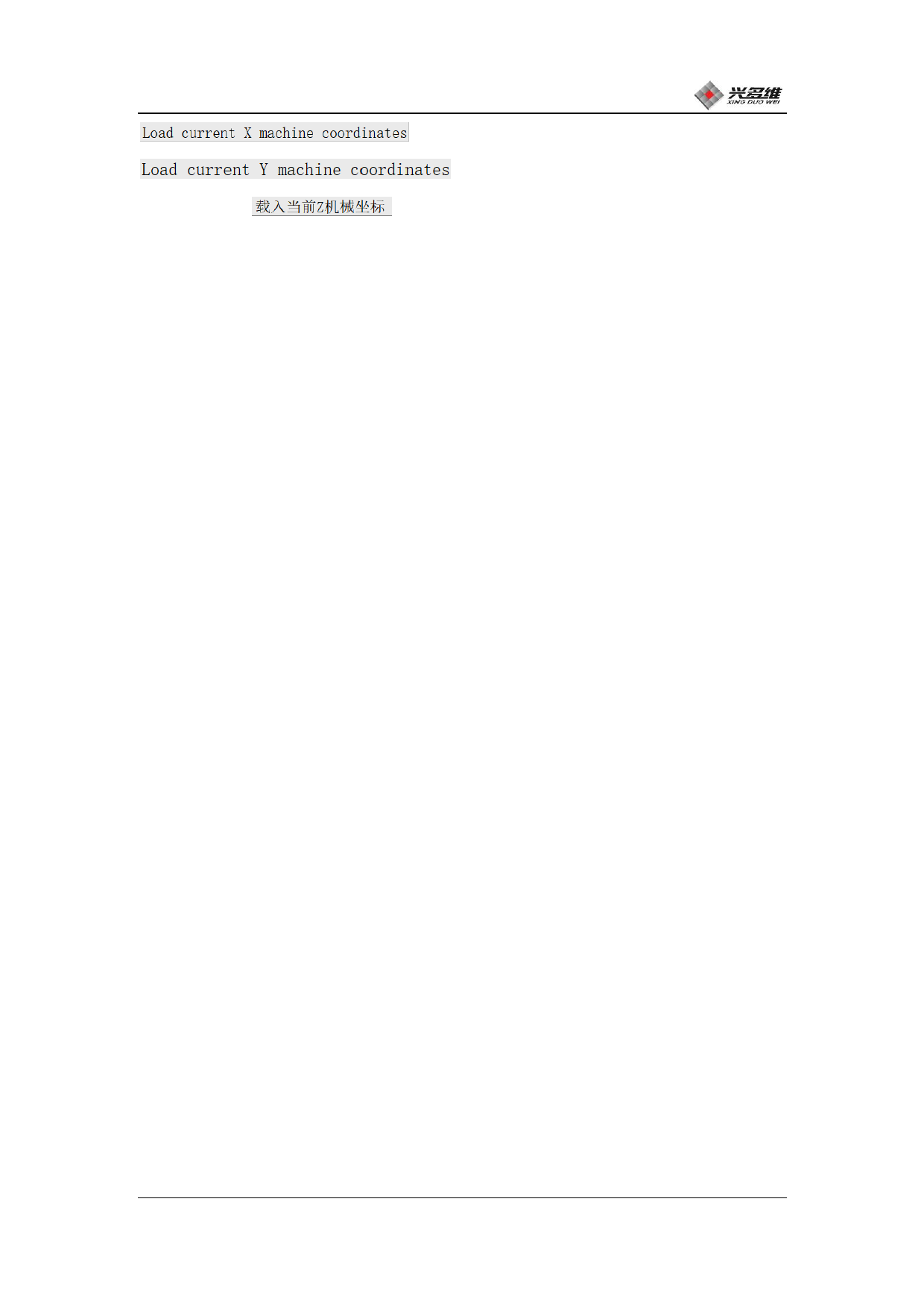

, [Load current Y machine coordinates]
,[Load current Z machine
coordinates]
. The first tool magazine location setting
is completed, and the remaining magazine positions are set to repeat
the appeal step. After all the positions are set, the magazine
location is set.
4.5 Vibration knife zero setting
Unlike a spindle cutter, a vibrating knife requires a zero angle
to cut the blade. A deviation in the zero angle setting will cause
burrs on the edge of the machined product and damage the tool; and if
the error is too large, it cannot be processed.
During the commissioning, it is necessary to ensure that the
angle between the cutting edge and the positive X-axis is zero
degrees after the rotating shaft of the vibrating knife is returned
to zero. The specific operation method is to click [C axis return to
zero] in [Operation] in the menu bar. After the zero return is
completed, check the positive edge angle between the blade and the X
axis. Change parameters:11506 C Retreat distance,,Change the positive
angle of the blade to the X axis after the zero return is completed.
Constantly adjust this parameter until it is roughly zero degrees.
At this point, open the vibrating knife and use the manual mode
to machine a line segment parallel to the X axis to see if the line
segment is jagged. If there is jagged, fine-tune the parameters.
Repeat the above steps until the line is drawn without serrations.
