8.2.5. Auto Measure of Tool Length
For NK105G2/G3 CNC system, pressing
+
will automatically measure tool length.
After tool length measured, the system will give a prompt “Succeed to set the tool length!”
8.2.6. Process of Tool Measurement
NK105 has three kinds of tool measurement. They are first time measurement, measurement
after tool change and moveable tool measurement. The last one is the mostly used tool measurement
in linear tool magazine software.
Moveable tool measurement executes tool measurement at the current position and probes
workpiece surface, used for setting Z-axis workpiece origin.

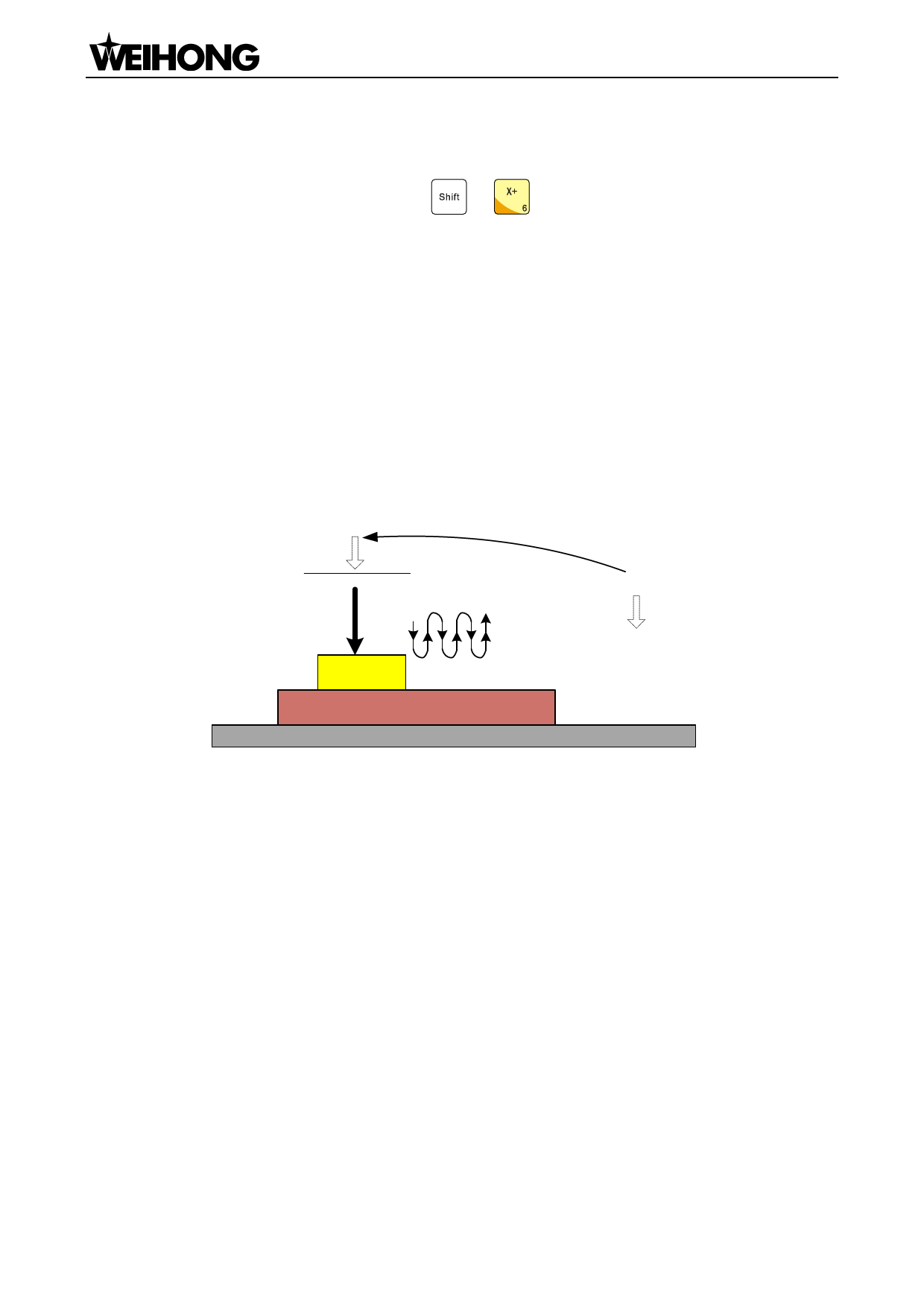

The sketch map of the process of moveable tool measurement is as shown in Fig. 8-1:
①Manually move to the upper
side of tool sensor
Manually move the
machine to this position
Tool
Sensor
②Up and down
measurements
Workpiece
Worktable
Fig. 8-1 Sketch map of moveable tool measurement
Position before
measurement
