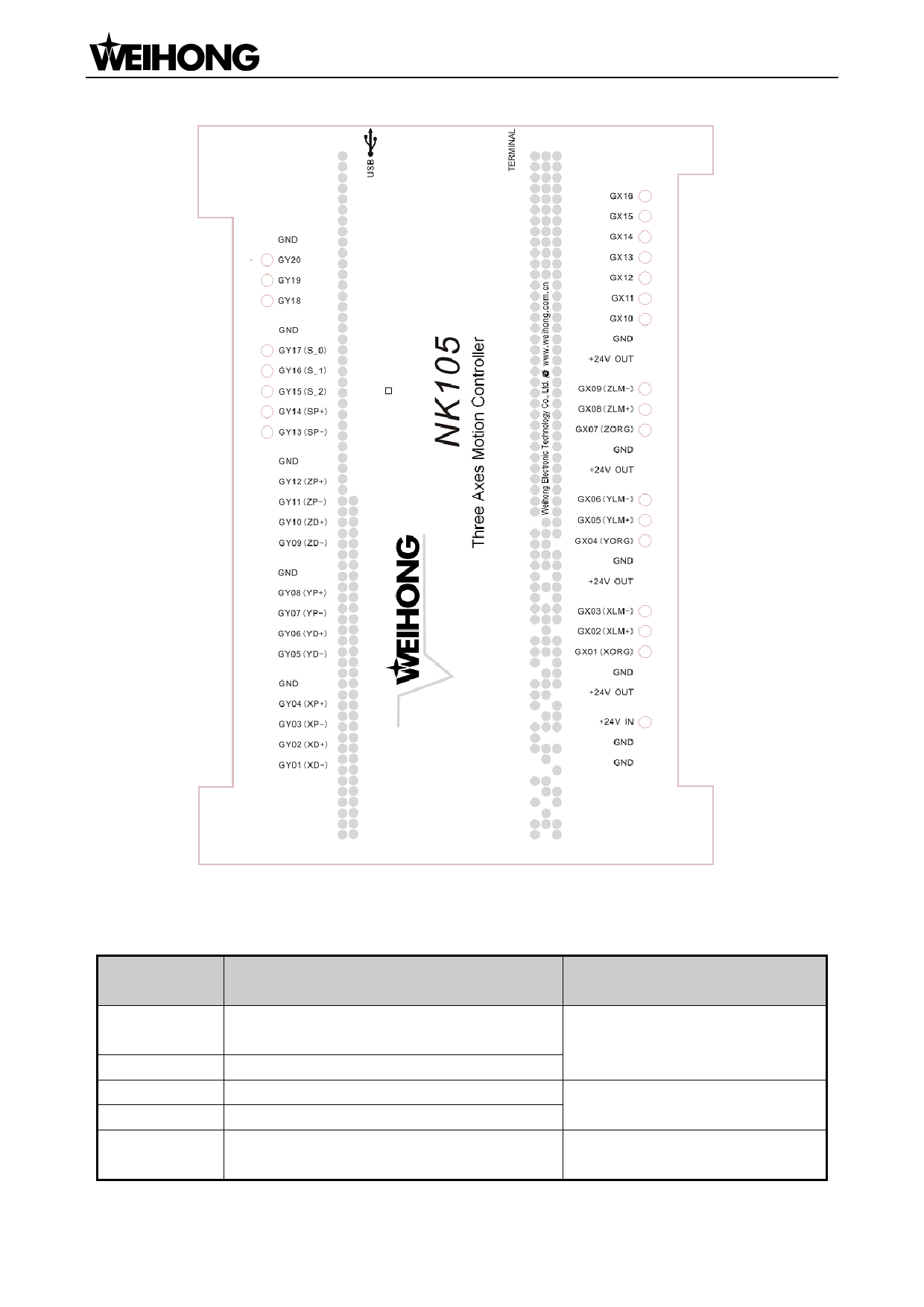

Fig. 2-6 Terminals on NK105 control box
The detailed explanation of terminal pin signals is as shown in Table 1 and Table 2.
Silk-printed
name
GY01(XD-)
GY02(XD+)
GY03(XP-)
GY04(XP+)
GY05(YD-)
Table 1 Output signals
Corresponding signal
Remark
Negative differential signal of X-axis
direction
Positive differential signal of X-axis direction
Negative differential signal of X-axis pulse
Positive differential signal of X-axis pulse
Negative differential signal of Y-axis
direction
XD+ and XD- are differential pair
signals of X-axis direction.
XP+ and XP- are differential pair
signals of X-axis pulse.
YD+ and YD- are differential pair
signals of Y-axis direction.
