Binary input signal can be connected with a photoelectric switch or a proximity switch of NPN (NO
or NC) type. Its joining method is as below.
I/O Board Card
24V
External Input
24V
Recommended
IN
COM

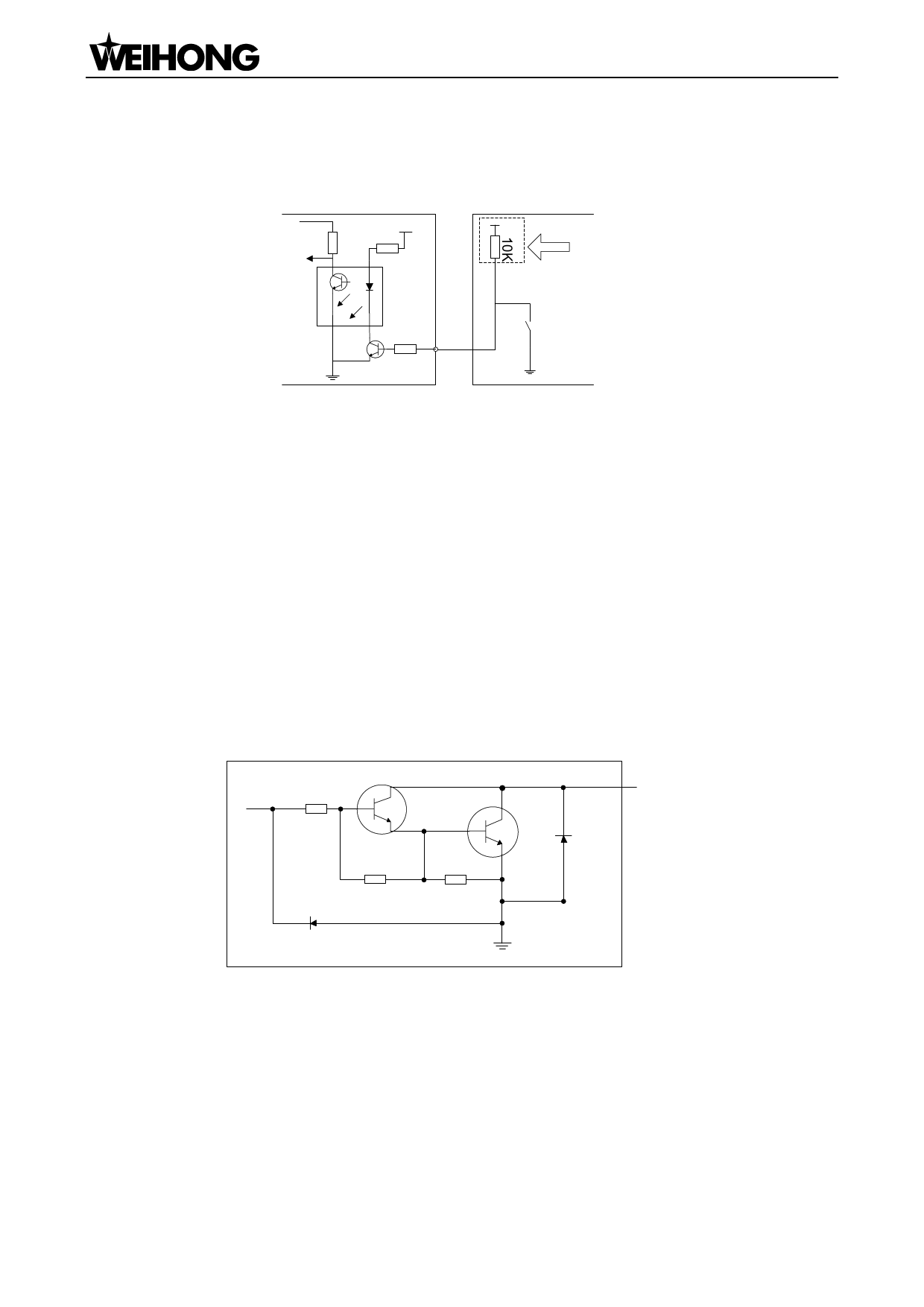

Fig. 2-2 Binary input of NPN type connecting with photoelectric switch or proximity switch
Power Requirement
It is recommended to adopt DC24V/4.5A switch power for relays on the terminal board. If there
are a great many DC 24V relays controlled by binary output signal, users can appropriately expand the
power source capacity or add extra power (forcibly sharing ground with external power supply). Z-axis
brake and solenoid valve also need DC24V instead of external power to the greatest extent to reduce
the interference to CNC device by solenoid valve, etc.
2.1.3. Binary Output
Signal Characteristics
The internal equivalent circuit of binary output is shown in Fig. 2-3.
2.7KΩ
OUTX
7.2KΩ
3KΩ
Fig. 2-3 Equivalent circuit of binary output interface
Technical Parameter
Supply voltage: 24VDC
Open collector output, with maximum output current 50mA.
Connection of Binary Output and External Circuit
The connection of solid-state relay and binary output is shown in Fig. 2-4.
「4」Wiring
    "
