CAUTION
The purpose of 200ms delay is to guard against the cylinder not in-position and the spindle and the inverter not
connected.
8.1.7. Simulation
To execute simulation function, you can press
OK
+
(or
+
). You can also
find “4. Machining Info” under “3. Operations”, and then press “OK”. After simulation, the system will
display estimated machining time and machining range of each axis.
8.2. Linear ATC
Linear tool magazine refers to a tool magazine storing tools in array. For example, if a customer
has 12 tools, he can select a 1-line 12-row tool magazine, or a 2-line 6-row tool magazine, etc. Auto
tool change can be realized by programming in the public.dat according to the above related
information learned from the customer. NK105 linear tool magazine software is developed to realize
machining with multi-tool.
8.2.1. Function Information of Combination Keys

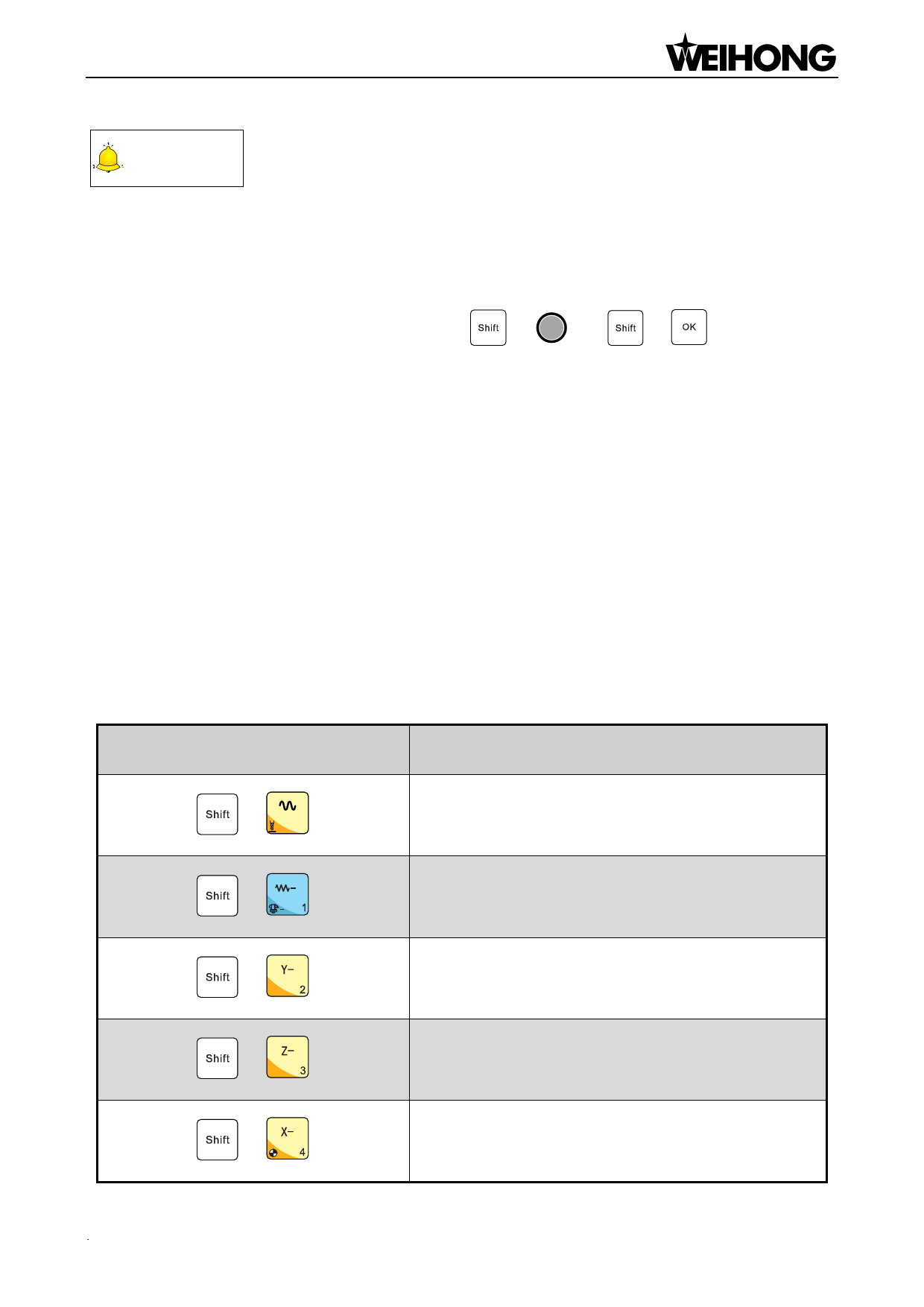

Functions of combination keys in G2:
Combination Key
Function
+
0
Moveable tool measurement
Decrease of spindle speed gear
+
First time measurement
+
Measurement after tool change
+
Return to REF. point
+
Cylinder ATC and Linear ATC Function「75」
    "
