10.2.8. Wiring Diagram of STONE GS Servo Driver
NK105 Control Box
STONE GS Servo driver
D-
28 DIR-
D+
13 DIR+
P-
27 PUL-
P+
12 PUL+
(Red)
Z-axis Brake W ire
21
BRAKE+
(Black) 5 BRAKE-

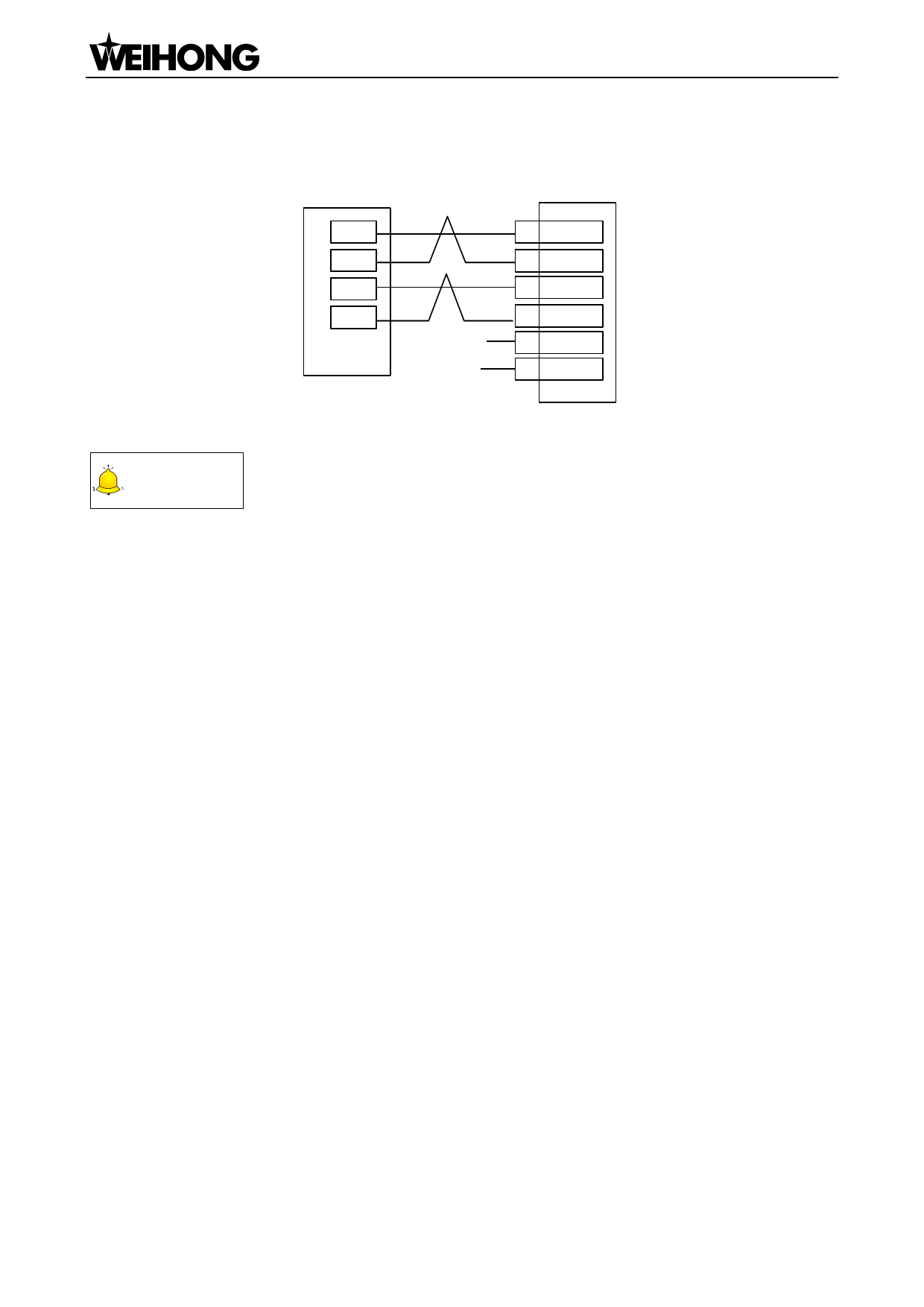

Fig. 10-9 Wiring diagram of NK105 and STONE GS servo driver
CAUTION
Wirings of X axis, Y axis, and Z axis are the same. Only Z axis has two brake signal lines which can be
connected to relay to control brake.
