3. In the CCM settings area, turn on CCM Enable.
4. Set multiplicative factors in the 9 fields below (see the figure Figure 5-6), which
represent a 3 × 3 color correction matrix.
Note
Valid value range of the multiplicative factor is from - 4 to 4.
Example
Take RGB to RGB transformation for an example. In this case, multiplicative factors
(from a11 to a33) marked in the figure Figure 5-6 represent the following meanings.
a11
Red contribution to the red pixel.
a12
Green contribution to the red pixel.
a13
Blue contribution to the red pixel.
a21
Red contribution to the green pixel.
a22
Green contribution to the green pixel.
a23
Blue contribution to the green pixel.
a31
Red contribution to the blue pixel.
a32
Green contribution to the blue pixel.
a33
Blue contribution to the blue pixel.

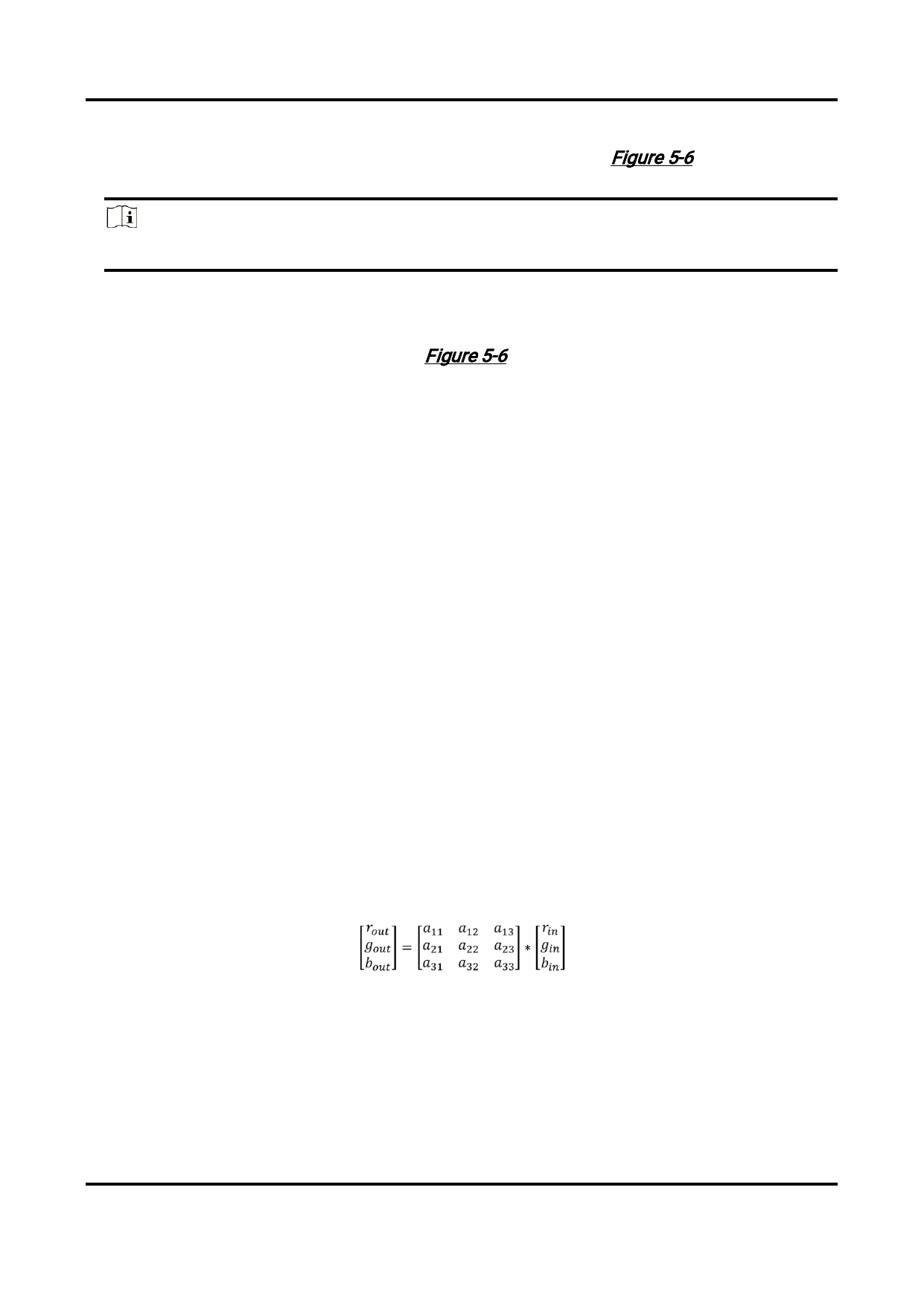

Figure 5-6 Color Transformation Matrix in RGB to RGB Transformation
