3）Left Mark: When printed materials are typeset by plate, the cutting machine recognizes the plate division mark for cutting.
The data range of the offset parameter in the plate division mark is from negative "length" to positive "length".
7. XY Identification Line Settings
For the XY cutting machine, it supports the setting of XY identification lines.
"Left" and "Right" refer to the areas where vertical lines are generated, and "Horizontal Left" and "Horizontal Right" refer to
the areas where horizontal lines are generated. After checking the "Group" option and entering the up - down offset value, the
overall up - down offset of all cutting lines can be achieved.
By setting the line width, horizontal line spacing, vertical line spacing, line - to - pattern distance, up - down offset, and the
vertical spacing between horizontal and vertical marks, the XY identification lines as shown in the following figure can be formed.

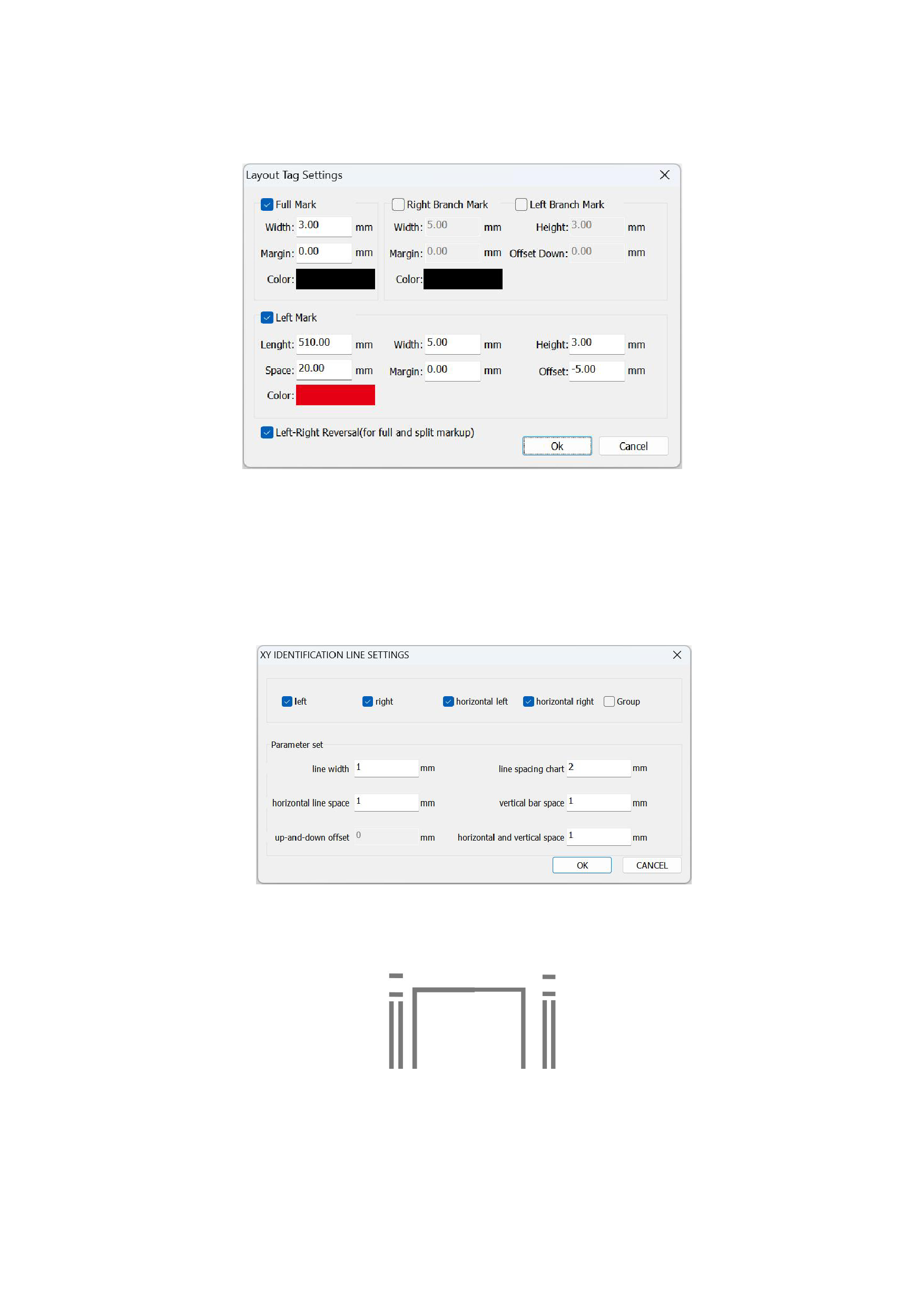

The overall XY identification lines are shown in the figure below:
