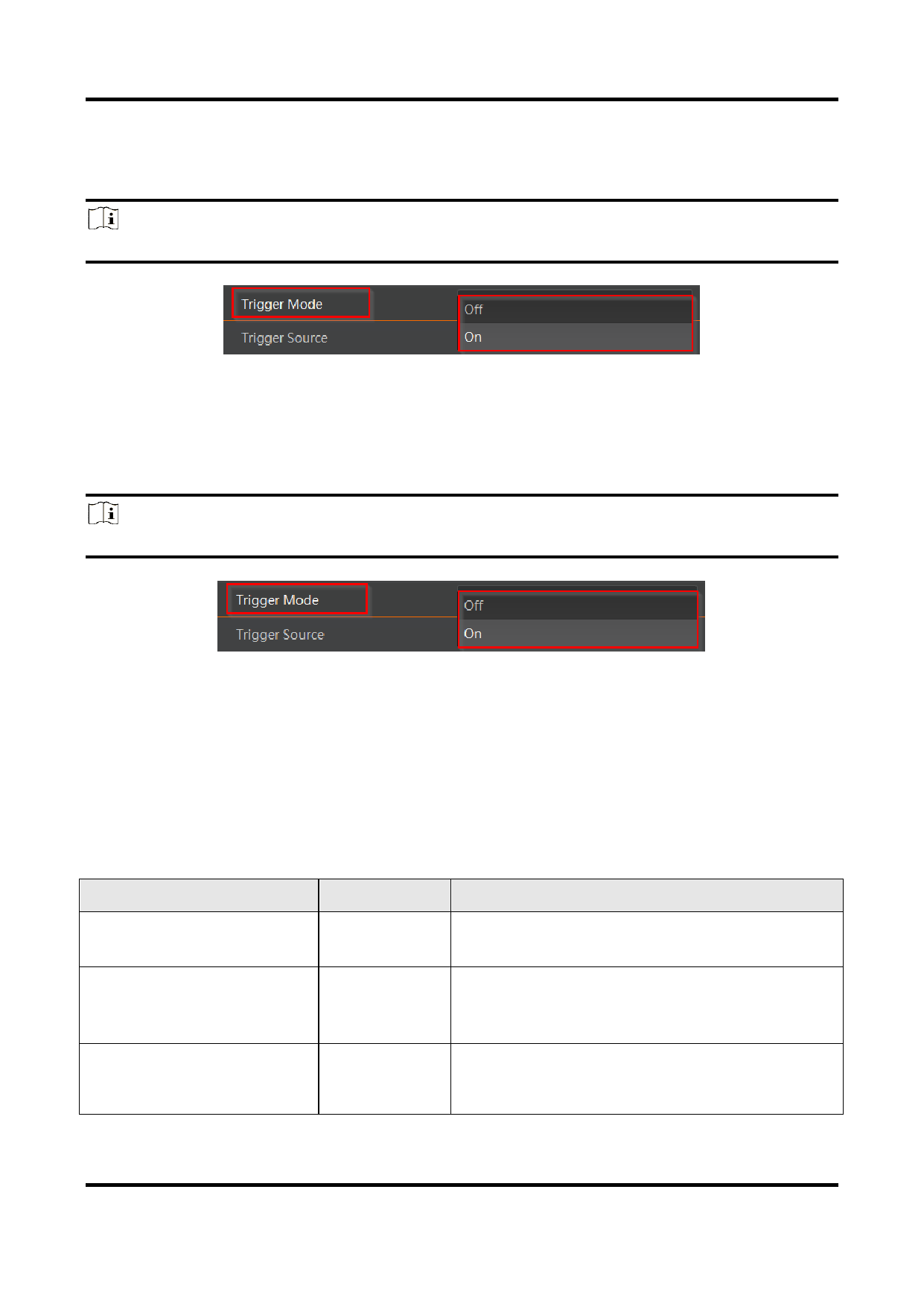

GigE Area Scan Camera User Manual
9.5.1 Enable Internal Trigger Mode
Go to Acquisition Control → Trigger Mode, and select Off as Trigger Mode.
Note
Off refers to the internal trigger mode.
Figure 9-6 Enable Internal Trigger Mode
9.5.2 Enable External Trigger Mode
Go to Acquisition Control → Trigger Mode, and select On as Trigger Mode.
Note
On refers to the external trigger mode.
Figure 9-7 Enable External Trigger Mode
9.6 Set Trigger Source
The device’s trigger source includes software trigger, hardware trigger, counter trigger,
action command trigger, and free trigger. Go to Acquisition Control → Trigger Source,
and select Trigger Source according to actual demands.
Table 9-1 Trigger Source Description
Trigger Source
Parameter
Description
Software Trigger
Software
The software sends trigger signal to the
device via GigE interface to acquire images.
Hardware Trigger
External device connects device via device
Line 0, Line 2 I/O interface. External device sends trigger
signal to device to acquire images.
Counter Trigger
Counter 0
The counter sends trigger signal to the
device to acquire images.
30
    "
