GigE Area Scan Camera User Manual
The device’s overlap function is controlled by the overlap mode. Go to Acquisition Control
→ Overlap Mode, select On as Overlap Mode to have overlap exposure, and select Off as
Overlap Mode to have non-overlap exposure.

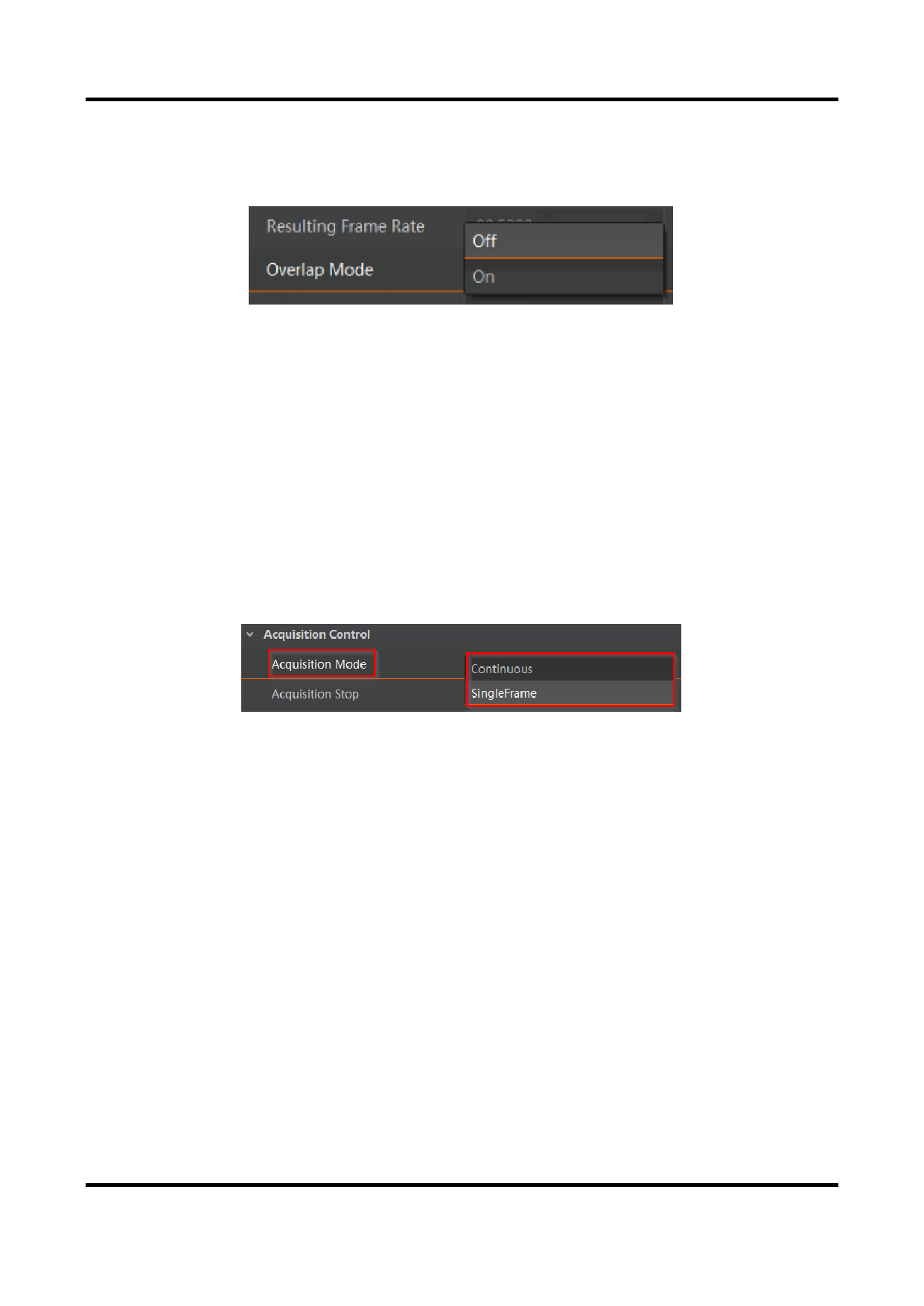

Figure 9-4 Set Overlap Mode
9.4 Set Acquisition Mode
The device supports two types of acquisition modes, including SingleFrame mode and
Continuous mode. Go to Acquisition Control → Acquisition Mode, and select Continuous
or SingleFrame as Acquisition Mode according to actual demands.
● SingleFrame: When device starts image acquisition, it acquires one image only, and then
stops.
● Continuous: When device starts image acquisition, it acquires images continuously.
Real-time frame rate decides the acquisition frame number per second. You can stop
image acquisition manually.
Figure 9-5 Set Acquisition Mode
9.5 Set Trigger Mode
The device supports two types of trigger modes, including internal trigger mode and
external trigger mode. Go to Scan Control → Trigger Control → Trigger Mode and set it.
● Internal Trigger Mode: In this mode, the device acquires images via its internal signals.
● External Trigger Mode: In this mode, the device acquires images via external signals like
software signal and hardware signal. The trigger source of external trigger mode
includes software trigger, hardware trigger, counter trigger, action command trigger, and
free trigger.
