GigE Area Scan Camera User Manual
Chapter 3 Appearance
Note
● For specific appearance and dimension, please refer to the device’s specification for
details.
● The appearance is subject to change, and the actual device you purchased shall prevail.
● TEC stands for Thermo-Electric Cooler that is able to keep the device’s sensor
temperature around environment temperature to ensure the normal operation of the
device.
The specific device appearance types are as follows:
● Type I device: It is a device with dimension of 29 mm × 29 mm × 42 mm.
● Type II device: It is a device with dimension of 29 mm × 29 mm × 42 mm, and it can be
mounted from four sides.
● Type III device: It is CU series device with dimension of 29 mm × 29 mm × 42 mm.
● Type IV device: It is a device with dimension of 29 mm × 44 mm × 59 mm.
● Type V device: It is an industrial short wave infrared device with C-mount and TEC
function.
● Type VI device: It is a device with M58-mount, but has no cooling fan.
● Type VII device: It is a device with F-mount, but has no cooling fan.
● Type VIII device: It is a device with M58-mount, and has cooling fan.
● Type IX device: It is a device with F-mount, and has cooling fan.
4
3
1
2
2
5
6

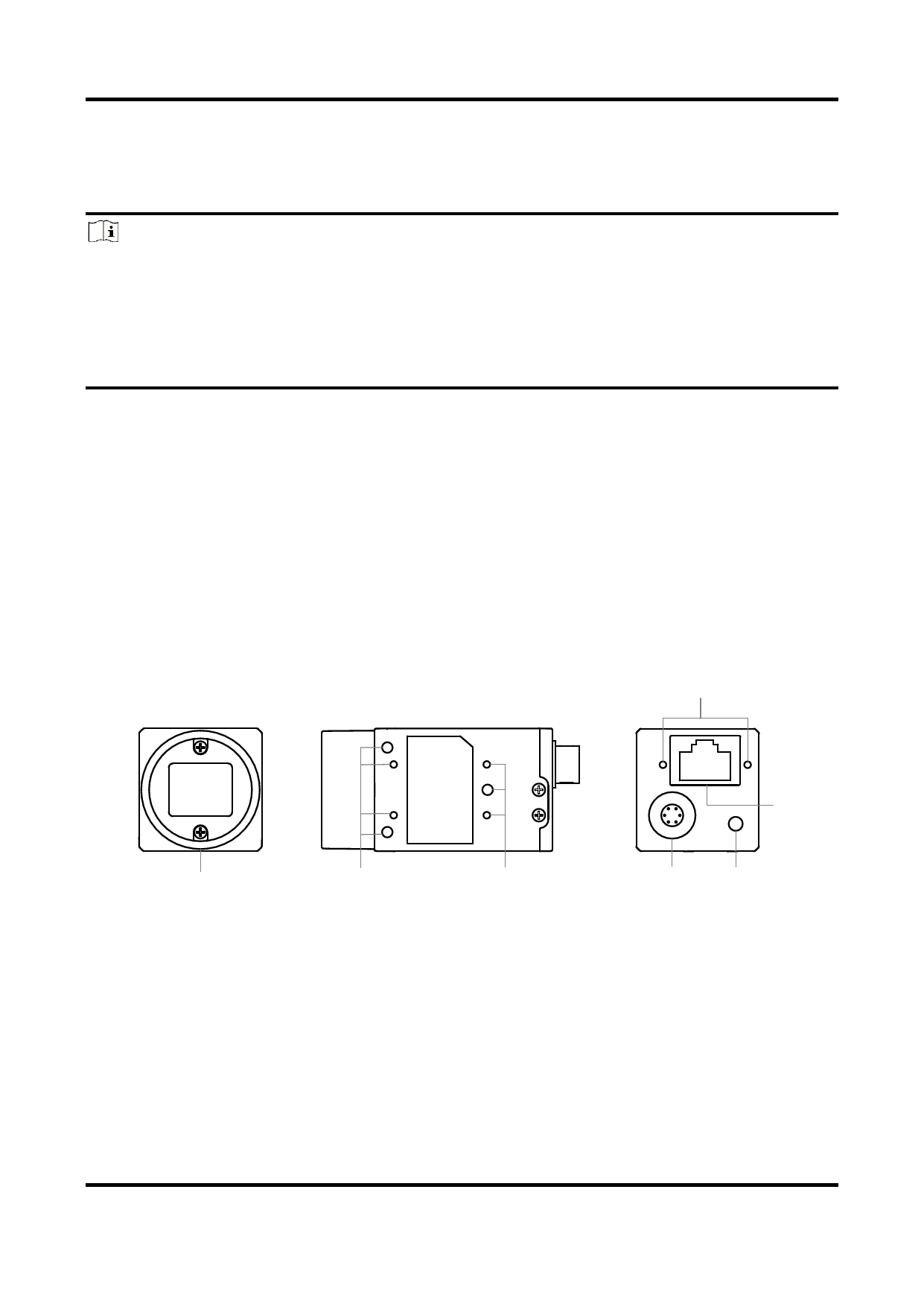

Figure 3-1 Appearance (Type I)
5
    "
