Chapter 7 Client Software Layout
After connecting to the device, the client software can read its attributes and display them.

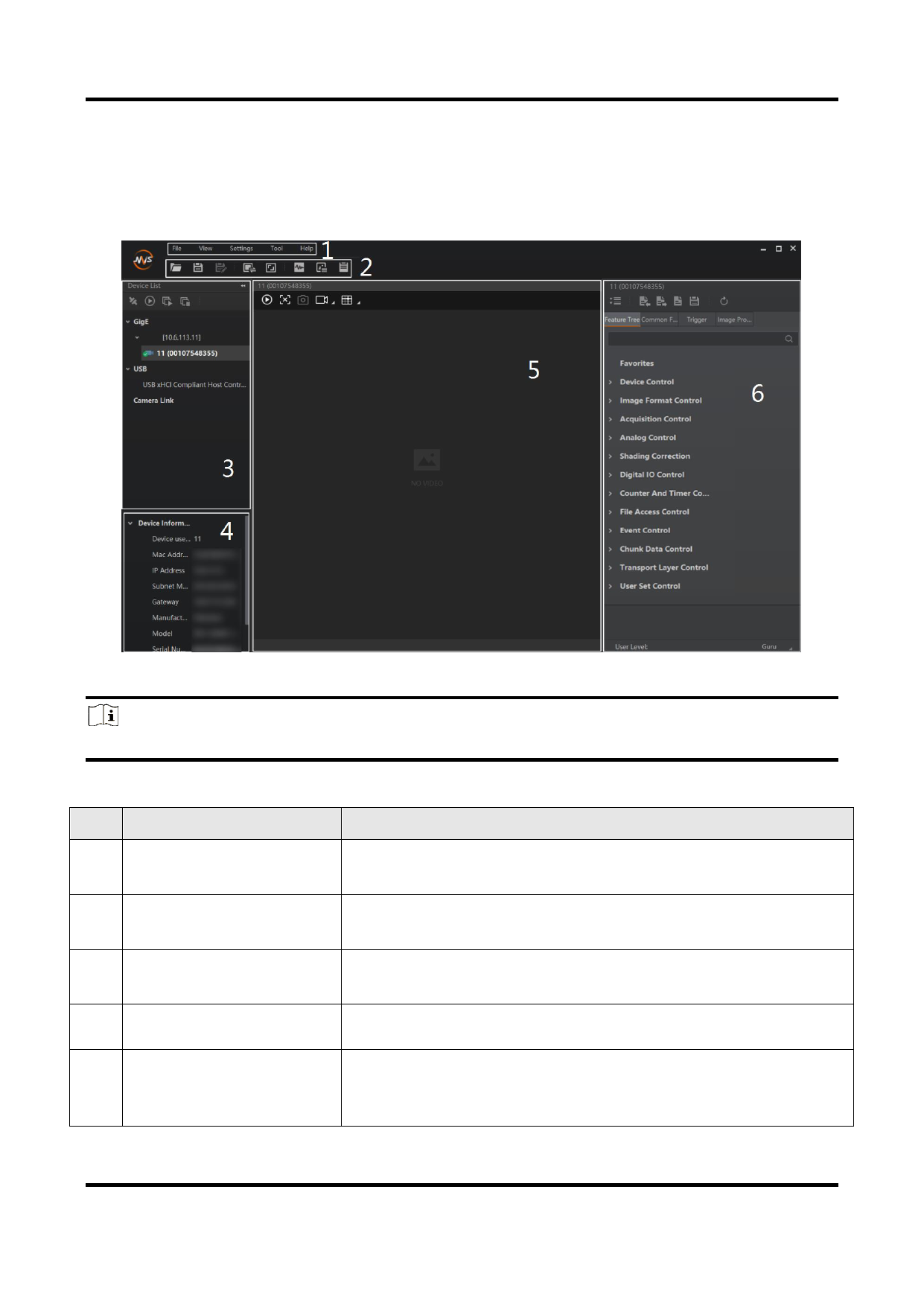

Figure 7-1 Main Window
Note
For specific main window of the client software, please refer to the actual one you got.
No.
Name
1 Menu Bar
2 Control Toolbar
3 Device List Panel
4
Device Information
Panel
5 Display Window
Table 7-1 Main Window Description
Description
The menu bar displays function modules, including File,
View, Settings, Tool, and Help.
The control toolbar provides quick operations for the
device.
This panel displays device list, and you can connect or
disconnect device, modify device IP address, etc.
This panel displays the detailed device information.
This area displays the acquisition images in real-time. You
can click different icons to capture and save image, record,
etc.
