GigE Area Scan Camera User Manual
8.4.2 Overlap Exposure

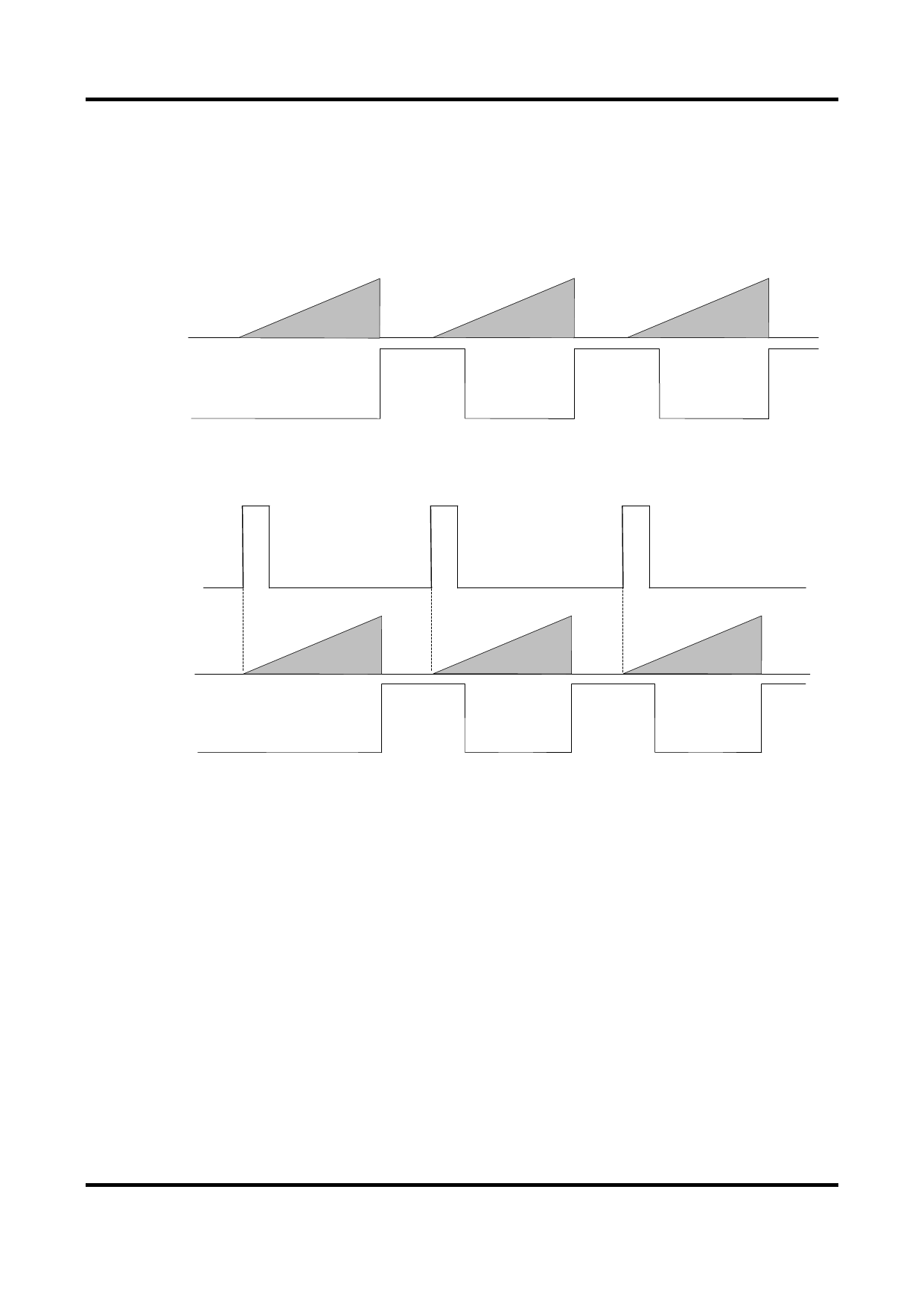

Overlap exposure refers to the overlap between the current frame exposure and the
previous frame readout. In other words, when the previous frame starts to read out, the
current frame starts to expose simultaneously, as shown below.
Sensor
Exposure
Exposure 1
Exposure 2
Exposure 3
Trigger_in 1
Frame 1
Readout
Frame 2
Readout
Figure 8-7 Internal Trigger Overlap Exposure
Trigger_in 2
Trigger_in 3
Sensor
Exposure
Exposure 1
Exposure 2
Exposure 3
Frame 1
Readout
Frame 2
Readout
Figure 8-8 External Trigger Overlap Exposure
26
