GigE Area Scan Camera User Manual
4.1.2 12-Pin P10 Connector
The 12-pin P10 connector is applicable to type V, type VI, type VII, type VIII, and type IX
devices, as shown below. However, the specific pin definitions differ by device models.
Currently, two types of 12-pin P10 connector definition are available.
43 2
11 1
5
10
12 9
6
7
8

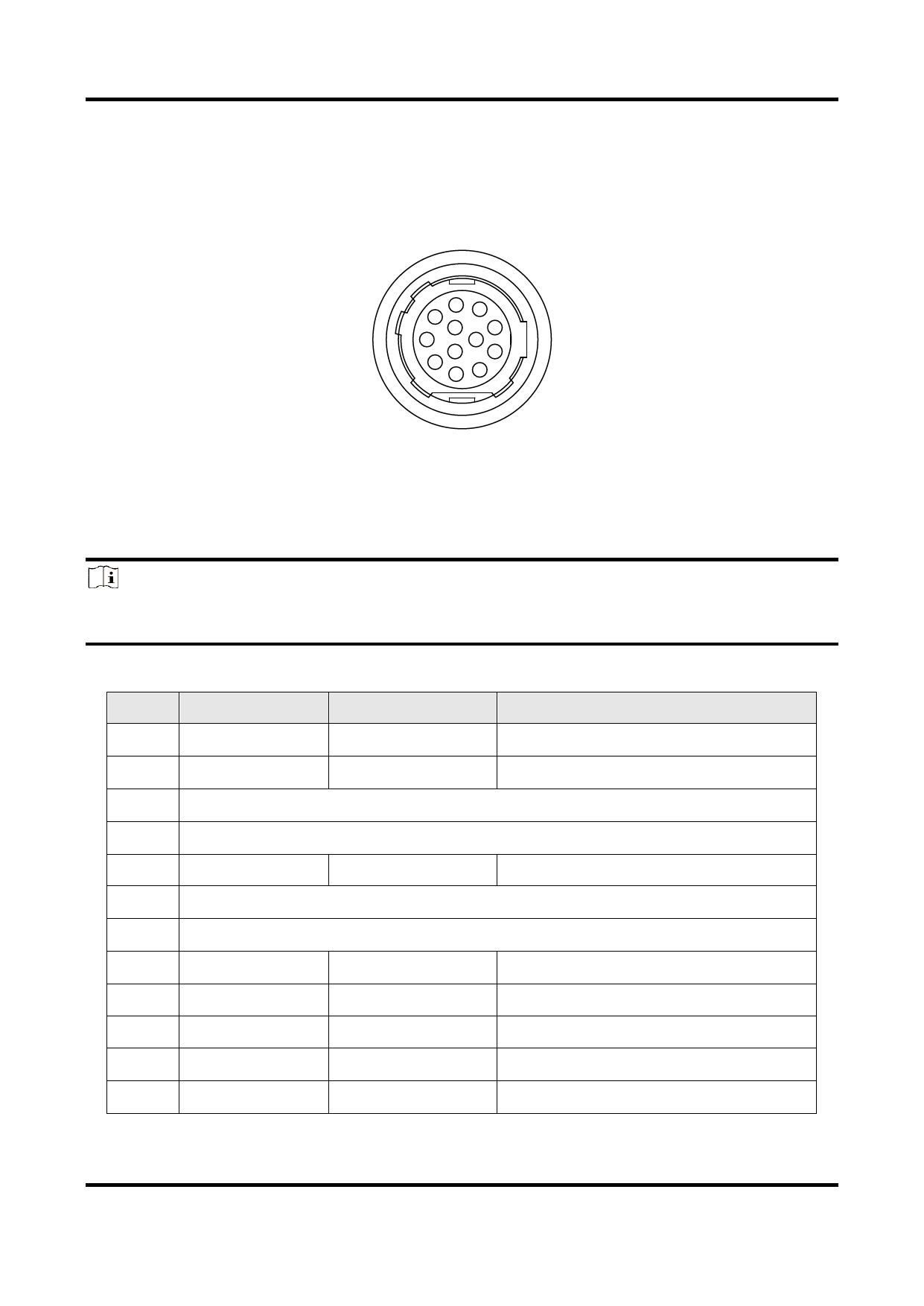

Figure 4-2 12-Pin P10 Connector
First Type of 12-Pin P10 Connector Definition
The first type of 12-pin P10 connector definition is shown below.
Note
Refer to the table below and the label attached to the power and I/O cable to wire the
device.
No.
1
2
3
4
5
6
7
8
9
10
11
12
Table 4-2 First Type of 12-Pin P10 Connector Definition
Signal
I/O Signal Source
Description
GND
Line 2-
Device’s power supply ground
DC_PWR
--
Device’s power supply
Reserved
Reserved
OPTO_GND
Line 0-/1-
Opto-isolated signal ground
Reserved
Reserved
RS-232_RX
--
RS-232 receives
RS-232_TX
--
RS-232 transmits
GPIO
Line 2+
Can be configured as input or output
OPTO_OUT
Line 1+
Opto-isolated output
OPTO_IN
Line 0+
Opto-isolated input
