There are more nesting parameters in the professional edition. Such as:
Rotate angle(The professional edition can customize to input any rotate angle, while
the standard edition can only select a fixed rotate angle(45°、90°、180°))、Auto
combine、Match material & thickness、Save remnant.(Details refer to Chapter 1.2 of
specification)
The more nesting parameters are, the more efficient nesting.
The parameters of the standard and professional edition comparison are as follows:

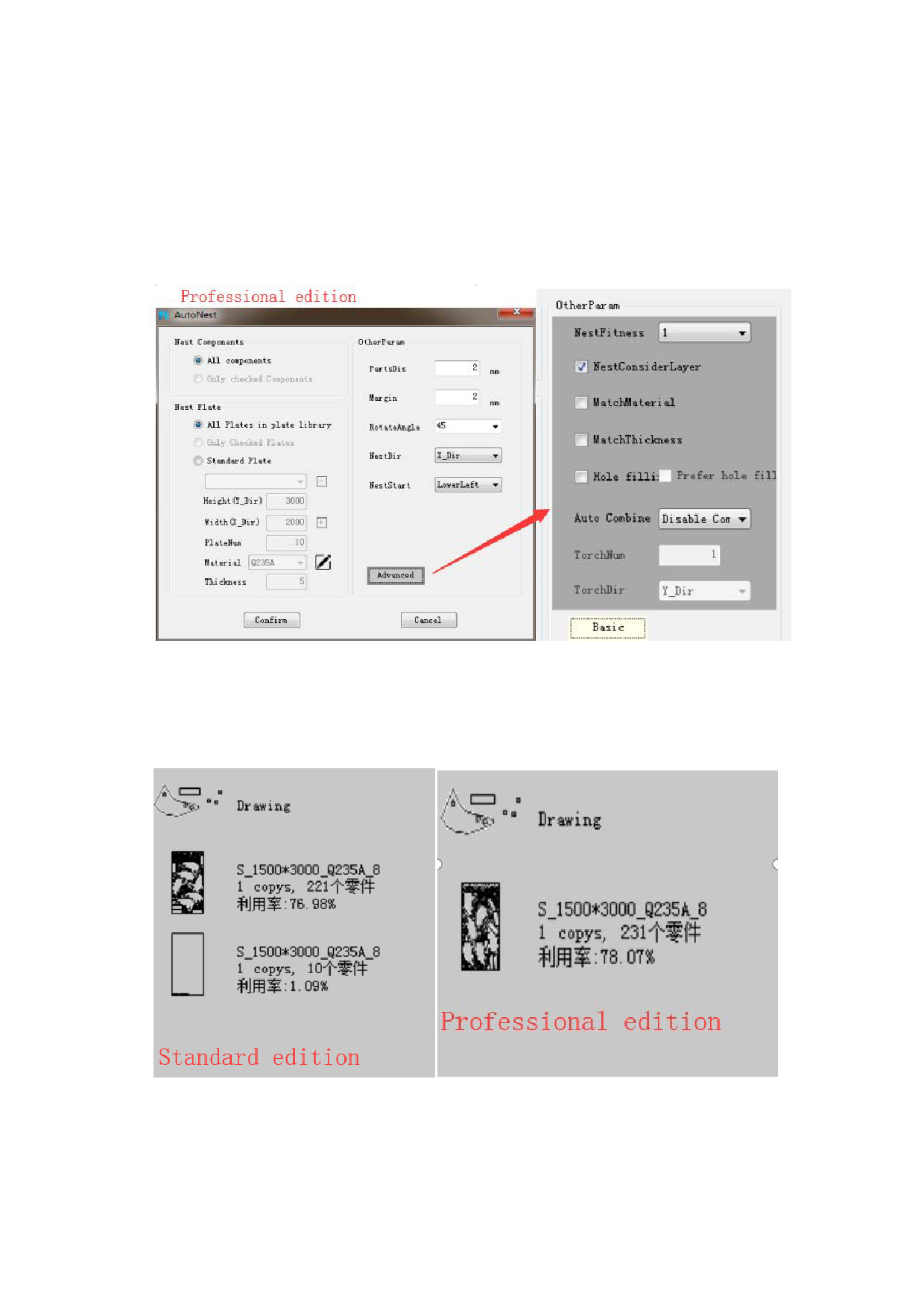

3.1 Rotate angle nesting case
Plate size: 3000*15000 (Both edition)
Rotate angle: Standard edition 45°、90°、180°（Three fixed angle）
Professional edition 5° (Customize rotate angle)
Parts: QTY 231 (Both edition)
As shown above, the standard and the professional edition nest 231 parts with
different rotate angle. The nesting result of the standard edition needs two plates,
while the professional edition only needs one plate. Therefore, the professional
edition can save more material and improve the utilization rate.
