1.7.1.6 Select all outer
Select all outer
is to display outer contour of parts and
unclosed segments in drawing field, display mode (in the form of dotted line). If
parts do not discriminate internal and external module, all sections will be displayed.

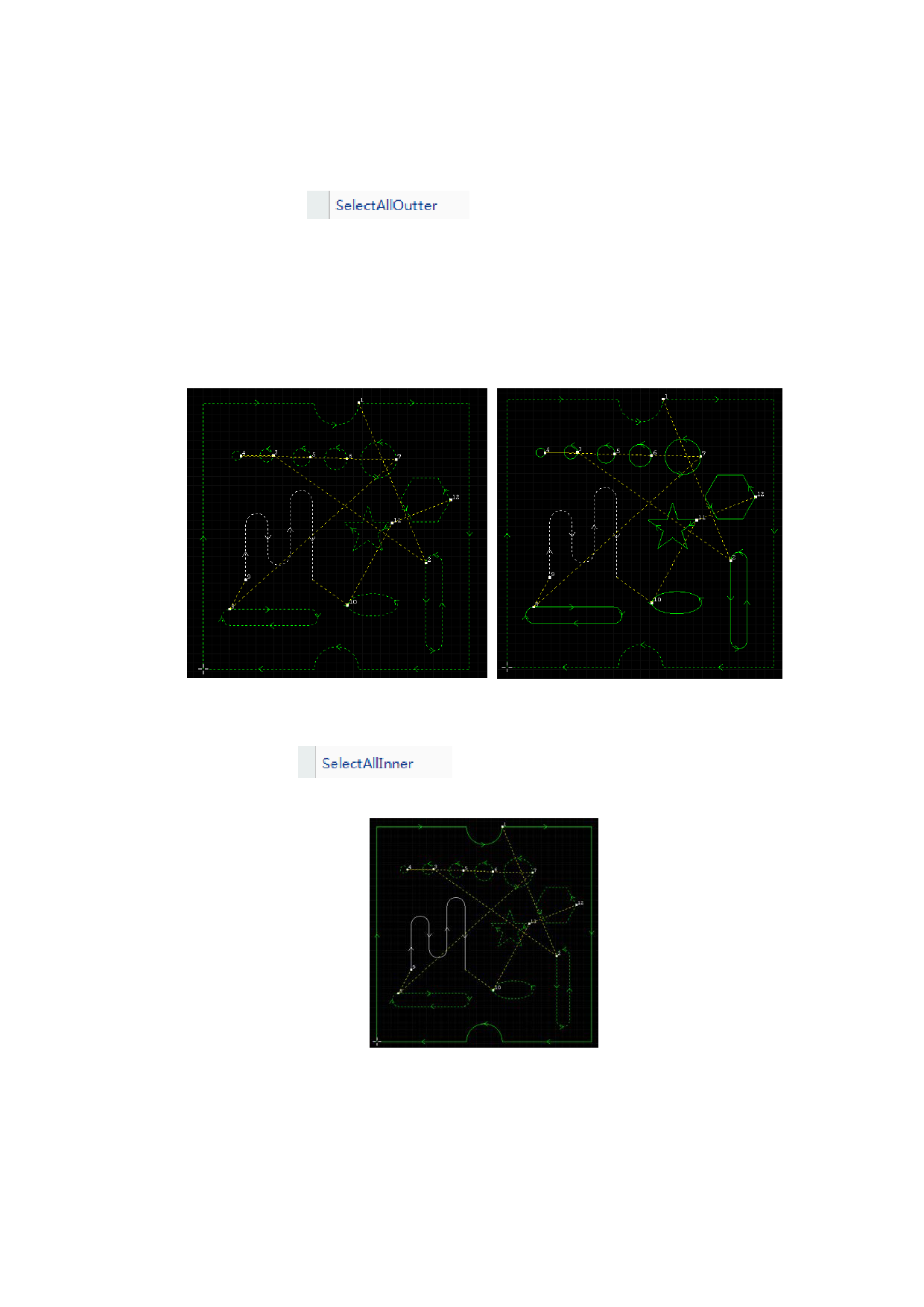

As shown in below figure, the left side displays the graph without discriminating
internal and external module, is can be found that all graphs are selected, the right
side displays that external modules are selected and displayed with discriminating
internal and external modules.
1.7.1.7 Select all inner
Select all inner
is to select inner contour of parts in
drawing field, (in the form of dotted line).
1.7.1.8 Select all texts
All texts will be selected in the form of dotted line.
