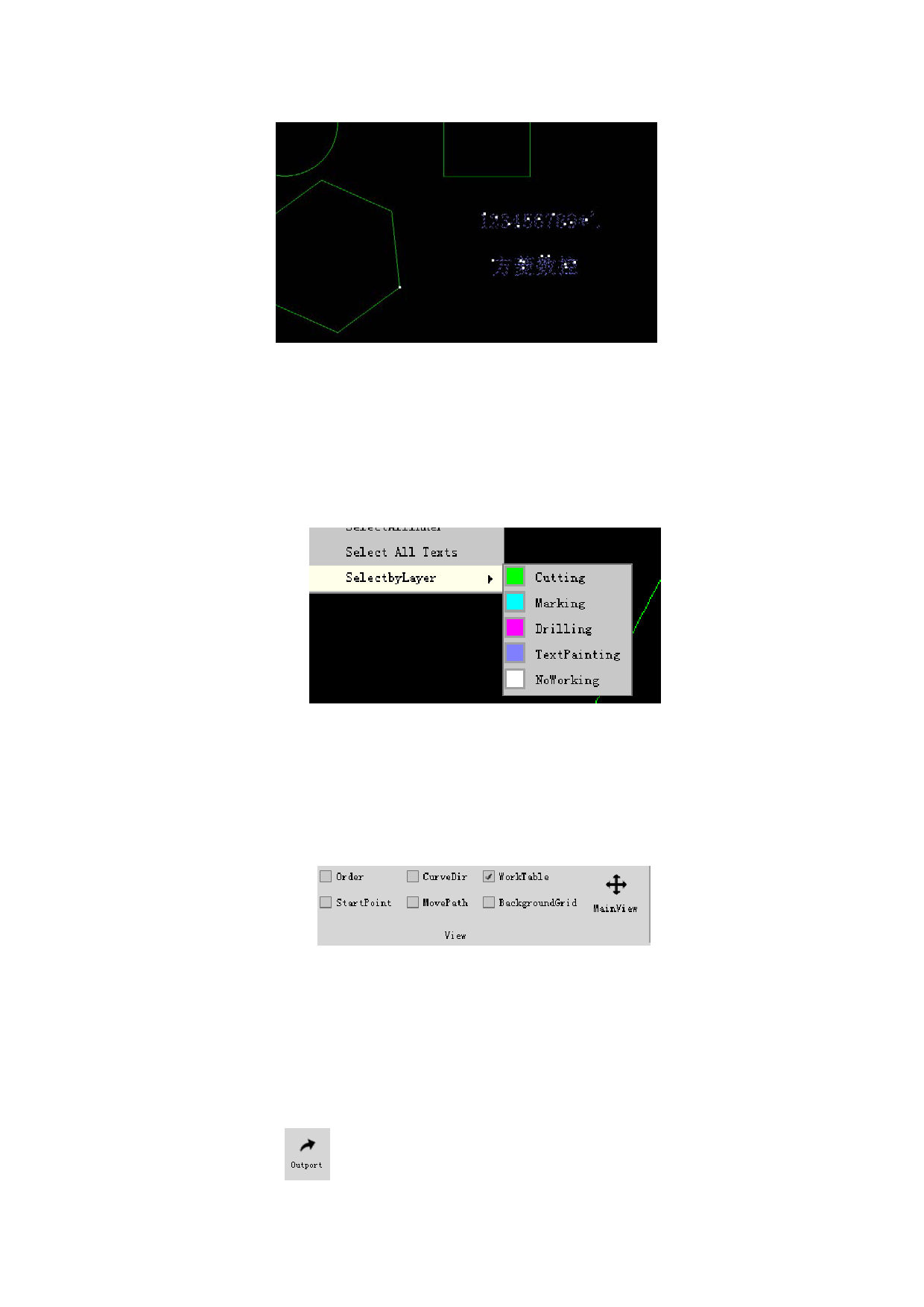

1.7.1.9 Select by layer
There are five layers in the software: cutting、marking、drilling、text、none
operation layers respectively. Select by layer means to select the parts or components
of the selected layer.
1.7.2 Seven display option switches:
Display “Order”、 “Start Point”、 “Curve Direction” 、“Move Path”、
“Work Table”、 “Background Grid” and “Main View”. The “Move Path”
displays color and line shape, which can be set in the system parameters, and see
details in the system section. Users can check the function as needed.
1.7.3G Code
17.3.1 Export
For the edited graphic file, it can be exported as txt、nc and cnc format to save.
Click “Outport”
to export processing G code.
