2.1.1.2 Ring array

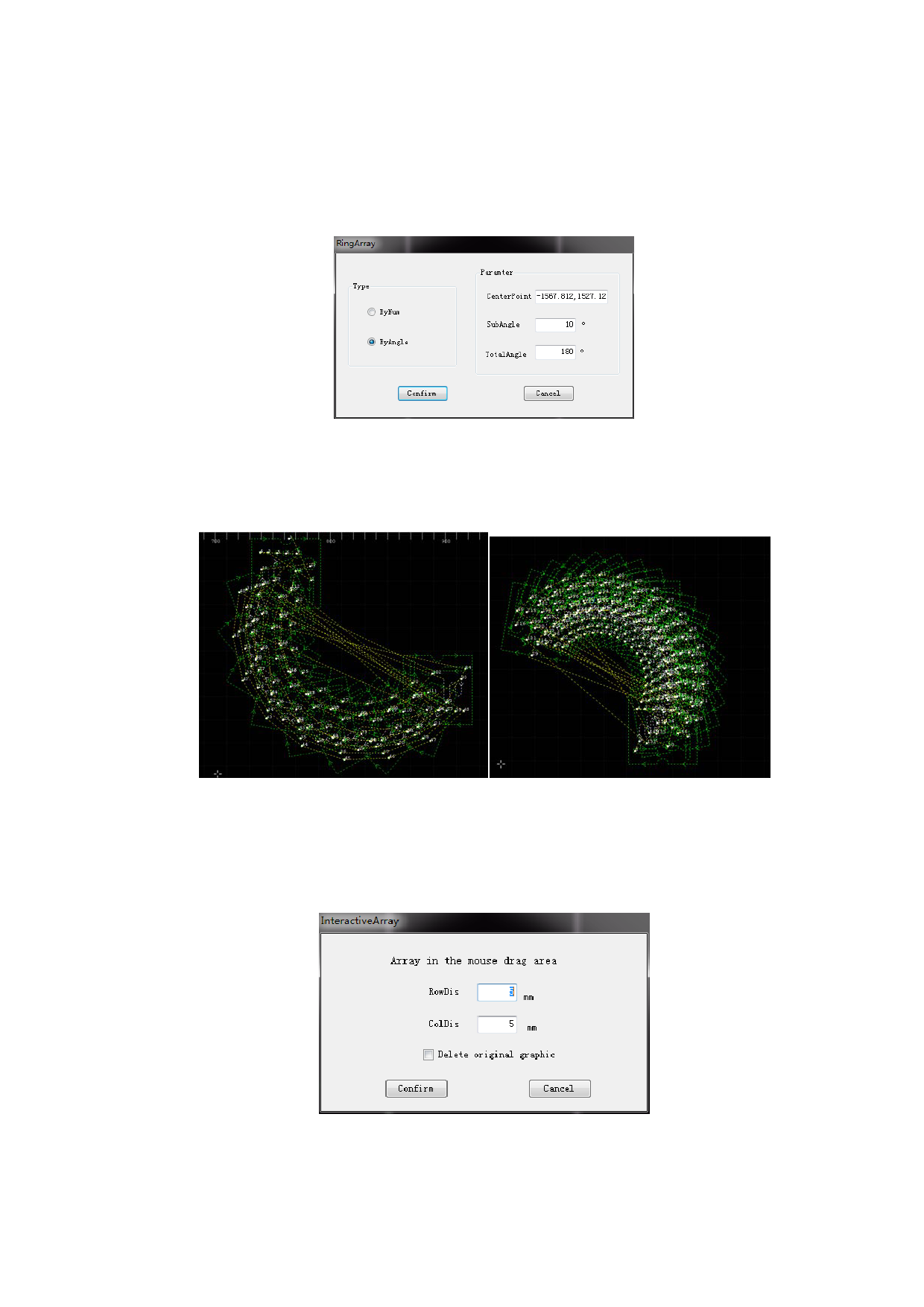

Ring array needs to first assign array center position. After assigning, parameter
input interface of ring array will pop up:
Ring array includes quantity and spacing angle based array: Quantity based is to
array according to the quantity. Angle based array is to array based on spacing angle.
The left side of below figure is to array based on quantity, with array angle 180
degrees. Right side is based on spacing angle, with array angle 180 degrees.
2.1.1.3 Interactive array
Interactive array can be arrayed within a specified area by dragging the mouse.
As shown in the following figure, drag the mouse to generate an array in the
specified area:
