Multiple rectangular remnant: save remnant A+ remnant B
Max rectangular remnant: save remnant A
The remnant will add to plate library. Users can renest or save the plate to local for
next nesting as needed.
4.3Manual nest
When the result of automatic nesting needs to be partly modified, manual
nesting operation can be selected.

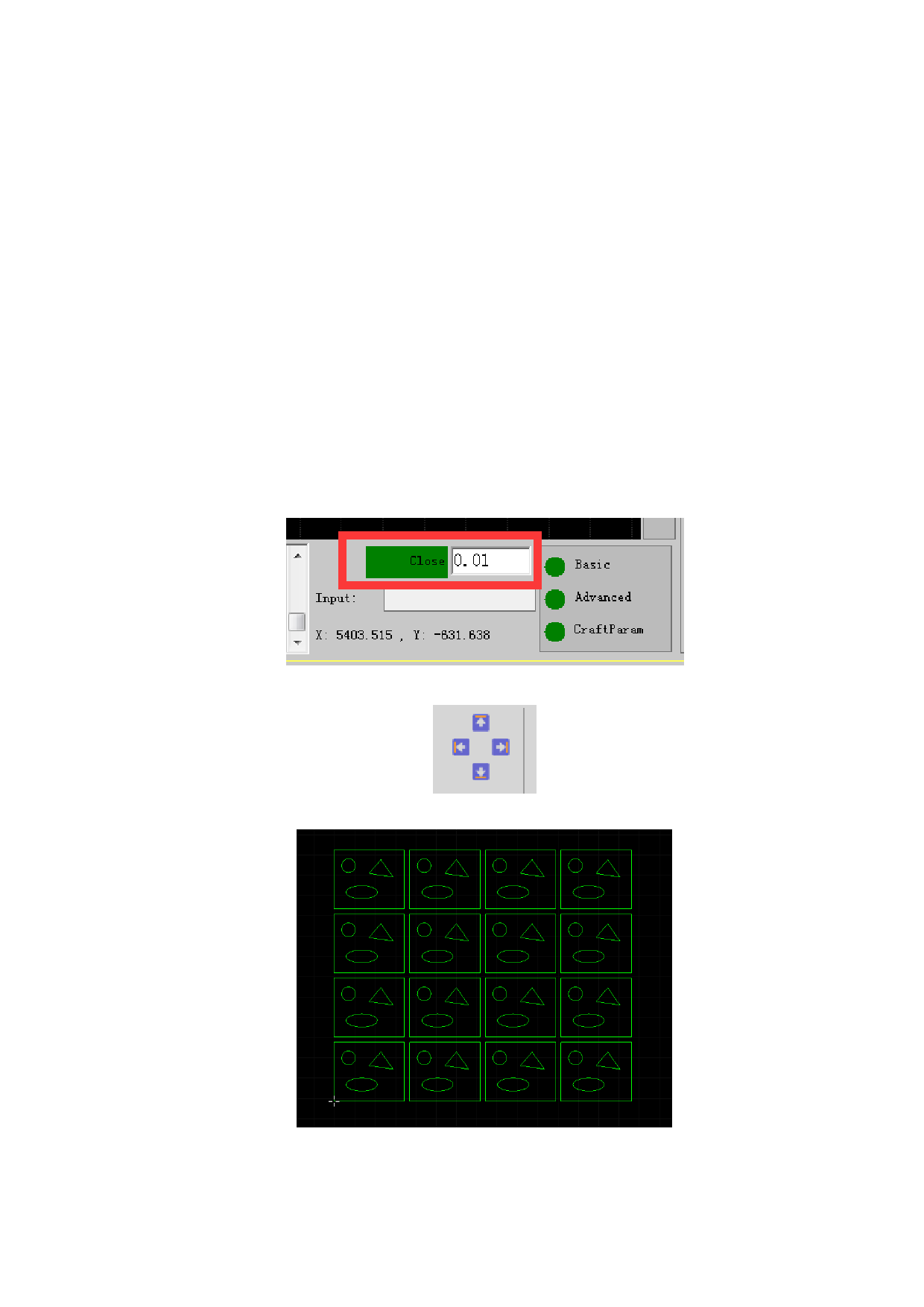

4.4Close
If the selected graphs need common edge operation after nesting, please select
graphs that need common edge. First conduct close operation of graphs, the default
is 0.01mm.
Approaching operation includes 4 approaching modes as follow:
Effect of approaching is shown as below.
Before Close
