Operation Manual of WEICHAI GENSET
Alternator menu
6020MKII
Alternator

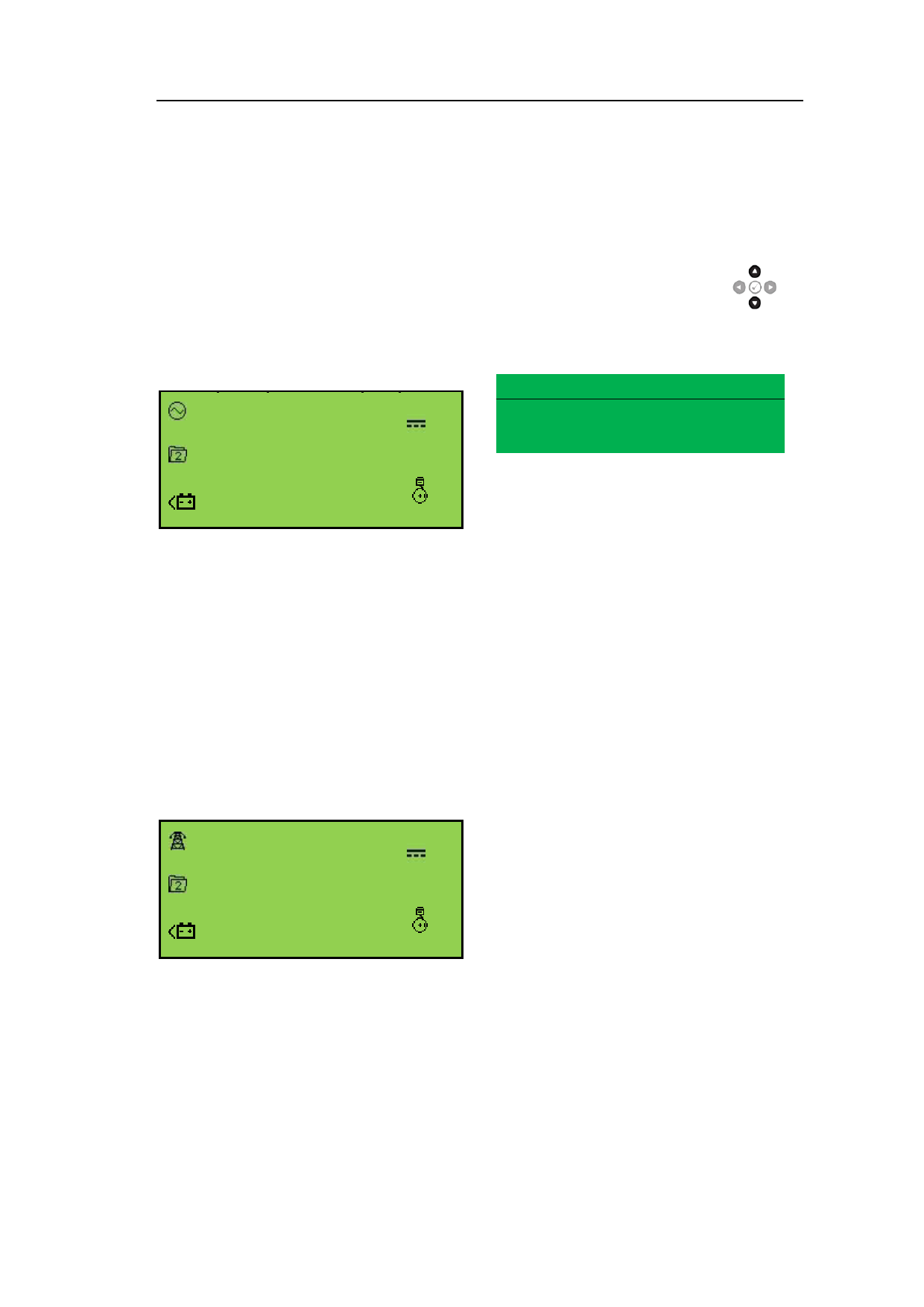

The interface contains the values of the
alternator detected by the controller
voltage input.
L1N 230
V
L2N 230
V
L3N 230
V
Alternator voltage (ph - N)
Alternator voltage (ph - ph)
Alternator frequency
Mains supply (only applicable to
DSE6020 MKII)
The interface contains the values of the
mains supply detected by the controller
voltage input.
L1N 230
V
L2N 230
V
L3N 230
V
Mains voltage (ph-N)
Mains voltage (ph-ph)
Frequency of mains supply
7320MKII
Including major electrical values,
measurements or inputs of voltage and
current from the controller.
Press the up or down button
to
view different parameters of the
alternator.
Alternator
50.0 Hz
Alternator phase voltage (ph-N)
Alternator wire voltage (ph-ph)
Alternator frequency
Alternator current (A)
Alternator phase load (kW)
Total alternator load (kW)
Total alternator phase load (kVA)
Total alternator load (kVA)
Single-phase power factor of alternator
Average power factor of alternator
Alternator phase load (kvar)
Total alternator power (kvar)
Cumulative alternator load (kWh, kVAh,
kvarh)
On-load sequence of alternator
Alternator phase sequence
Normal value of alternator Nominal
Effective configuration parameters of
alternator
Mains supply (only applicable to
DSE7320 MKII)
Mains current and functional monitoring
are only valid when the CT has been set
in the software and installed on the load
sideIncluding major electrical values,
measurements or inputs of voltage and
current from the controller.
35
    "
