Operation Manual of WEICHAI GENSET
3 Control Panel Operation
Overall introduction
perform maintenance on the system, it is
recommended to turn off the power
supply or put the controller in the stop
mode.

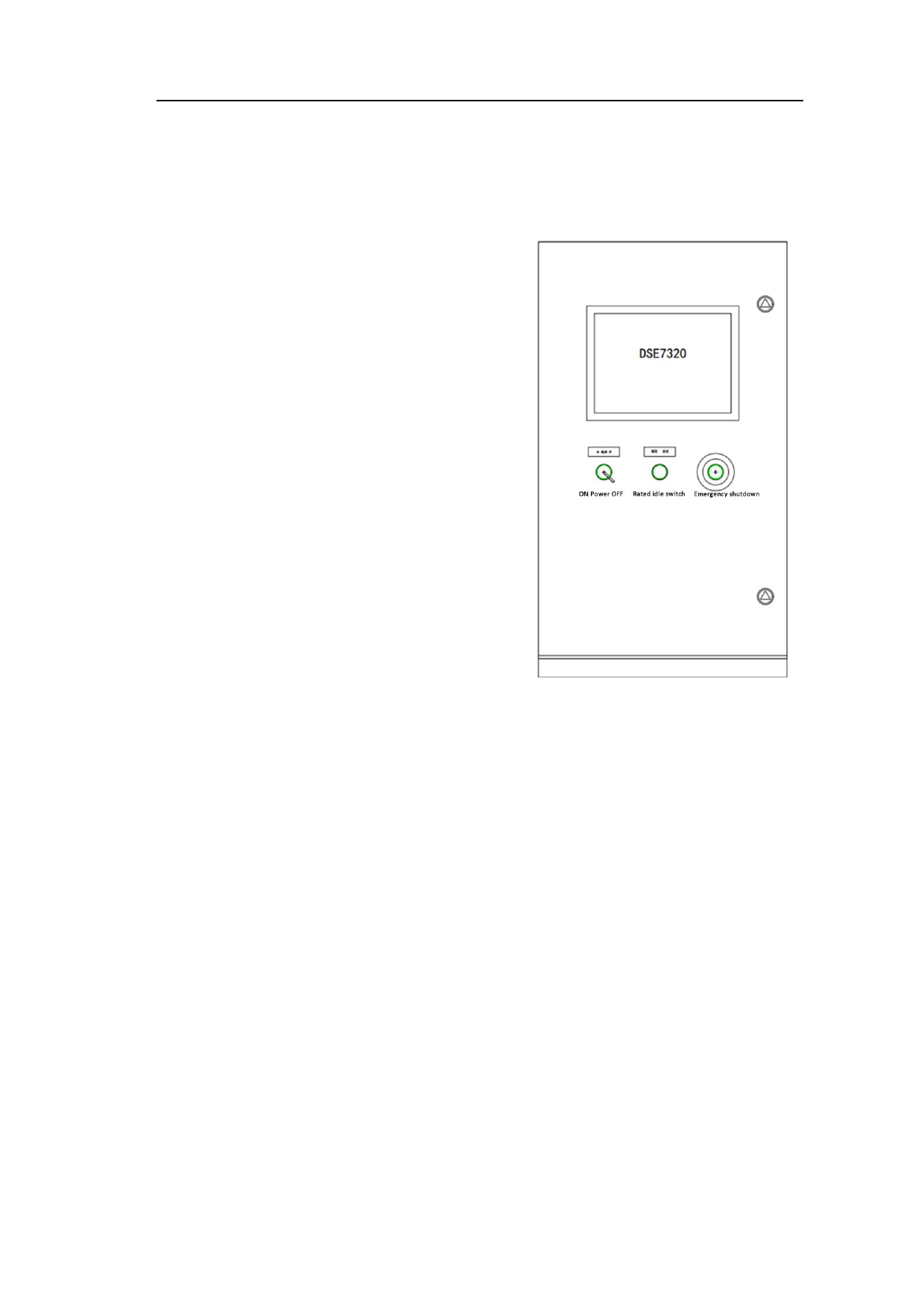

The control panel of generator set is
designed and manufactured for Weichai
alternators of each power section. It is
designed with full consideration of easy
operation and complete functions.
There are special control modules for
generator set on the control panel,
which can display water temperature, oil
pressure, oil level, rotating speed,
battery voltage, working time, power
generation voltage, power generation
current, power generation frequency,
active power, reactive power and mains
supply. When the generator set has such
symptoms as high alternator water
temperature, low oil temperature, low
oil level, overspeed, overvoltage,
undervoltage, over-frequency and
underfrequency, the control panel will
send out corresponding audible and
visual alarm signals. When the generator
set has such symptoms as excessively
high water temperature, excessively low
oil pressure, overspeed shutdown,
overcurrent, overload, and short circuit,
the control panel will also send out
corresponding audible and visual alarm
signals, and the generator set will be
shut down. Please read the Manual
carefully when operating the control
panel, and perform operations in strict
accordance with regulations of the
Manual.
Note: The controller may send a signal to
start the engine due to external
influence. Therefore, the engine may be
started without warning. If you are to
