EzCad2UNI User’s Manual

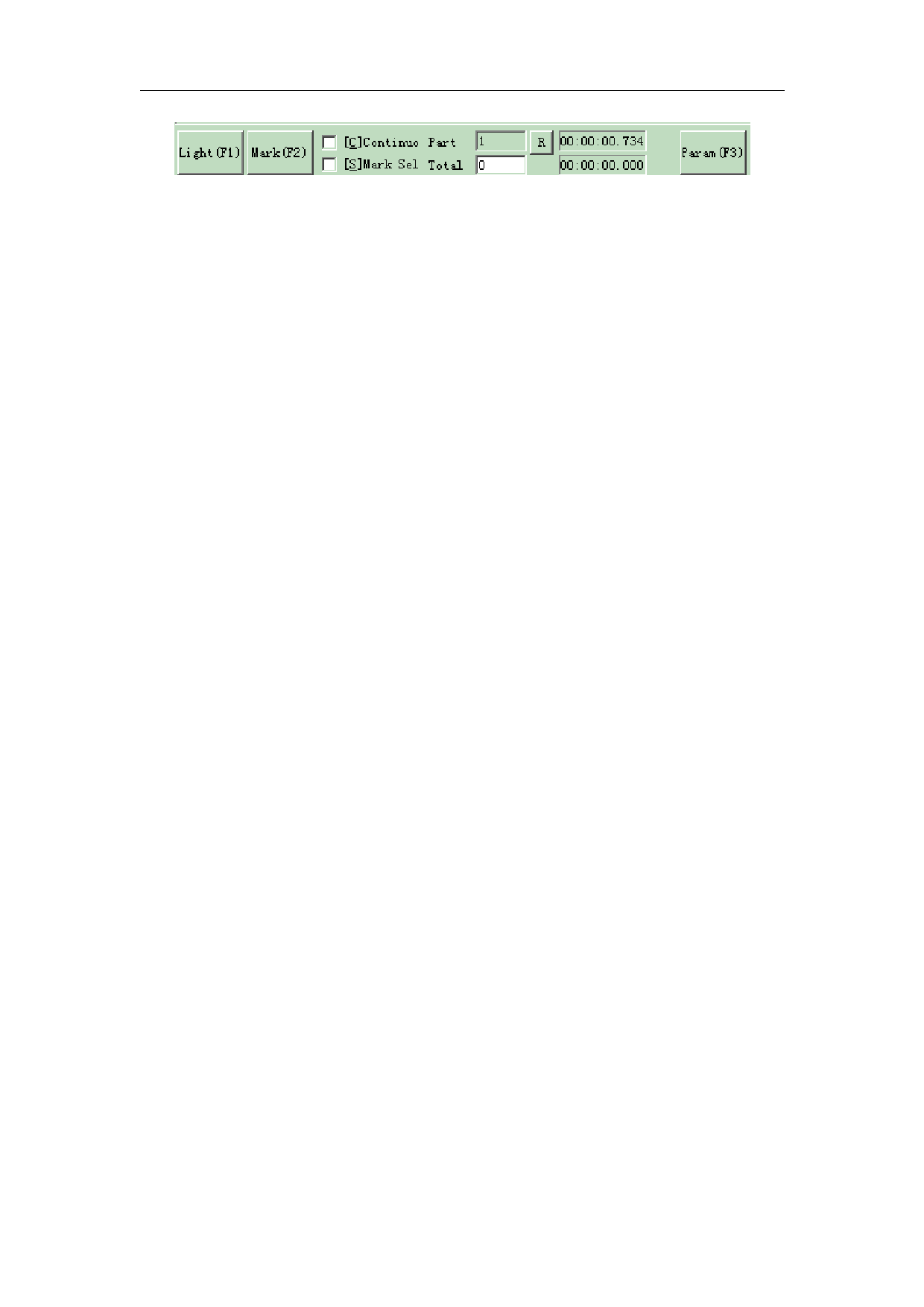

Figure 10-17 Mark-Control Bar
Light: This item is used to mark the frame of the object without laser output so that users are
convenient to orient the workpiece. This function is available in those laser machines which have
guide light.
Key “F1” is the shortcut key of this function for guide light show.
Mark: to execute marking
Key “F2” is the shortcut key of this function.
Continuous: mark the objects repeatly until user stop the mark
Mark Selected: only those selected objects would be marked
Part: the total counts that the mark command has been executed
Total: The total counts that the mark command should be executed. The value would
decrease 1 automatically after the mark command has been executed each time. It is unavailable
under the mode of Continuous Marking. When in marking process, if the amount number is more
than 1, the marking operation will not stop until the marking number is 0.
Parameter: machine parameter
Key “F3” is the shortcut key of this function.
10.4 Machine Parameters
10.4.1 Field Parameter
See Figure 10-18
