EzCad2UNI User’s Manual
Figure 8-38
Delete: delete files.
Prev, Next: change the order of files.
Modify: change file selected and IO control conditional.
If click the name of files, show the file content in the multifilemark dialog box right. If
double click the name of files, open the file, and can change the content and parameter. Mark the
revised files after press save.
Save: save choosing files and setting IO control conditional to *.mfd.
Open: open *.mfd files.
Set IO control conditional, press mark, then board check the signal, if the signal is the same
as setting, the files with the setting will be marked. If the signal accord with some files, the file in
the front will be marked.
Generally speaking, software accepting signal is the level signal, and press mark button, the

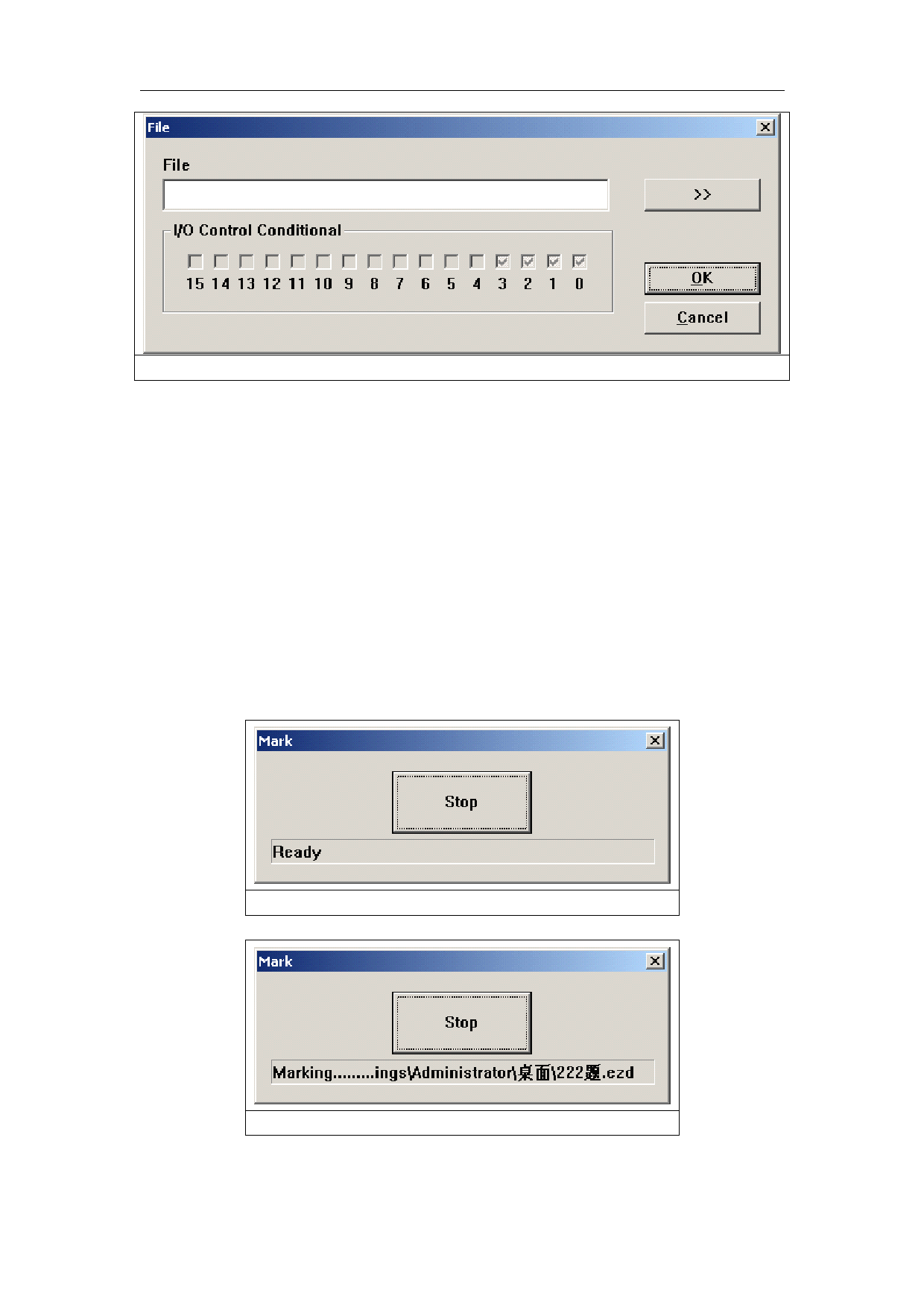

dialog box pops up as Figure 8-39. When the signal accord with setting, shows the figure 8-40,
with the name of file in the following of box.
Figure 8-39
Figure 8-40
If must the accepting signals be pulse signals, should set IO port that doesn’t show in figure
126
