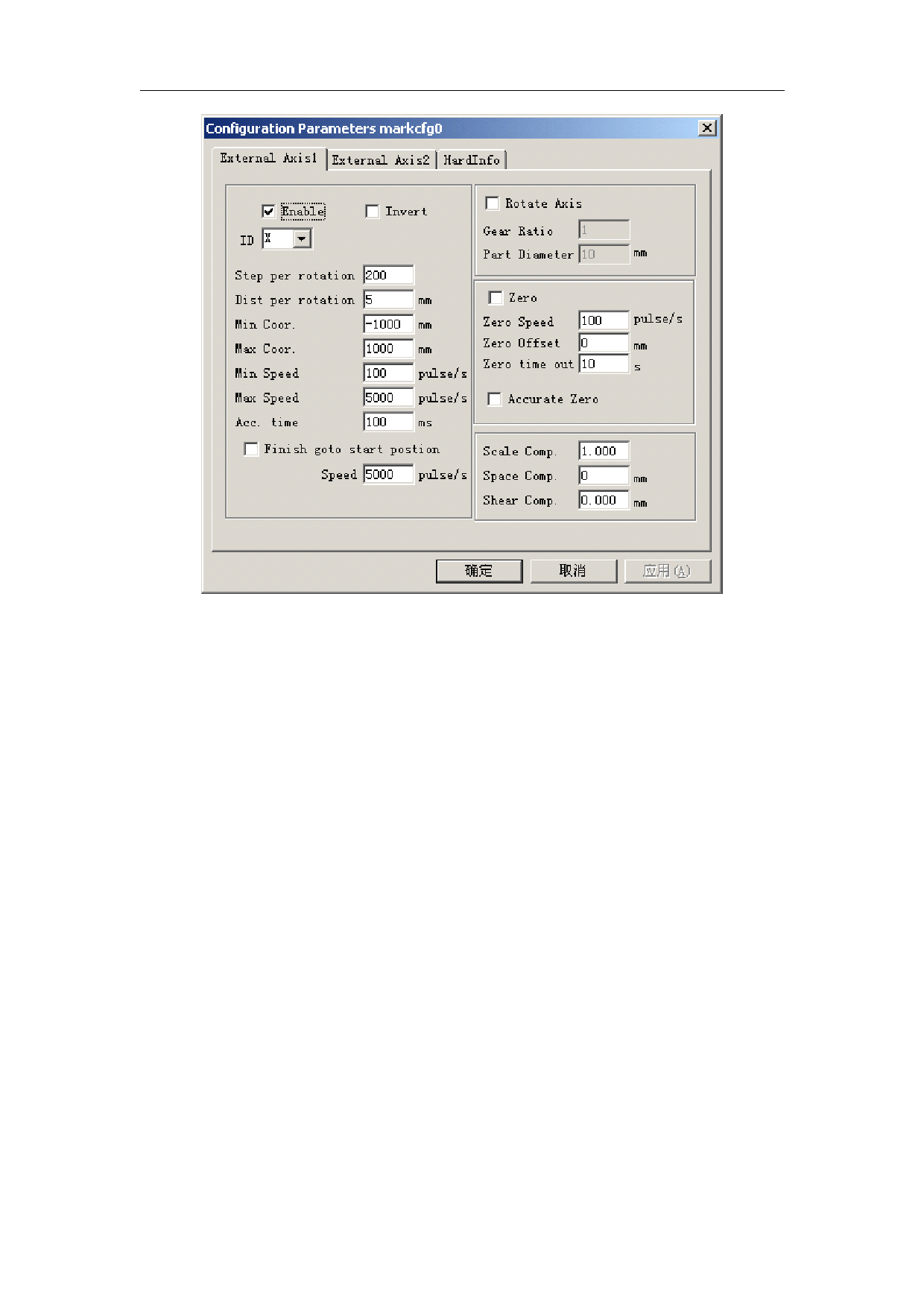

Figure 8-33 configuration parameters of expansion axis
The definition of each parameter:
Enable: Enable current expansion axis.
ID: The current expansion axis will be used as axis X/Y/Z.
ID is X, the figure will be split in direction X to mark.
ID is Y, the figure will be split in direction Y to mark.
ID is Z, the expansion axis will move to the appointed position to mark.
Pulses per round: The pulse numbers each round that the expansion axis rotating. We can
calculate it through following formula:
X=（360/N）* n
There into:
X denotes Pulses per round.
N denotes step angle of step motor.
n denotes micro-step set by step motor driver.
Min coor: The minimum logical coordinates of expansion axis. When the object’s coordinate
of the expansion axis is smaller than the minimum coordinates, the warning message will popup.
Max coor: The maximum coordinate of expansion axis. When the object’s coordinate of the
expansion axis is greater than the maximum logical coordinates, the warning message will popup.
Coordinate value has relationship with effective move space and move direction of the the
worktable. eg:
