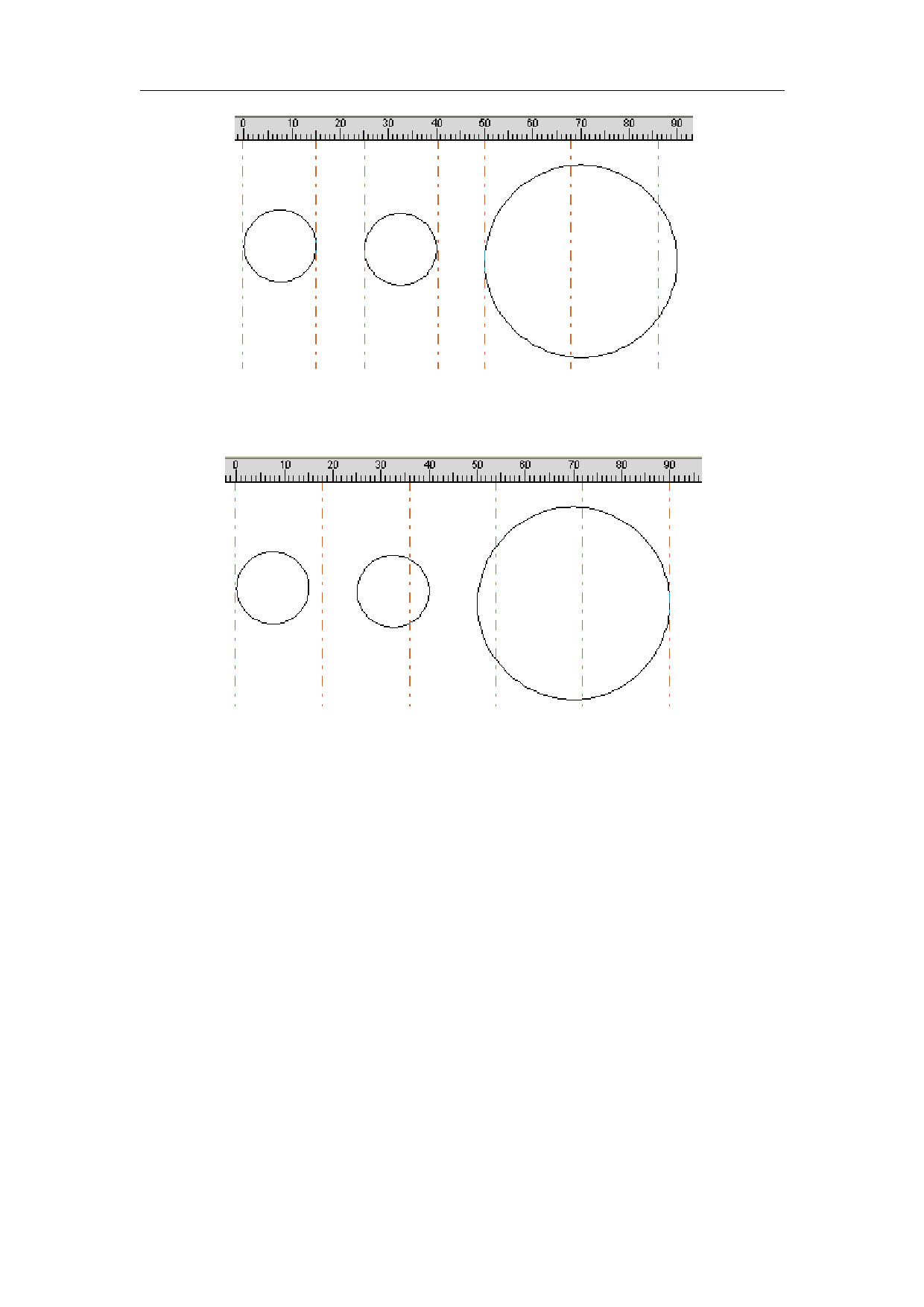

Figure 8-31 Marking without Force split selected
Figure 8-32 Marking with Force split selected
In Figure 8-31, the left two circles smaller than split size and be marked without split. The
circle on the right is greater than split size and was divided into three parts to mark. Without force
split selected, the objects smaller than split size will be marked without split and those greater
than split size will be divided to mark according the split size.
In Figure 8-32, the whole figure (three circles) was split into equal parts to mark. The object
on the split border will be divided even its size is smaller than split size.
Force all split: When there are multiple objects in the object list, all objects will be processed as
a whole one according to the split size. The objects smaller than split size will be marked first, the
rest that exceed split size will be divided to mark.
Mark by split line: after click it, will not split according to fixed size, will split according to the
split lines.
Click “parameter” button to setup parameters of expansion axis. The dialog box pops up as
Figure 8-33.
