after finishing marker.
Speed：The speed of the axis going back to the initial position after finishing marker.
Rotation axis: Select it, it's indicates that current expansion axis is rotation axis. Moving
manner is rotation; otherwise, it indicates flat content processing or Z axis locating process.
Gear ratio: Electric motor connecting axis, the reducing ratio is one. If there are reducing
setup, the reducing ratio is reducing setup ratio.
Part diameter: The workpiece need to mark currently. If expansion axis is rotation axis, part
diameter, an important parameter to count move distance, must fill in accurately.
Zero: Whether current expansion axis has zero signal. When expansion axis hasn't enabled
zero signal, it can’t set up an absolute coordinates. Therefore, marking a set of parts require
adjusting site to make every processing stay in the same site. So, the system takes expansion axis
as default origin point before processing. After processing a workpiece, the system will move
expansion axis back. In this way each workpiece will process in the same site.
Speed of Go zero: the moving speed of expansion axis looking for zero signal.
Zero time out: Set the time of expansion axis finding zero point. If it overruns it, the system
will present “overtime”.
Accurate Zero：When it is selected, the axis must gives three zero signals in go zero process;
and it isn’t selected, the axis only need one signal.
8.8 Rotate Text Mark
“Rotate Text Mark”：can solve the question the hatch lines and text independent mark when
rotate mark the hatch text，they are cannot superposition，using this function，the hatch lines and
text are marking together.
8.9 Split mark 2
“Split mark2” module is able to split joint big content. We can either choose an expansion
axis to be X direction split joint, or choose two expansion axes to be XY direction split joint
respectively. That function menu is shown in figure 8-29:

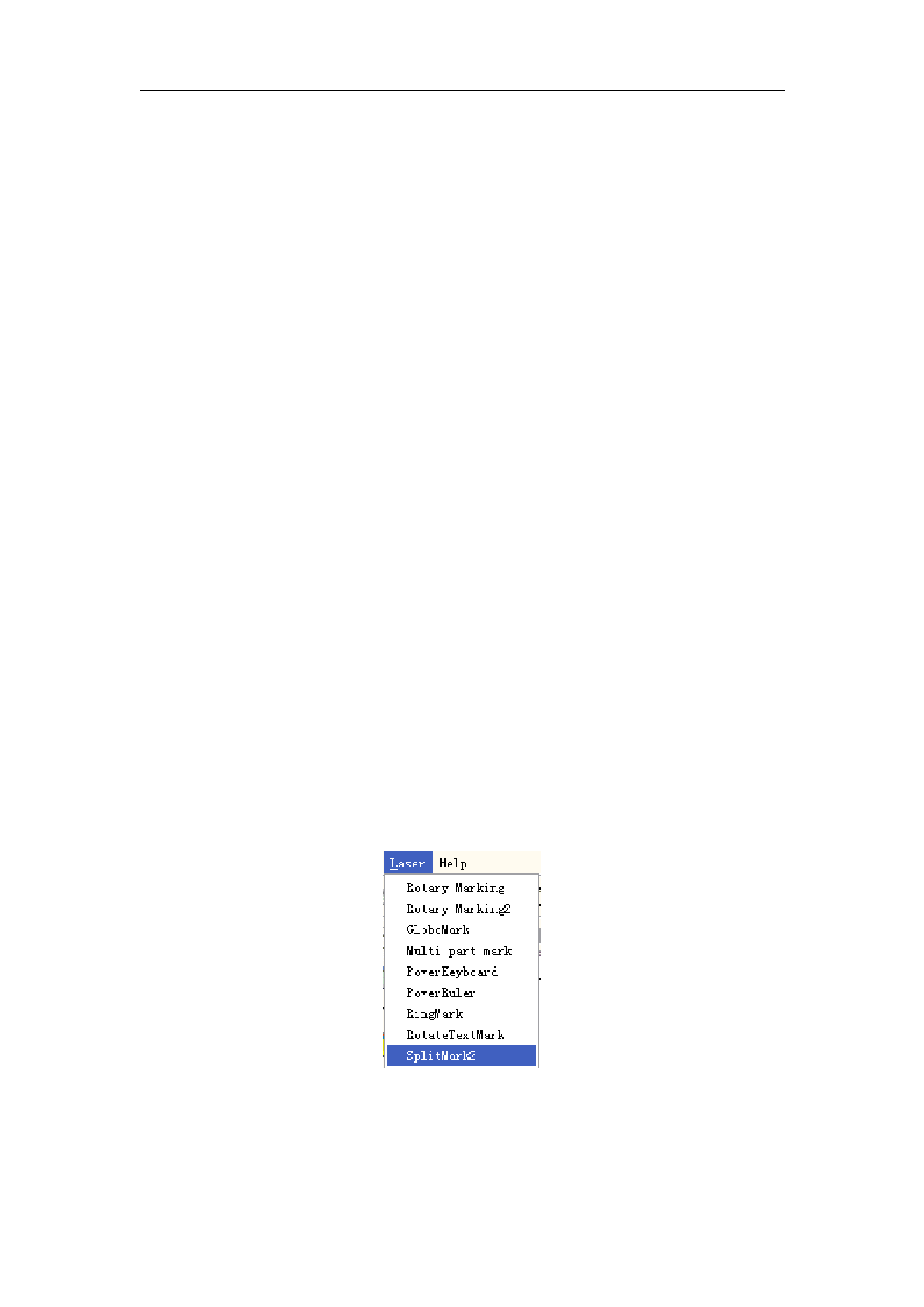

Figure 8-29 “Split mark 2” item
Its operation dialog box is shown as follows:
