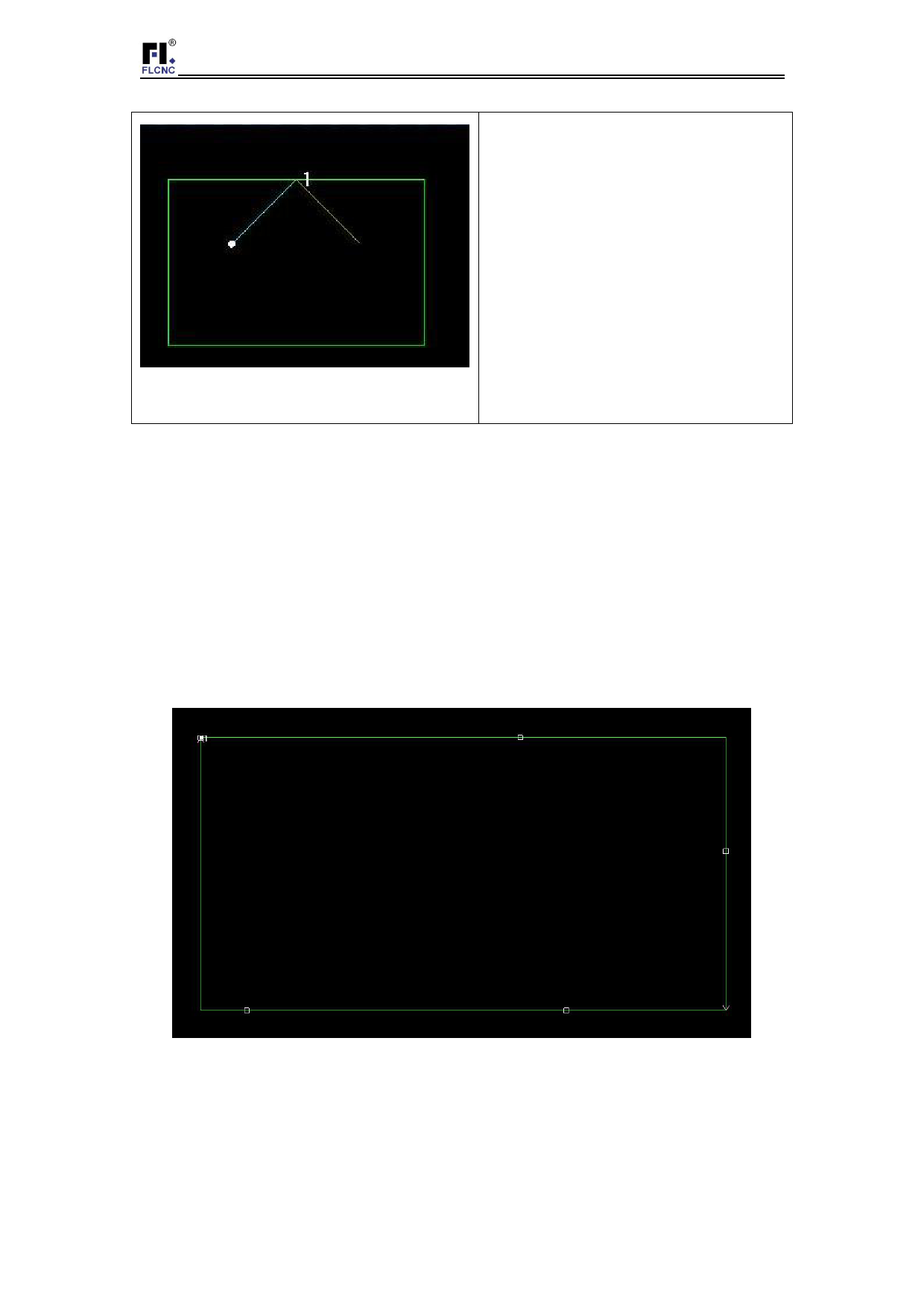

Vulva:
Move the lead to inside the outline.
When adding the lead, the outer mold
is a positive cut, introduced from the
outside and into the inner mold
For undercut, it is introduced from the
inside. Users can manually set the
undercut and yang cut for the selected
parts
8. Micro-link
To insert several small segments without cutting in the contour path, this method
prevents the part from lifting after cutting, ensuring it does not fall off after
processing. When cutting reaches this point, the power and light are turned off;
whether to turn off the gas and follow-up is determined by the parameters related to
the short-distance air movement during cutting. In the nesting software,
micro-connections are displayed as white rectangular boxes, as shown in the figure
below
The operation of "micro-link" supports "manual micro-link", "automatic
micro-link", "drawing line micro-link" and "exploding micro-link".
Manual micro-link: Set the size of the micro-link and whether to apply similar
contours, and then manually specify the location of the micro-link.
