Automatic increase compensation: set to participate in the automatic increase of
compensation for layout parts;
（6）Shared borders
All edges: After checking, all parts involved in the layout will be arranged with
common edges;
Maximum number of parts sharing a common edge: Set the maximum number of
parts participating in a common edge. This function is only valid when "all common
edges" is not checked;
Only parts of the same length and common edge are set: only parts of the same
shape are set to have a common edge, and the edges of the common edge parts are of
the same length;
Minimum number of parts with common edges: The length of the part edge set to
be shared is less than the length of the part edge that does not participate in the
common edge. This function is only valid when "only parts with the same length
share the common edge" is selected.

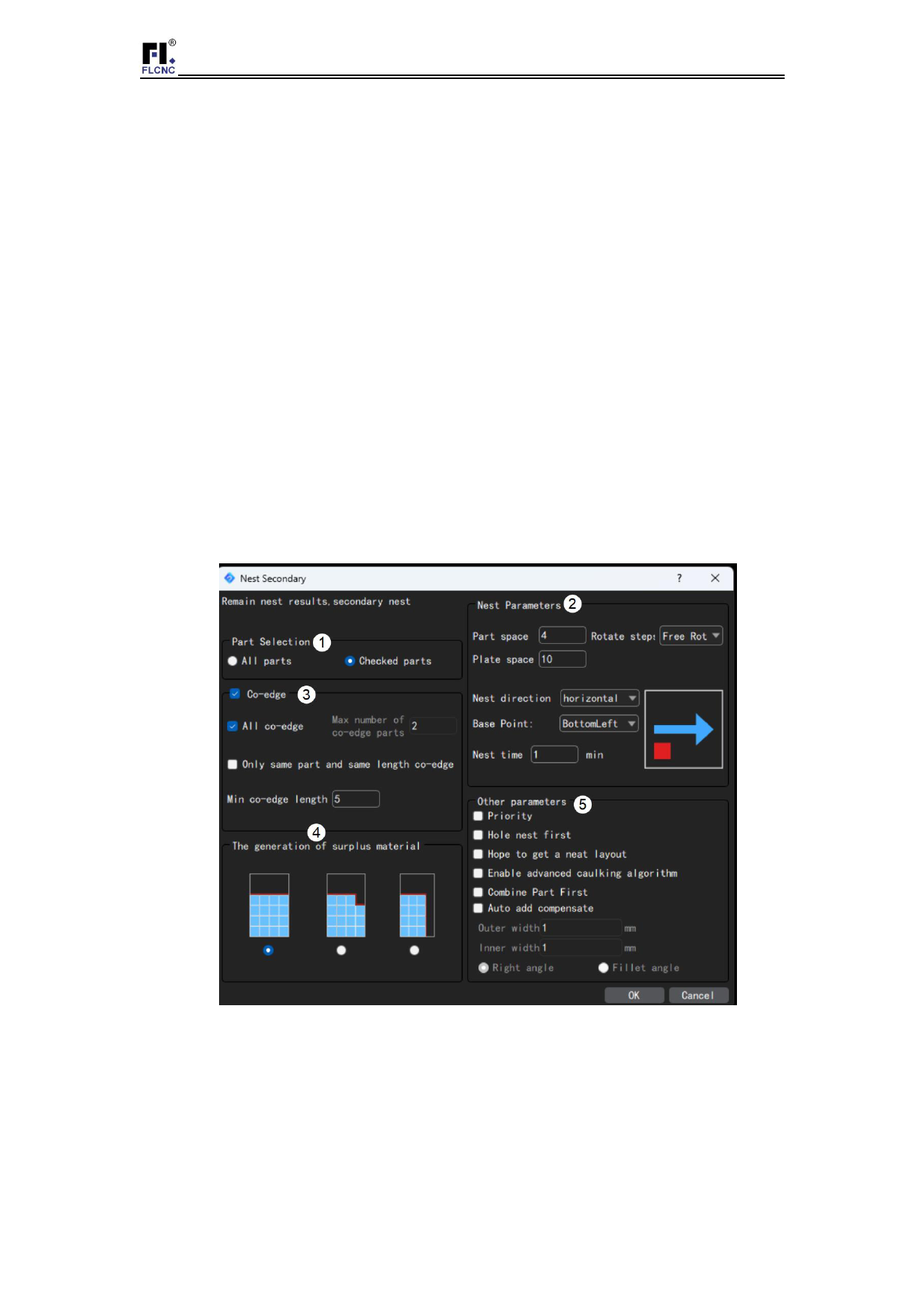

7. Secondary nesting
The secondary layout can retain the results of the already typeset area and
continue to typeset in the untypeset area
(1) (2) (3) (4) (5) For the meaning of parameters, please refer to "Automatic
sampling
." Parameter introduction
Hope for neat layout: If you select this option, the algorithm will try to
optimize and generate a neater layout according to the current layout.
Enable advanced joint filling algorithm: If this option is selected, the system
will use a more advanced algorithm to optimize the gaps between existing parts
