POWER DRIVER FOR STEPPER MOTORS
INTEGRATED CIRCUITS
TMC2225 Datasheet
The TMC2225 is a Step/Dir Driver for Two-Phase Bipolar Stepper Motors up to 2A peak - StealthChop™
for Quiet Movement - UART Interface Option.
APPLICATIONS
Compatible Design Upgrade
3D Printers
Printers, POS
Office and home automation
Textile, Sewing Machines
CCTV, Security
ATM, Cash recycler
HVAC
FEATURES AND BENEFITS
2-phase stepper motors up to 2A coil current (peak)
STEP/DIR Interface with 4, 8, 16 or 32 microstep pin setting
Smooth Running 256 microsteps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
SpreadCycle™ highly dynamic motor control chopper
Pin Selection for chopper scheme
Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
Voltage Range 4.75… 36V DC
Automatic Standby current reduction (option)
Internal Sense Resistor option (no sense resistors required)
Passive Braking and Freewheeling
Single Wire UART & OTP for advanced configuration options
Integrated Pulse Generator for standalone motion
Full Protection & Diagnostics
HTSSOP package for best thermal resistance

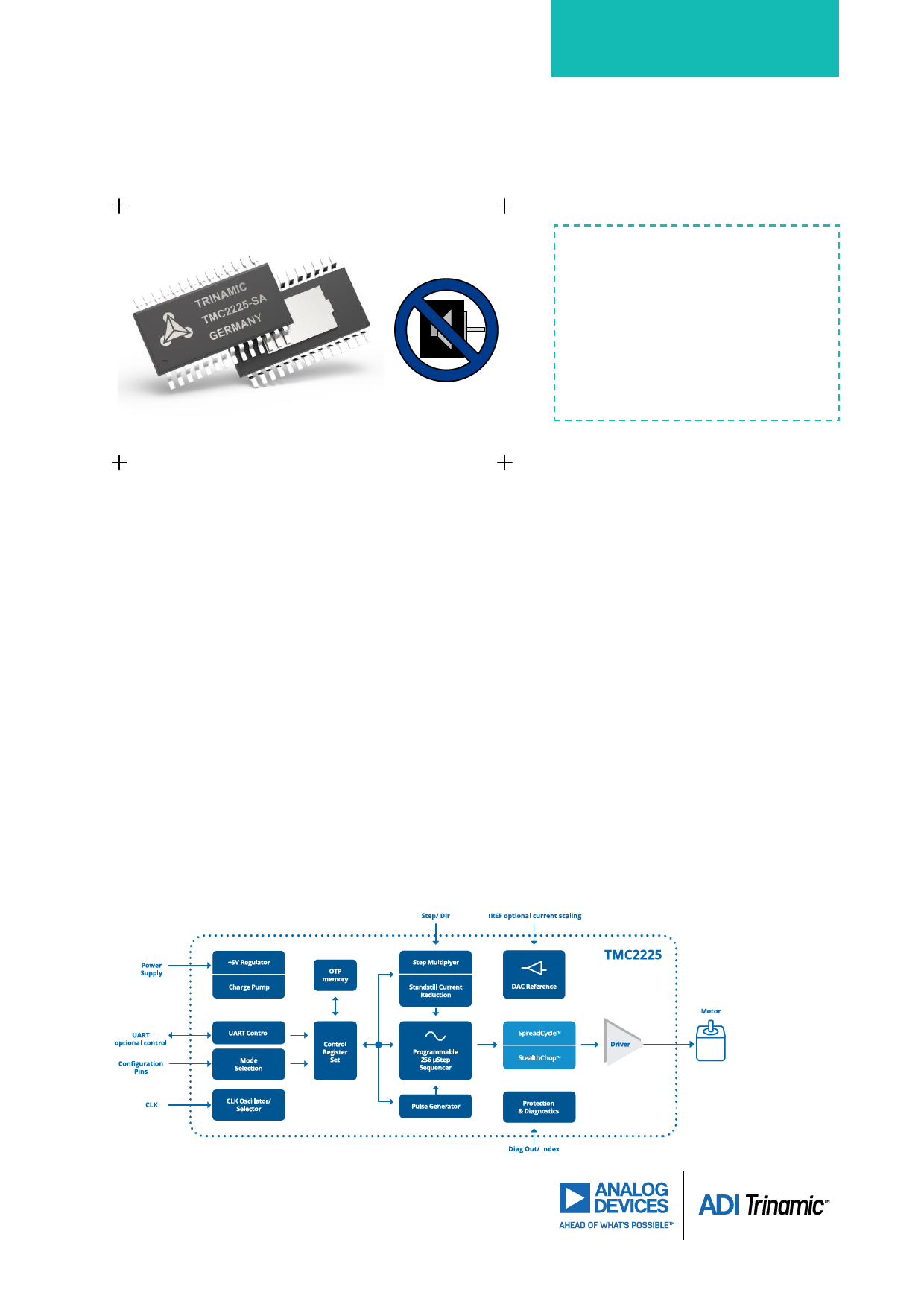

BLOCK DIAGRAM
DESCRIPTION
The TMC2225 are ultra-silent motor driver
ICs for two-phase stepper motors. Their
pinning is compatible to a number of
legacy drivers. TRINAMICs sophisticated
StealthChop2 chopper ensures noiseless
operation, maximum efficiency, and best
motor torque. Its fast current regulation
and optional combination with SpreadCycle
allow for highly dynamic motion.
Integrated power-MOSFETs handle motor
current up to 1.4A RMS. Protection and
diagnostic features support robust and
reliable operation. A simple to use UART
interface opens up more tuning and
control options. Application specific tuning
can be stored to OTP memory. Industries’
most advanced STEP/DIR stepper motor
driver family upgrades designs to noiseless
and most precise operation for cost-
effective and highly competitive solutions.
TRINAMIC Motion Control GmbH & Co. KG
Hamburg, Germany
