Fly cut direction: set the fly cut direction;
Safe flycut: Check whether the current flycut
intersects with the generated flycut path. If
there is an intersection, give up this
connection.

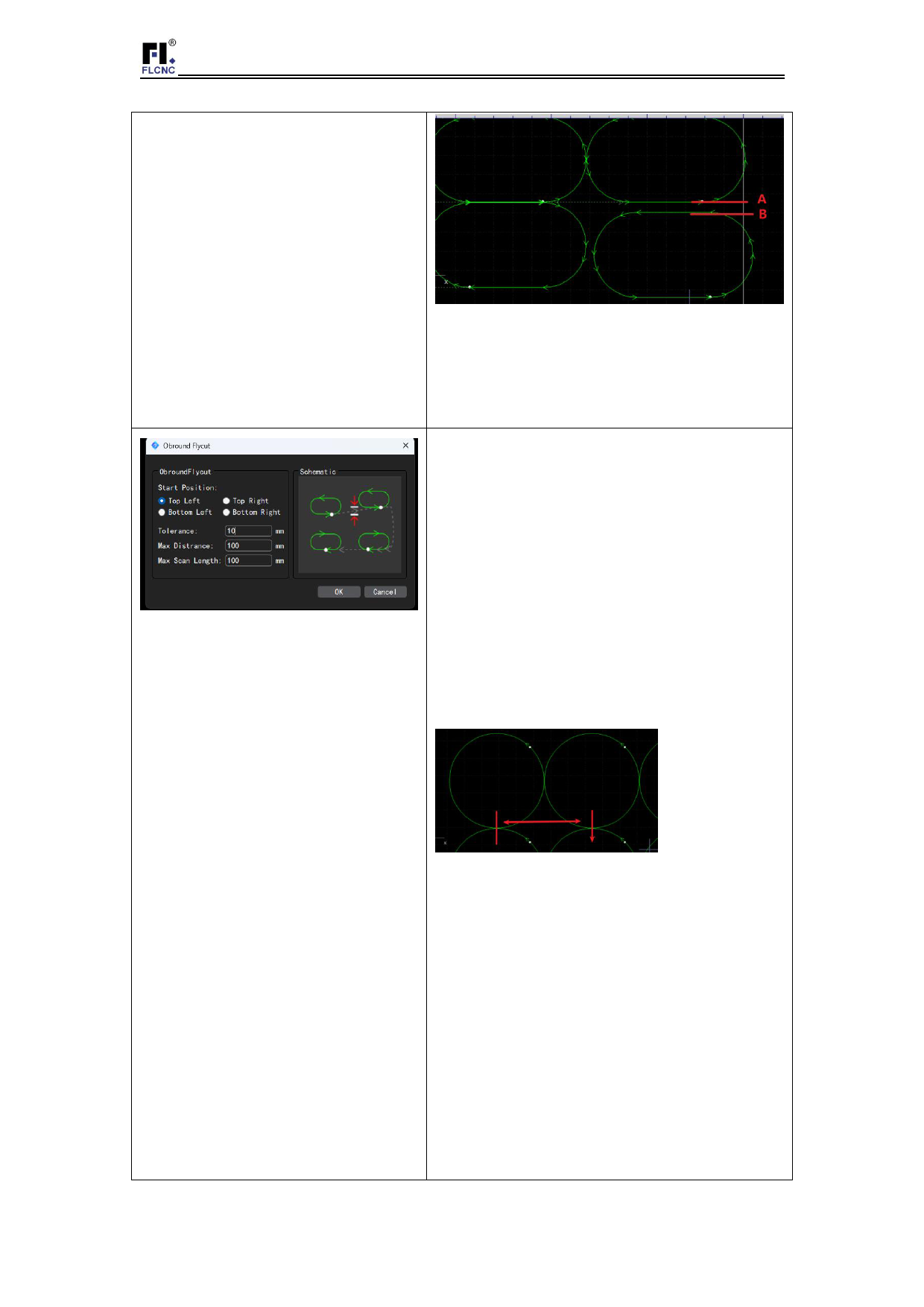

Runway flying cut
Start: Set the starting position of the contour
fly cutting;
Error: In the process of path splicing, it is used
to judge whether the starting point or endpoint
of two graphs are "close enough" to determine
whether they can be directly connected;
Maximum smooth connection distance: the
distance between the centers of two circles,
which is used to determine whether different
lines can be connected by Bezier scan lines, as
shown in the figure below:
Note: If the parameter setting is not
appropriate, different lines may not be
connected.
Maximum flight length: This parameter
determines whether two adjacent trajectories
in the same dimension can be connected by a
scan line, meaning they can be grouped
together. The maximum allowable distance
between shapes is set; if the spacing between
processed shapes exceeds this value, flight
cutting cannot be performed. This distance
refers to the spacing between the starting
