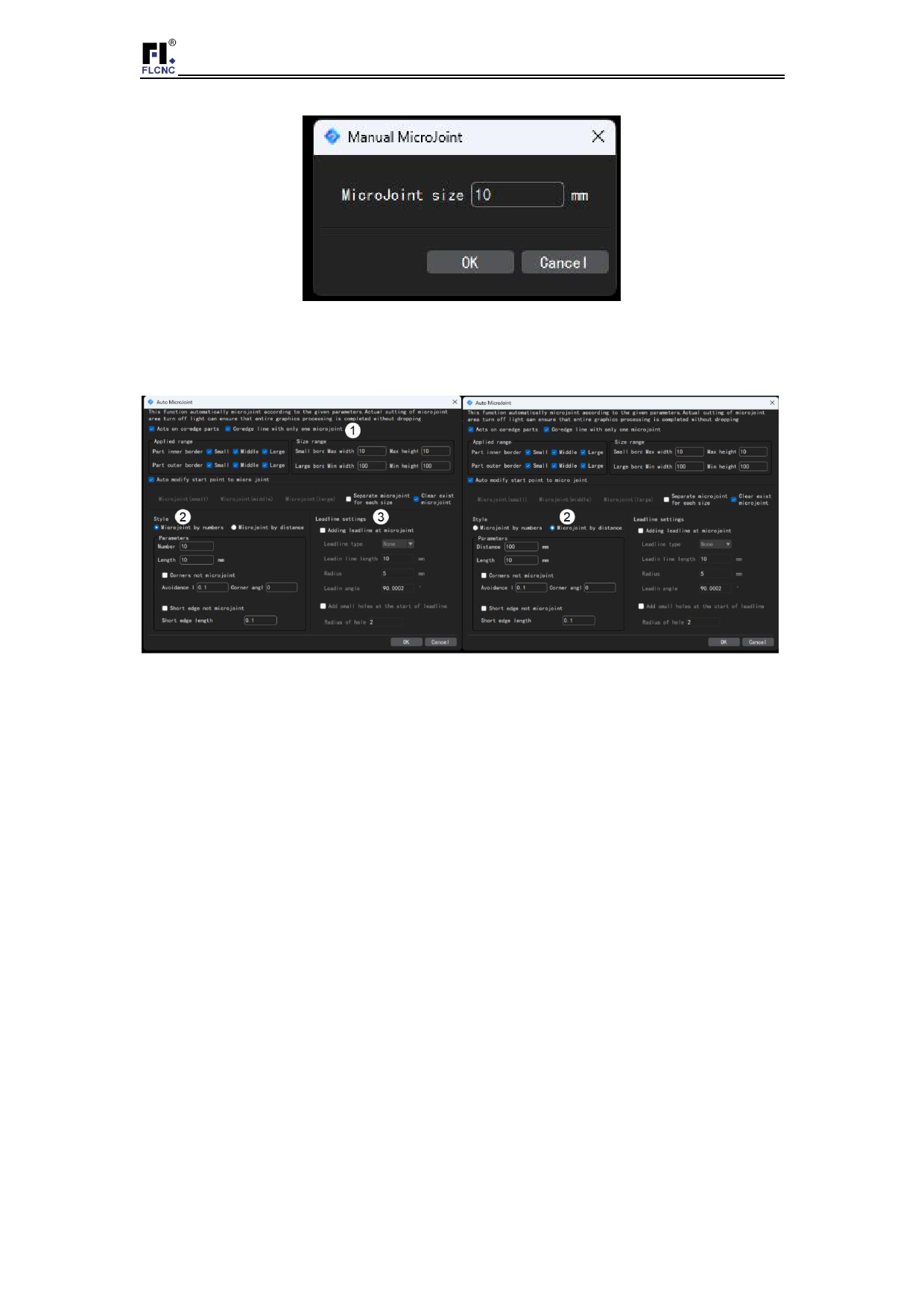

Automatic microconnection: automatically add microconnection to parts according to
the set parameters.
（1） applied range
Part inner profile: set the part inner profile micro connection, and set parameters
according to the size range
Add micro-link to the outline type of dynamic check;
Part outer contour: Set part outer contour micro connection, and set parameters
according to the size range
Add micro-link to the outline type of the motion check box.
（2） pattern
Add micro connection according to quantity: automatically add micro connection
to parts according to the number and length of micro connection;
Add micro-link and micro-link length according to the set distance interval;
No micro connection at the corner: set the corner Angle and length, no micro
connection is added;
Shortcomings are not micro-connections: if the length value is less than the set
value, no micro-connections are added.
（3）Lead setting
Add lead at micro connection: Set add lead at micro connection. Refer to the
function description of "Lead" for the meaning of lead parameters.
9. Cooling point
