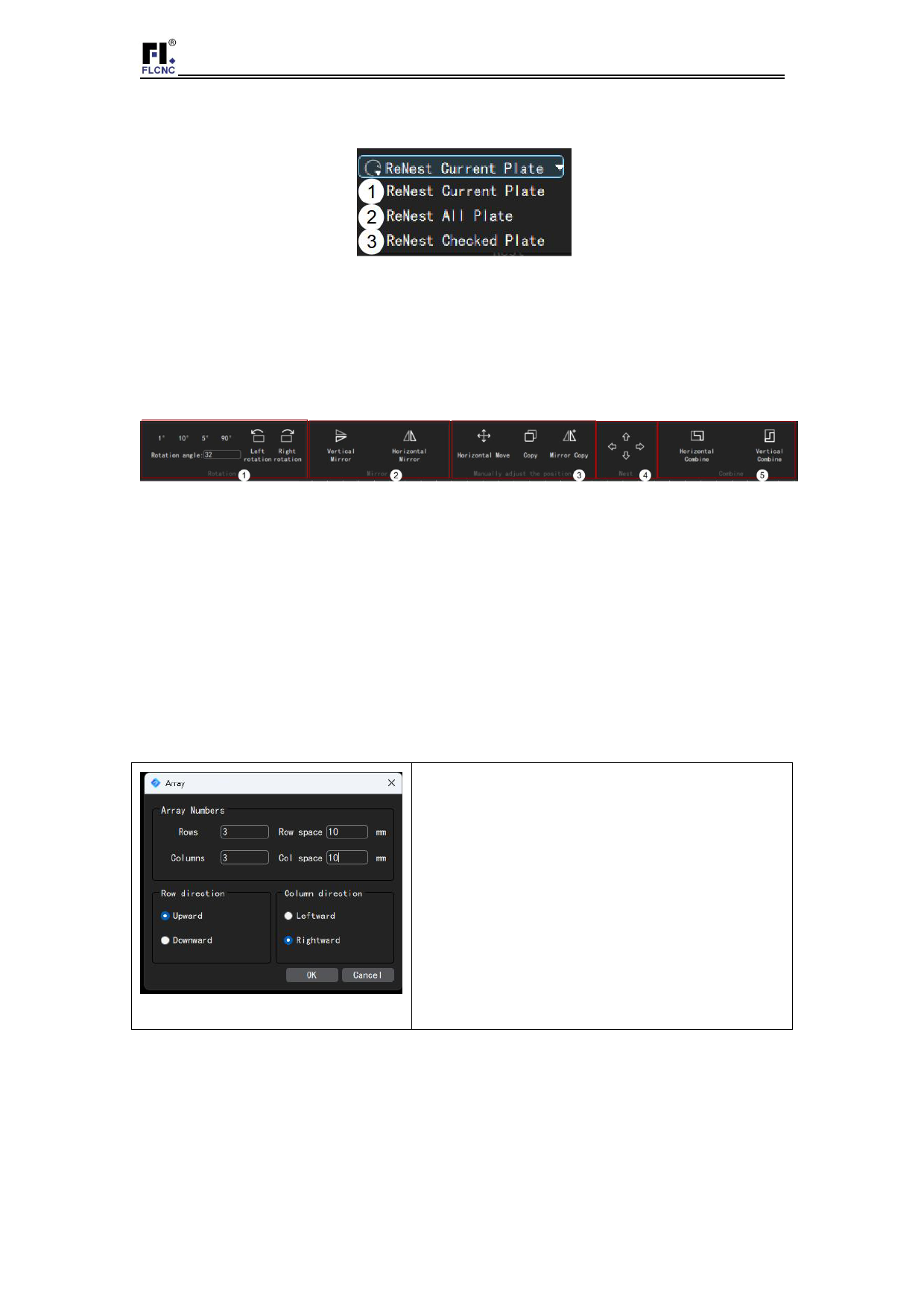

10.Resort to the current one
Shanghai Fangling Computer Software Co., LTD.
Tel: 021-34290970 Website: www.flcnc.com
（1）Reorganize the current: reformat the existing board;
（2）Rearrange all panels: Rearrange all panels in the panel list;
（3）Reorganize selected panels: Reorganizes the selected panels.
11.Component layout
The layout function supports rotating, mirroring, copying, moving, and repeating
the layout of a part that has already been laid out.
Rotation: Set the value of rotation Angle to accurately control the rotation Angle of
one or more selected parts;
Mirror: Perform vertical and horizontal mirror reversal on one or more selected parts;
Manual position adjustment: Perform move, copy, and mirror copy operations on one
or more selected parts;
Sampling: repeat the arrangement of one or more parts currently selected in the
specified direction until the plate area in that direction is filled;
Combination: copy one or more selected parts horizontally or vertically for layout;
12. array
Array graphics is a type of layout that replicates a specified number of graphic
objects in a specific direction from a specified part as the starting point.
rectangular array
Starting from the currently selected and
formatted part, the layout of the current part is
automatically arranged by setting the number of
rows, columns and array direction.
Note: The product of the number of rows and
columns is the number of layout parts generated.
Ensure that the number of available parts in the
part list is equal to or greater than this number,
otherwise the array will fail.
