8.1. Rotate and Move test
（Lite version does not support this feature）
“Rotary Marking” is performed according to the angle of rotation axis.
The parameters used to set and maintain the extension axis.
8-2

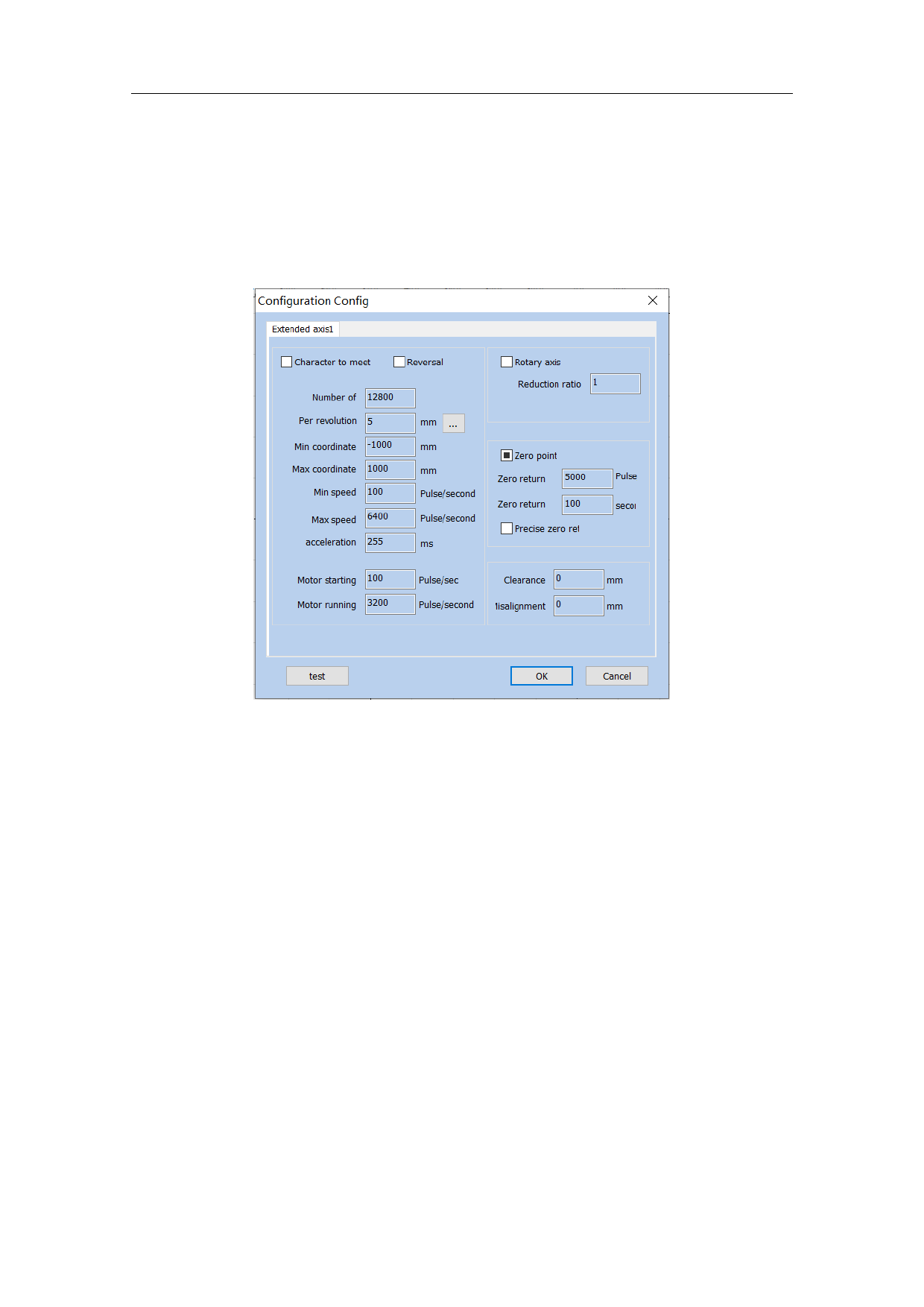

Figure 8-2 Rotation Configuration and Test
Configuration Parameters
1 Extended Axis 1
Print by Facing to Characters
Invert
Rotation Axis
Reduction Ratio
Pulses per Revolution
Distance per Revolution
-1000 Minimum Coordinates -1000 mm
1000 Maximum Coordinates 1000 mm
100/ Minimum Speed 100 pulses/second
