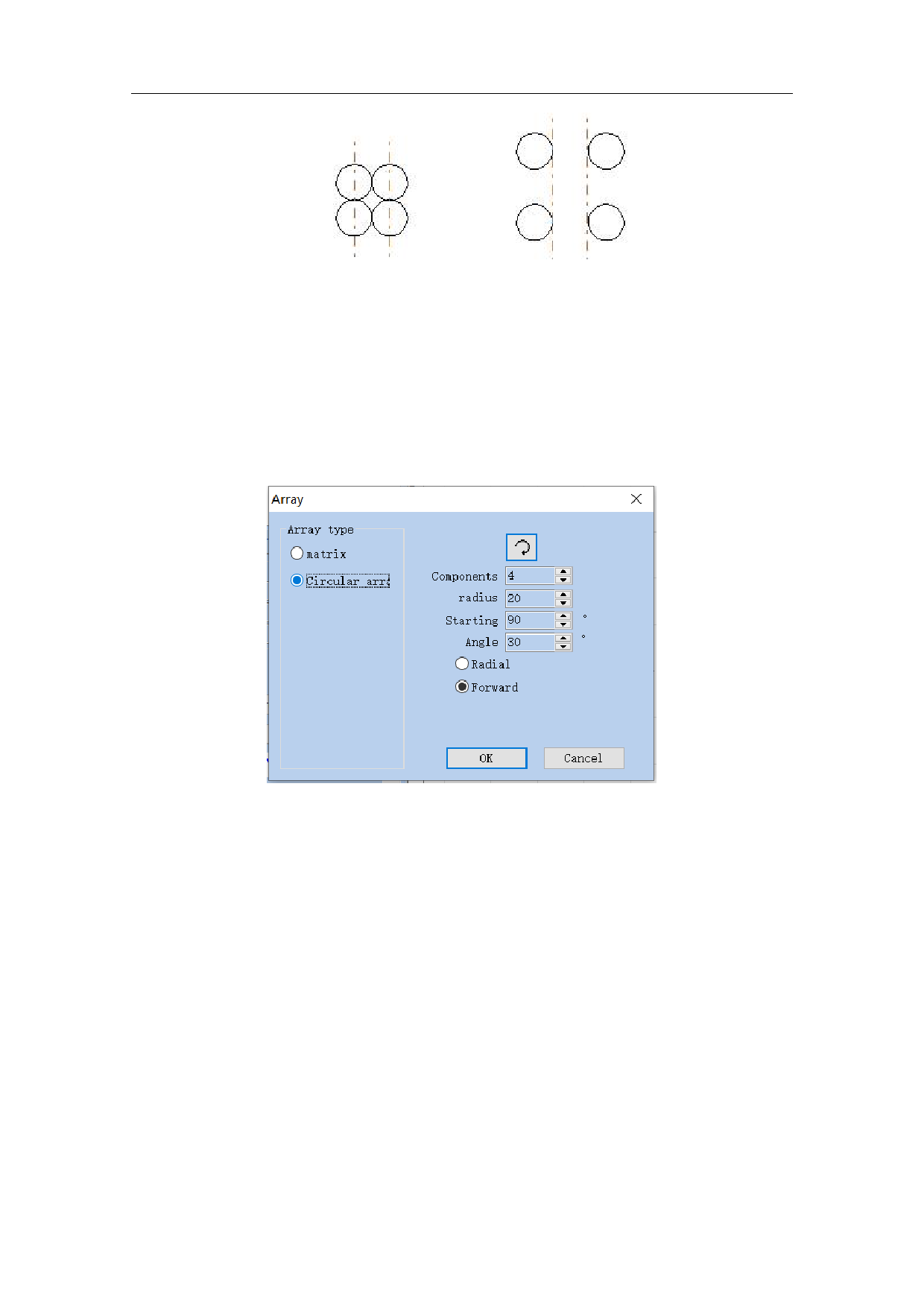

Fig. 5-3 (a) Calculate by Offset Distance (b)
Calculate by Graph offset Distance: The space of the graphs is calculated
by graph distance. (Fig. 5-3 (b))
If we select the array type of “Circle”, we can see the dialog box as shown in
Fig. 5-4:
Fig. 5-4 Array Dialog Box (Circle)
Array Type
Matrix
Circular Array
Array Number
Radius
90 Start Angle 90 degree
30 Angle Spacing 30 degree
Centripetal
120 / 217
    "
